Sharp LC-65LE643U FPTW User Manual

CONFIDENTIAL – DO NOT COPY
Page 9-1
File No. SG-0000239
Yes
N0
N0
N0
Yes
Yes
Yes
N0

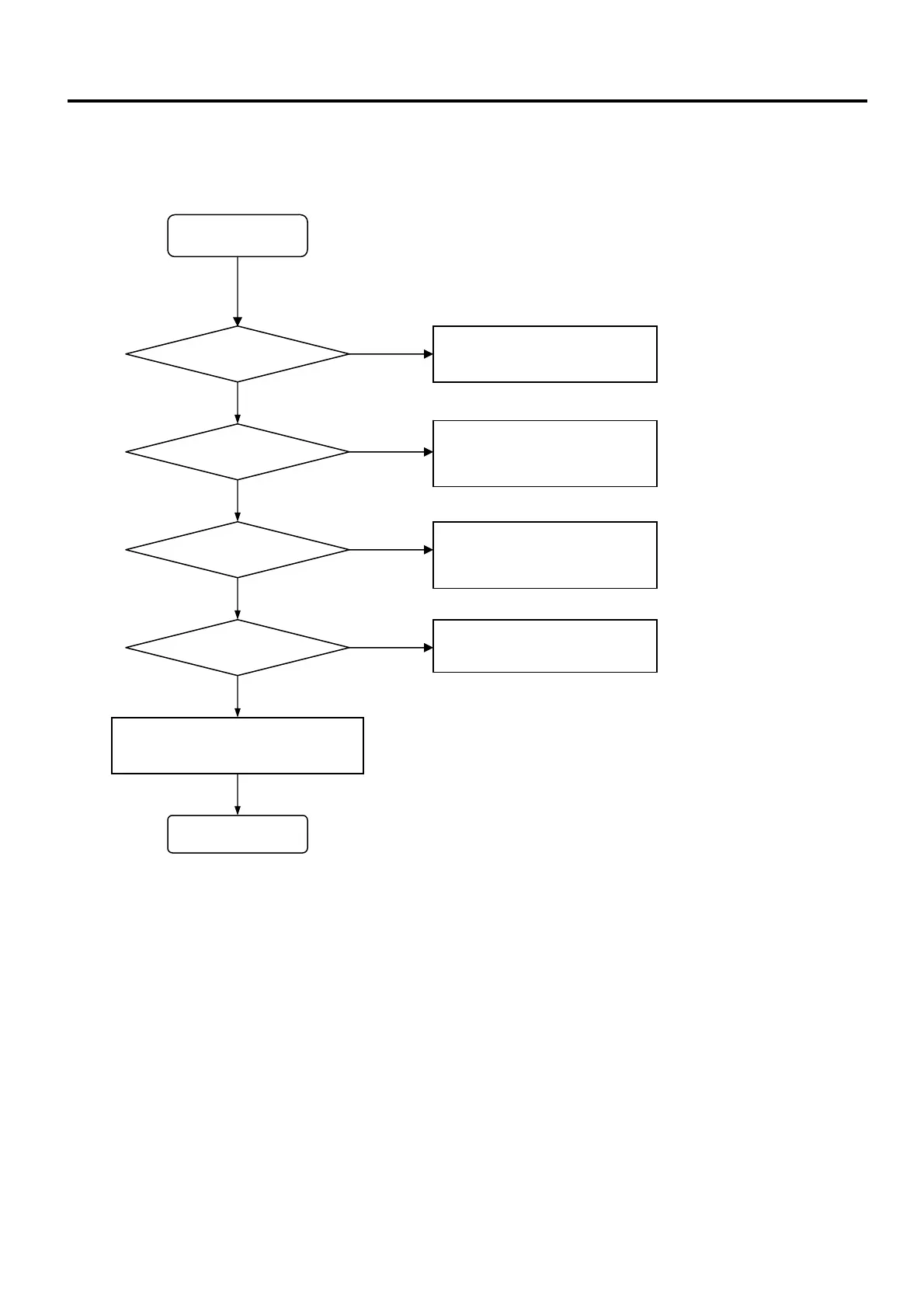

Chapter 9 Trouble shooting
(TV, COMPOSITE ,VIDEO ) IS NOT DISPLAY CORRECTLY
Start
Input signal good?
1. Check video
2. Check DVD player
U1 input correct?
1. Check VIDEO signal
2. Check signal between U1
(IF IN AV mode)
LVDS output correct?
1. Check power system U1 :
+3V3SB, +1.2V, +1.8V_DDR2
2. Check Y1’s frequence is OK?
1. Check JL1 , JL2 Connect is good?
2. Is panel working ok?
END
U1 output correct?
1. Check mini-LVDS cable
2. Check U1 clock (24MHz)
3. Check LVDS signal
