Chapter 3 On Screen Display
A. LED indicator display on the front

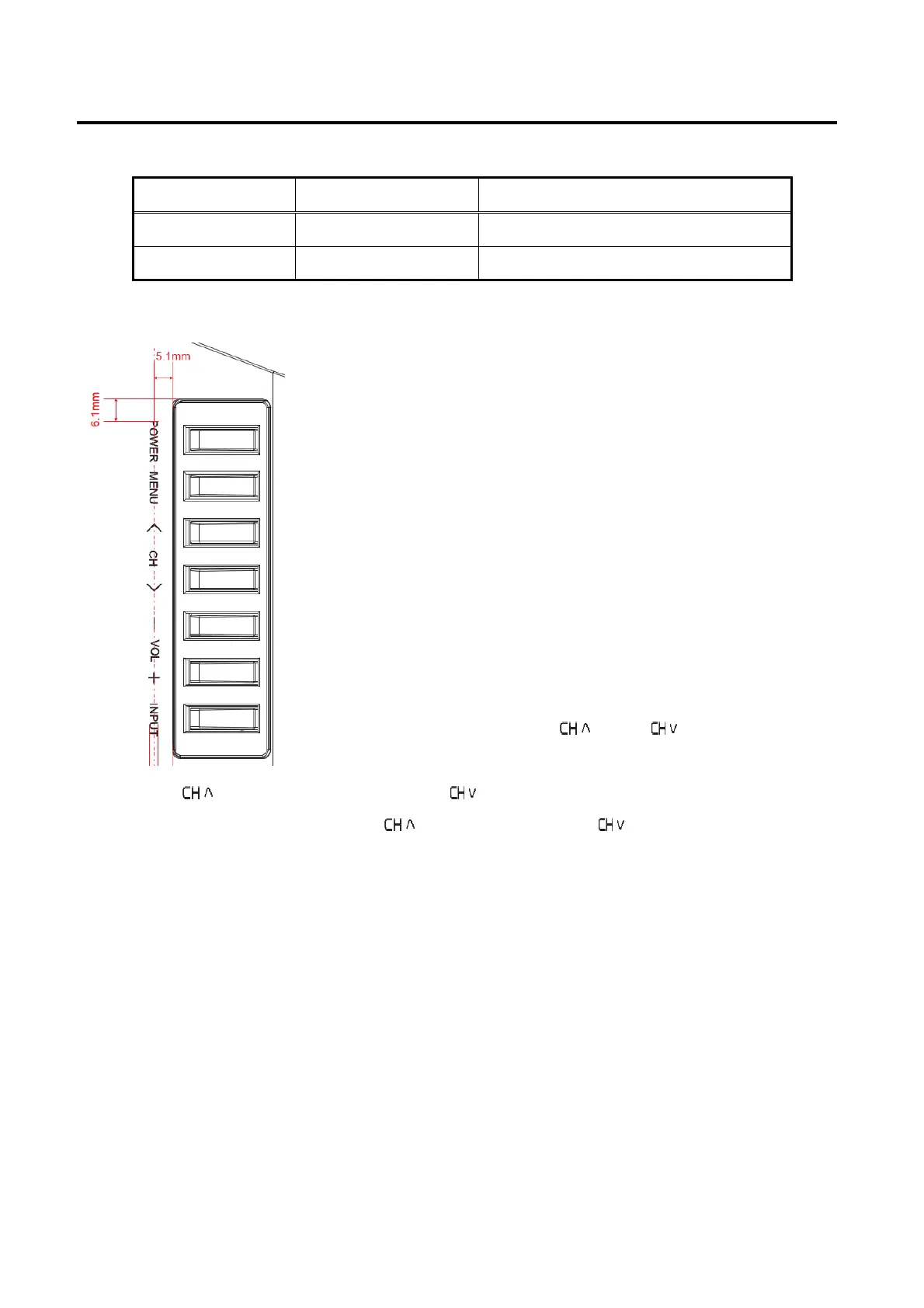

B. Specification and explanation of user control panel on the side
i. Power On
When power is off and the Side button is pressed,
upon press (not release) of the Side button, the TV is
immediately powered on. Long and short key presses
do not apply when power is off at the time of the key
press.
ii. MENU
Press MENU button to activate the OSD. Press this
button again to exit.
iii. Channel selection
By operating the and buttons, channel
should be selected. At the time, channel should increase with
button and decrease with button. When the “MENU” is activated, it
can be navigated up by
button and down by button..
iv. Volume Adjustment
By operating the VOL+ and VOL- buttons, volume should be available to
change from minimum to maximum. At the time, volume should increase with
VOL+ button and decrease with VOL- button, and volume shift should be
smooth.
When the OSD is activated, it can be navigated left and right by operating these
two buttons.
v. Input Change/Confirmation
This button allows the user to cycle through the input sources in the following
sequence: TV, AV/Component, HDMI 1, HDMI 2, HDMI_SIDE,
When the OSD is activated, the option can be confirmed pressing this button.
LED indicator Status Remark
Off AC power off By disconnecting the power cord
White Power on Default: off
