Sharp LC-70LE735X Aquos - Part names and functions; TV (front;side view); TV (rear view); Remote control unit

10

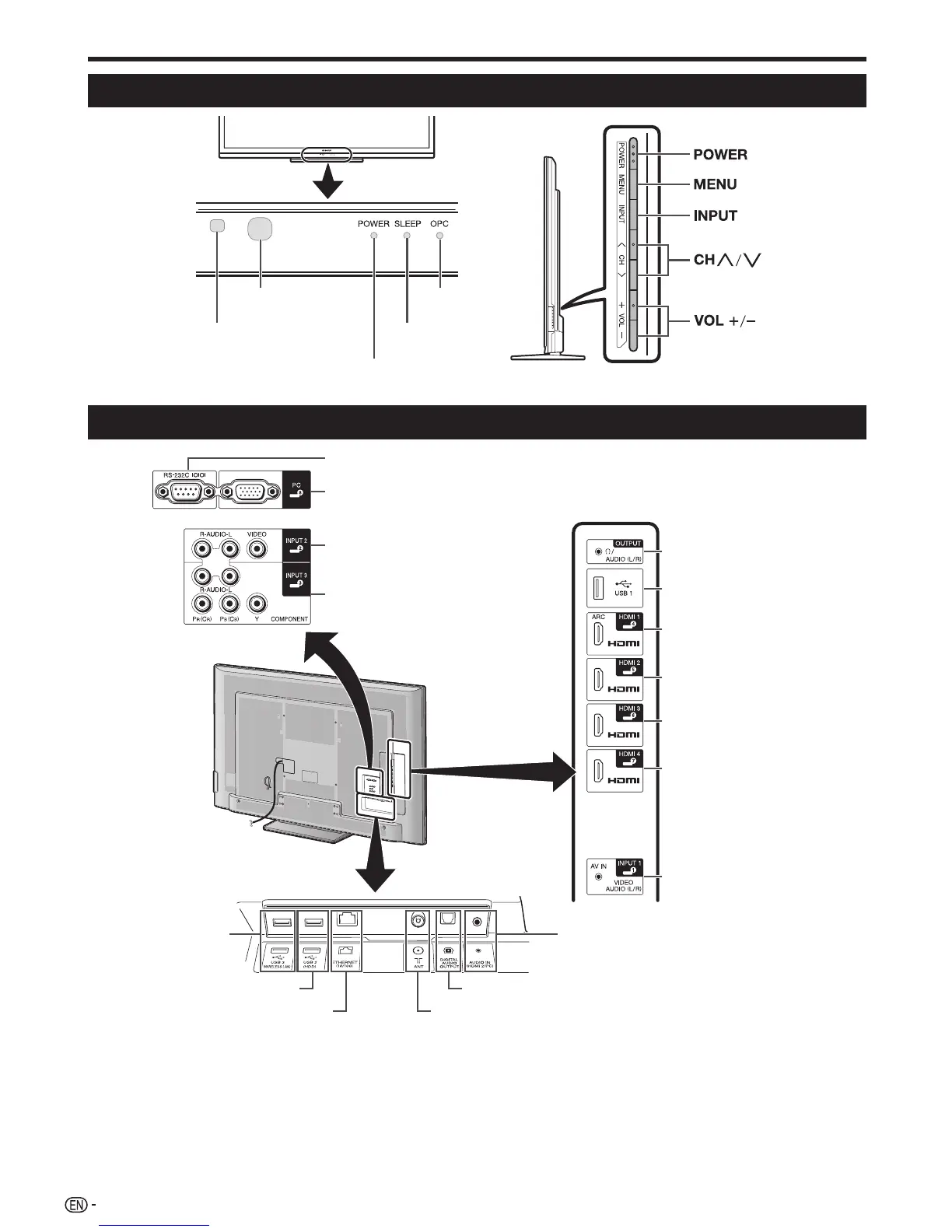

TV (front/side view)
OPC sensor*
1
Remote control sensor
OPC indicator
SLEEP indicator
POWER indicator
I
OPC: Optical Picture Control (Page 30)
TV (rear view)
RS-232C terminal
PC terminal
INPUT 2 (VIDEO/AUDIO (L/R))
terminal
INPUT 3 (Component/
AUDIO (L/R)) terminal
OUTPUT (Headphones/
AUDIO (L/R)) terminal
USB 1 port
HDMI 1 (HDMI/ARC)
terminal (INPUT 4)
HDMI 3 (HDMI) terminal
(INPUT 6)
HDMI 2 (HDMI) terminal
(INPUT 5)
HDMI 4 (HDMI) terminal
(INPUT 7)
INPUT 1 (AV IN) terminal
USB 2 (HDD) port
ETHERNET (10/100) terminal Antenna terminal
DIGITAL AUDIO OUTPUT terminal
AUDIO IN (HDMI 2/PC) jack*
1
USB 3
(WIRELESS LAN)
port
I
The HDMI 2 and PC terminals can both use the same audio input terminal (AUDIO IN (HDMI 2/PC)). However, the proper item must be selected in the
“Audio select” menu (refer to page 39 for details).
WARNING
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Do not set the volume at a high level. Hearing experts advise against extended listening at high volume levels.
Part names and functions
