[3] Precautions for assembly
1. Points to be checked and precautions when servicing the unit
Mount the main PWB Ass’y on the backlight chassis and check that the EMI-prevention parts are not peeled and twisted from the access holes. (The
EMI-prevention parts, conductive nonwoven fabric gaskets, must be seen from the access holes.)
[Countermeasure]

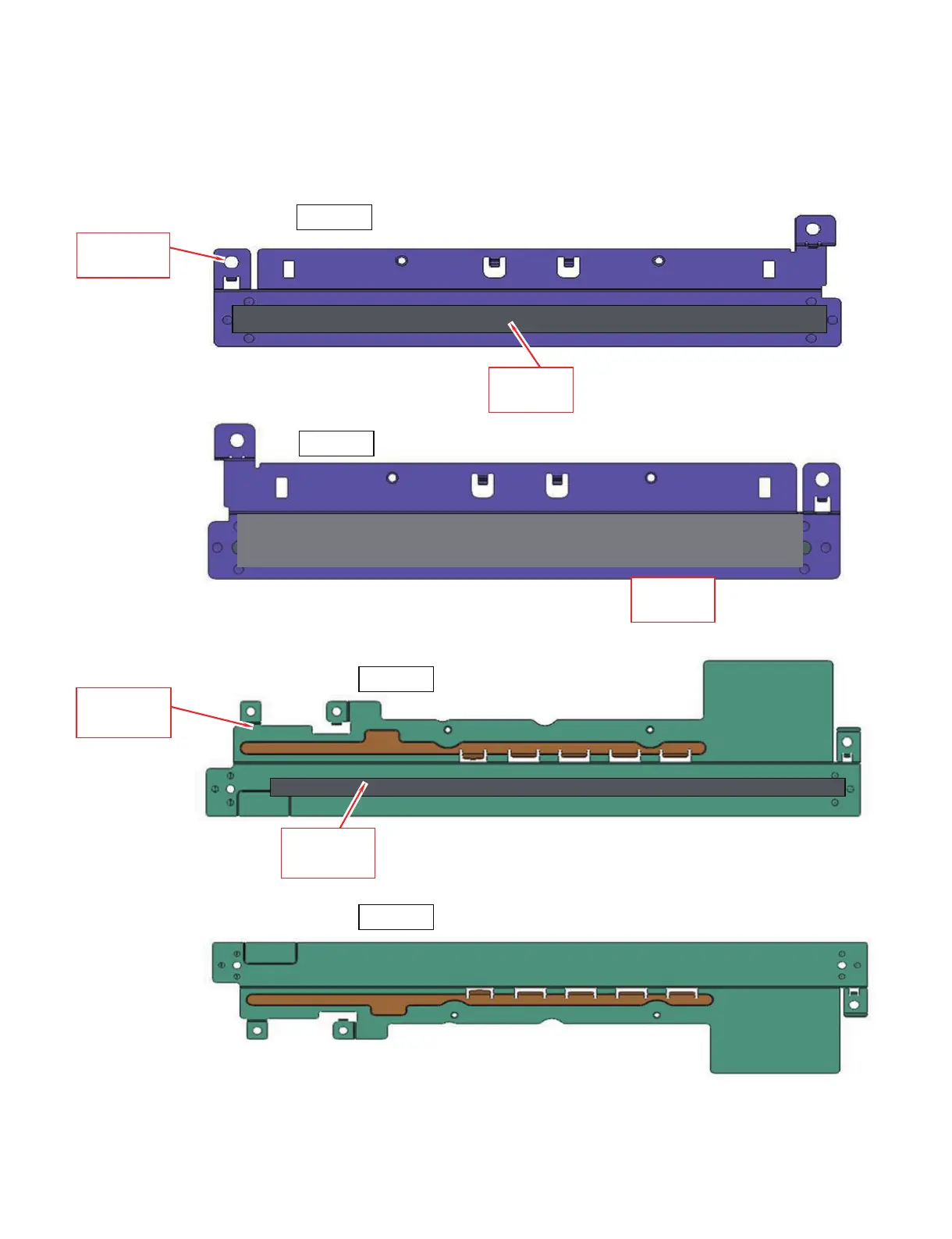

Attach the conductive nonwoven fabric gaskets on the shielded case on the main PWB.
(1) Prepare ***
LANGKD146WJFW
TE RM A NG BOTTOM
(2) Stick***
PSPAZC691WJZZ
CONDUCTR:8x180
(3) Stick***
HDECPA091WJZZ
DEC SHEET BTM
Back side
Front side
Back side
Front side
(2) Stick ***
PSPA Z C6 9 0WJZ Z
CONDUCTR:8x 255
(1) Prepare***
LANG KE051WJSA
TE RM A NG SIDE
