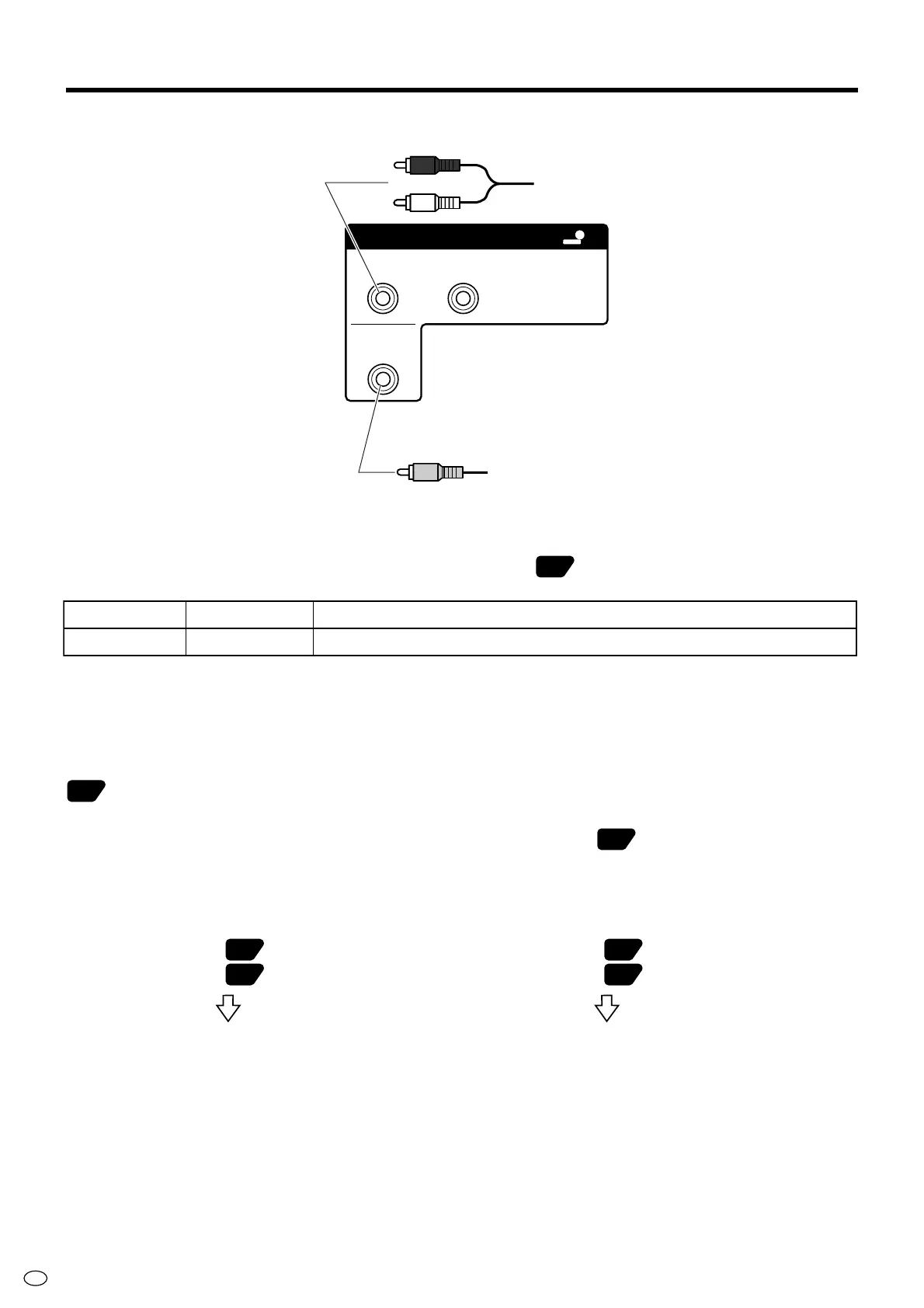

Connecting Peripheral Equipment (Continued)
INPUT2
INPUT 2 (INPUT/OUTPUT)
VIDEO
AUDIOR - - L
2
INPUT2
audio
Video
Terminal type
RCA
Compatible signals
NTSC (3.58/4.43), PAL, SECAM (*2)Video
■ INPUT2: Input or output can be selected for INPUT2. (*1) INPUT2 Select
This setting cannot be switched when INPUT2 is currently being displayed.
When this is set to “Output”, video signals input from the INPUT1 video input terminal are output. (*3)
An audio signal is output with this setting (i.e. the audio signal corresponding to the video currently
being displayed). (*4)
Related topic:
INPUT2 Select
*1 “Input” is factory preset value.
*2 “Auto” (automatic color system detection) is factory preset value.
Color System
*3 Outputs video from INPUT1, regardless of the currently displayed signal.
*4 If the “INPUT2 Select” is set to “Output”, audio output is as follows.
56
56
57
Example 1
Input Selection
: INPUT1
“Input Select”
: AV
Example 2
Input Selection
: INPUT3
“Input Select”
: RGB
31
54
31
54
INPUT2 video output: Video from INPUT1
INPUT2 audio output: Audio from INPUT1
INPUT2 video output: Video from INPUT1
INPUT2 audio output: Audio from INPUT3
