Sharp LC-M3700 - Connection and Installation; Connecting Peripheral Equipment

13
US
Introduction
Connection
and Installation
INPUT1

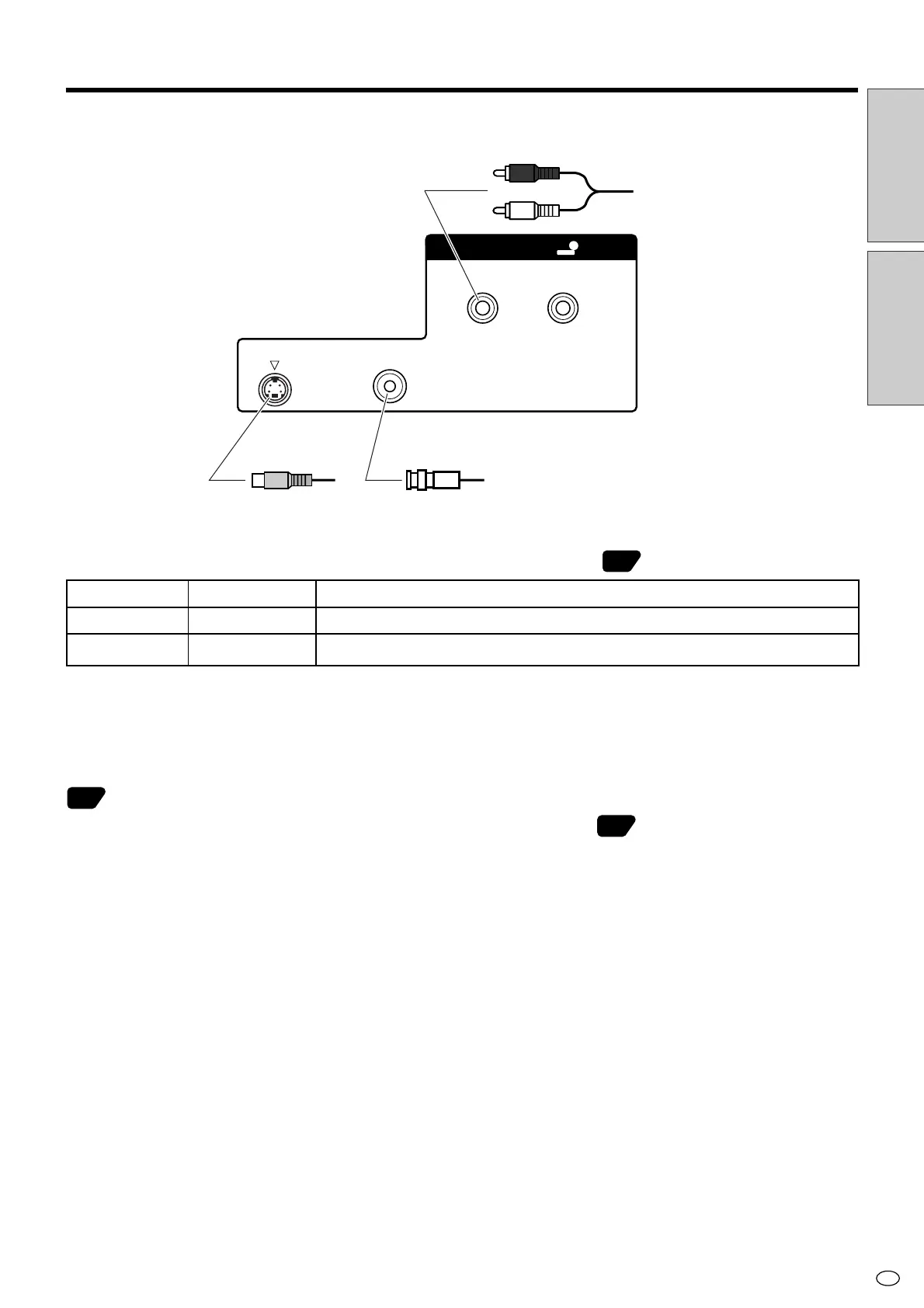

■ INPUT1: Terminals are provided for two types of video input signal. Input Select
No matter which video signal is selected, the system uses the signal input to the audio terminals for
audio.
Related topic:
Input Select
*1 “Auto” (automatic color system detection) is factory preset value.
Color System
54
54
57
INPUT 1
AUDIO
VIDEOS-VIDEO
R - - L
1
S-video
INPUT1
audio
Video
Connecting Peripheral Equipment
Terminal type
BNC
S terminal
Compatible signals
NTSC (3.58/4.43), PAL, SECAM (*1)
NTSC (3.58/4.43), PAL, SECAM (*1)
Video
S-video
