Terminal type
D-Sub15-pin
DVI-D
Compatible signals
VGA, SVGA, XGA, SXGA and others Appendix 1
In addition to ordinary Separate Sync (HD/VD) signals, the system is also
compatible with Composite Sync (Csync) and Sync On Green. (*1) (*2)
VGA, SVGA, XGA, SXGA and others Appendix 1
Analog
Digital
68
68
Connecting Peripheral Equipment (Continued)
56
■ PC: Terminals for two kinds of PC video input signal are available. Input Select
No matter which video signal is selected, the system uses the signal input to the audio terminals for
audio.
Related topic:
*1 Auto-detects Sync signal type.
*2 Sync signal presence is detected in the order: Separate Sync → Composite Sync → Sync On
Green. If for some reason neither Separate Sync nor Composite Sync is input, the system will
operate assuming that the signal is a Sync On Green signal (i.e. that the sync signal is contained in
the G signal of RGB), and this may result in an unstable image, depending on the video signal.
54

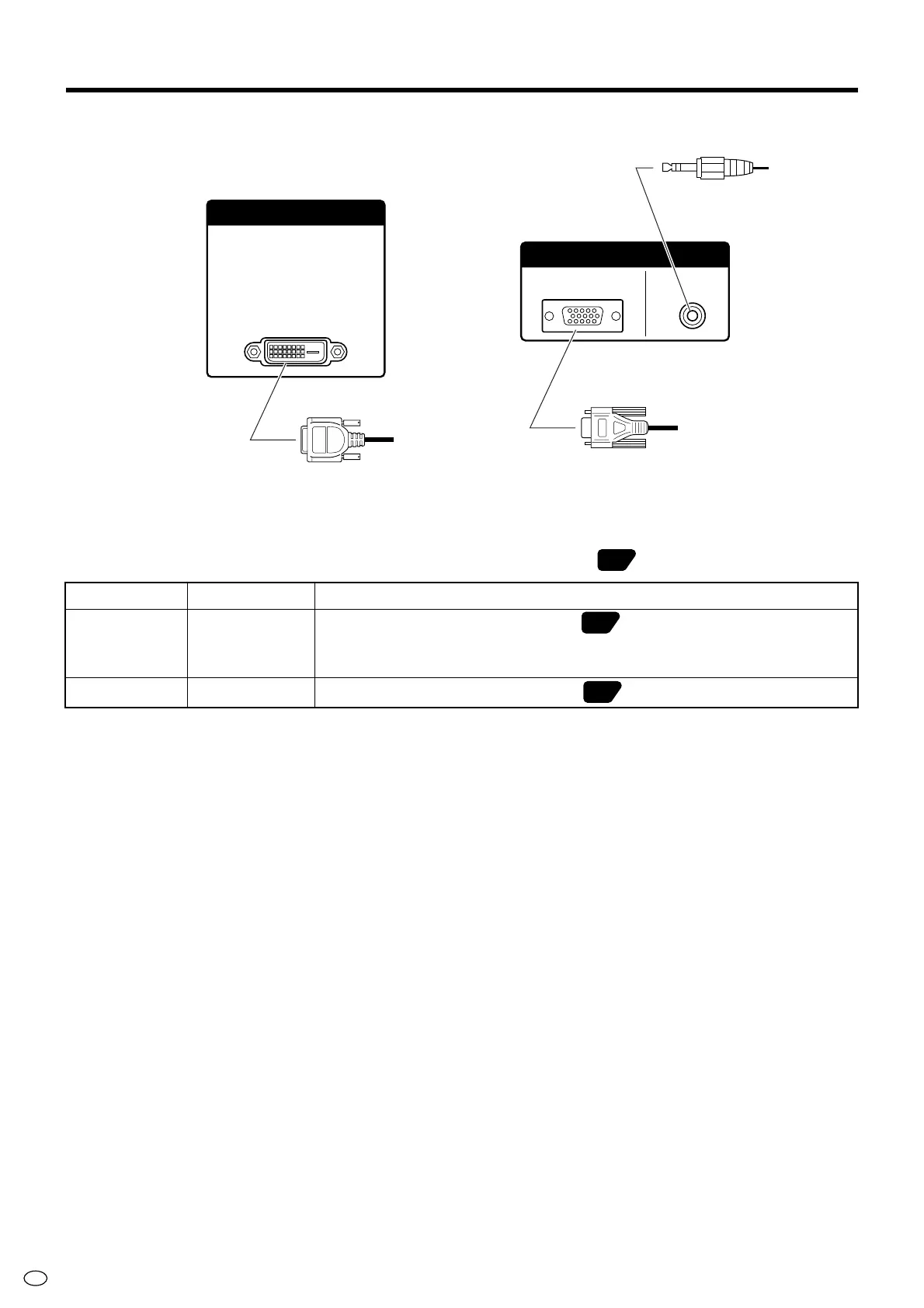

PC(DIGITAL)INPUT
PC (digital) video
PC(ANALOG)INPUT
AUDIO
PC (analog) video
PC audio
