Sharp LE650U User Manual

Appendix
Setting the TV on the Wall(Continue)

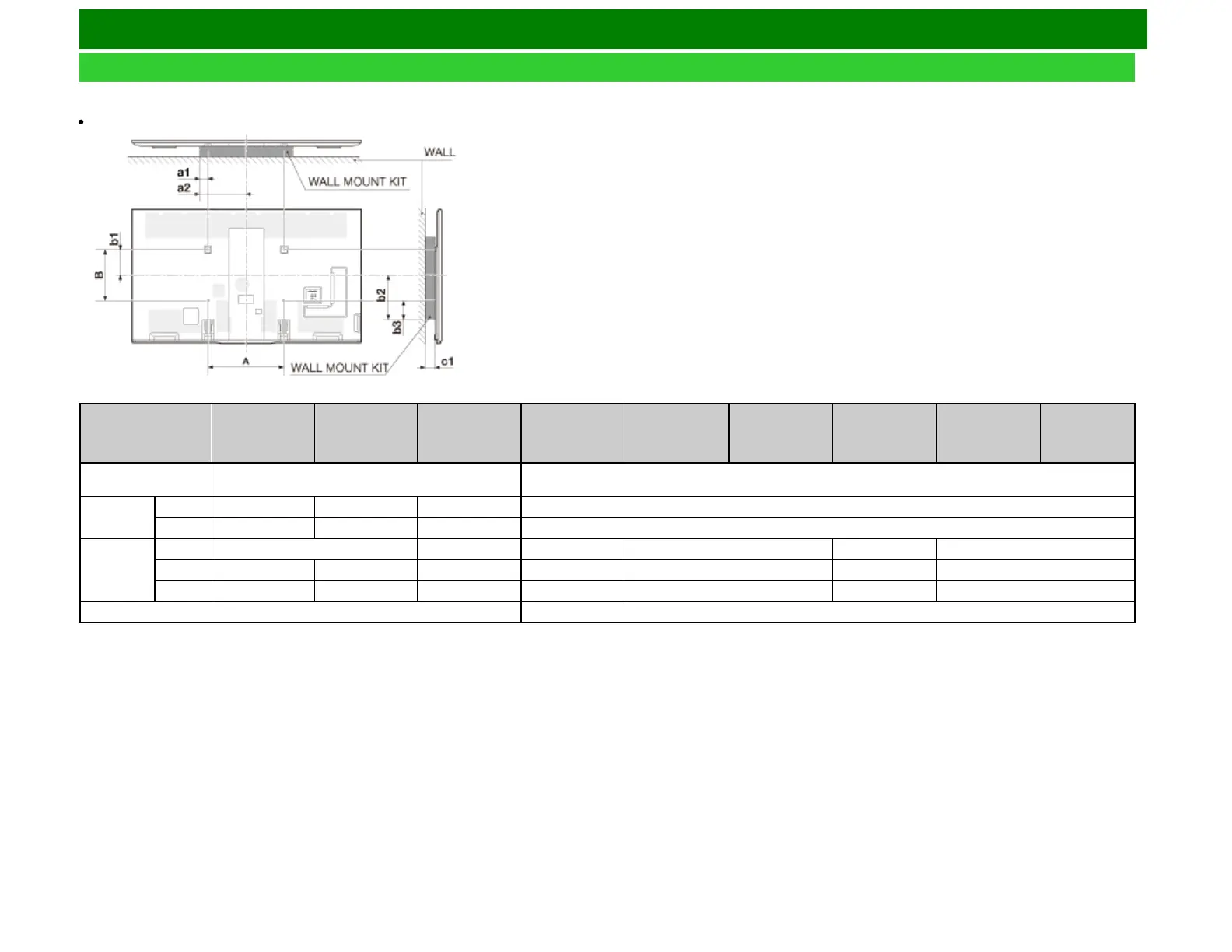

Wall Mount Kit Specifications
Standard dimensions for wall mount kits are shown below.
The illustration is based on the LC-80UQ17U model as an example.
LC-90LE657U
LC-80LE642U
LC-80UQ17U LC-80LE650U
LC-70UQ17U
LC-70TQ15U
LC-70UD1U
LC-70SQ17U
LC-70SQ15U
LC-70SQ10U
LC-70EQ10U
LC-70LE650U
LC-70C6500U
LC-60UQ17U
LC-60TQ15U
LC-60SQ17U
LC-60SQ15U
LC-60SQ10U
LC-60EQ10U
LC-60LE650U
LC-60C6500U
VESA screw
hole specs (A-B)
23 5/8 (600) - 15 3/4 (400) 15 3/4 (400) - 15 3/4(400)
Width
a1 1 37/64 (40) 2 61/64 (75) 1 37/64 (40) 2 61/64 (75)
a2 13 25/64 (340) 14 49/64 (375) 13 25/64 (340) 10 27/32 (275)
Height
b1 7 7/8 (200) 10 41/64 (270) 7 7/8 (200) 7 31/64 (190) 7 7/8 (200) 9 1/16 (230)
b2 14 49/64 (375) 13 19/32 (345) 11 1/32 (280) 14 11/64 (360) 10 41/64 (270) 12 39/64 (320) 9 1/16 (230)
b3 6 57/64 (175) 5 23/32 (145) 5 59/64 (150) 6 5/16 (160) 2 3/8 (60) 4 47/64 (120) 2 3/8 (60)
c1 3 5/32 (80) 2 49/64 (70)
ENG 11-4
a1: Maximum distance from the mounting hole
a2: Maximum distance from the TV's center
b1: Distance between the TV's center and the mounting hole
b2: Maximum distance from the TV's center
b3: Maximum distance from the mounting hole
c1: Minimum gap
