MX-M232D
SPACE REQUIREMENT AND PLANNING GUIDE
MX-M232D Main Unit
(with standard RSPF)
MX-M232D + AR-D36 MX-M232D + AR-D37
G
H
MX-M232D
Main Unit
A
B
E
F
C
D

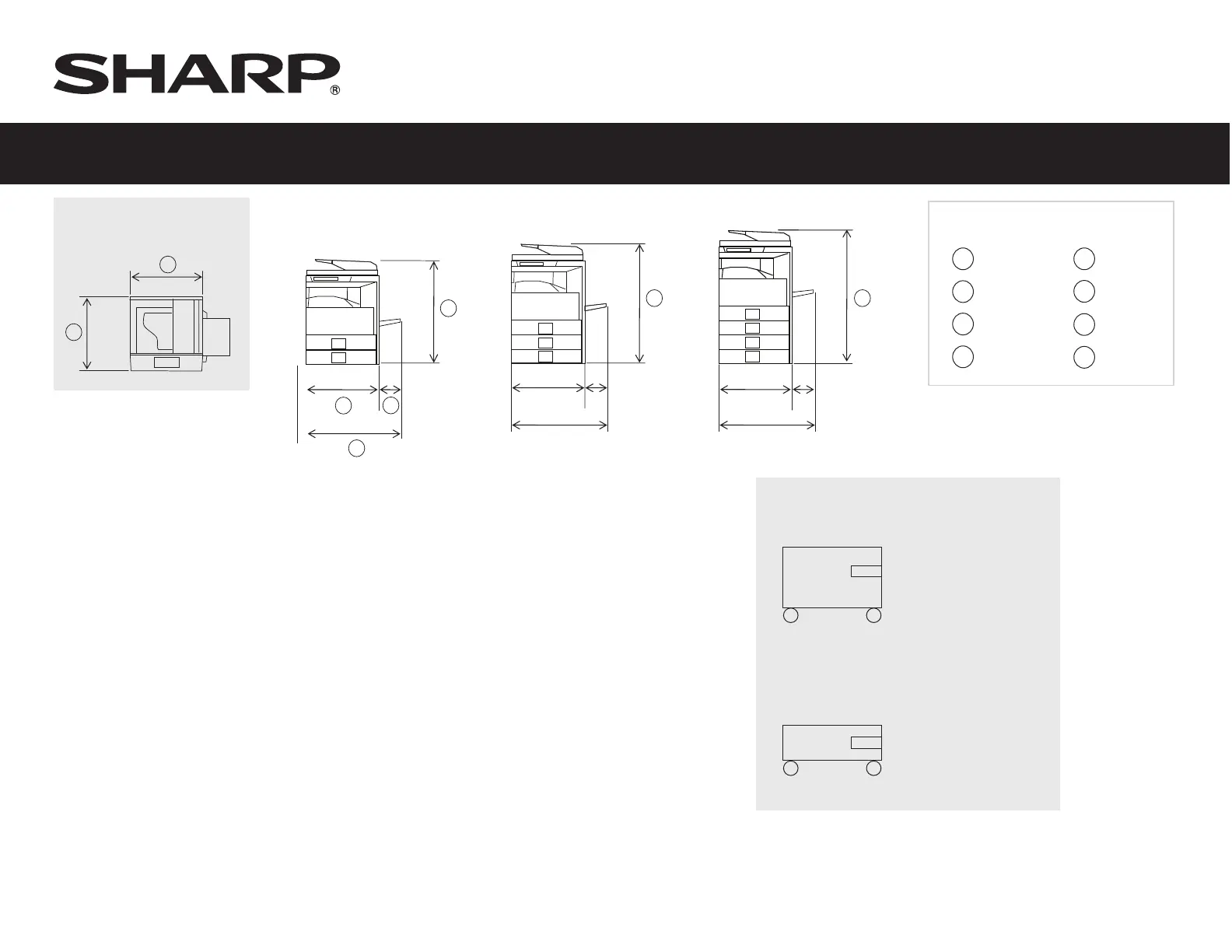

MEASUREMENTS
23.50″
21.50″
23.50″
23.50″
11.75″
35.25″
28.5″
30.25″
E
F
G
H
A
B
C
D
Plan ahead to make sure your installation is a great success!
Remember to check the latest information on these products and confirm
that the following items are available prior to installation.
□
Verify power dedication and check for power stability. The MX-M232D Multifunction Document Systems
require AC 120V, 60Hz, 15 Amps power source (machine draws 12 Amps).
□ Confirm that you have the latest firmware available to upgrade the MX-M232D Multifunction Document
Systems immediately.
□ Some accessories require a product key for operation.You should obtain the accessory Application Code,
machine’s serial number and register online prior to arrival.
□ Make sure the customer has enough supplies on-hand to do a large rush job. After-hours printing
and/or holiday work may take place immediately following an installation.
MX-235NT Toner
MX-235NV Developer
AR-205DR Drum
□ Check to see if My Sharp™ online training is set up for the end-user.
Approximately
24″ W x 19.25″ D x 20″ H
Approximately
24″ W x 19.25″ D x 12.25″ H
Deluxe High
- AR-55ABDH
Deluxe Low - AR-55ABDL
