Sharp MZ-80B User Manual

37

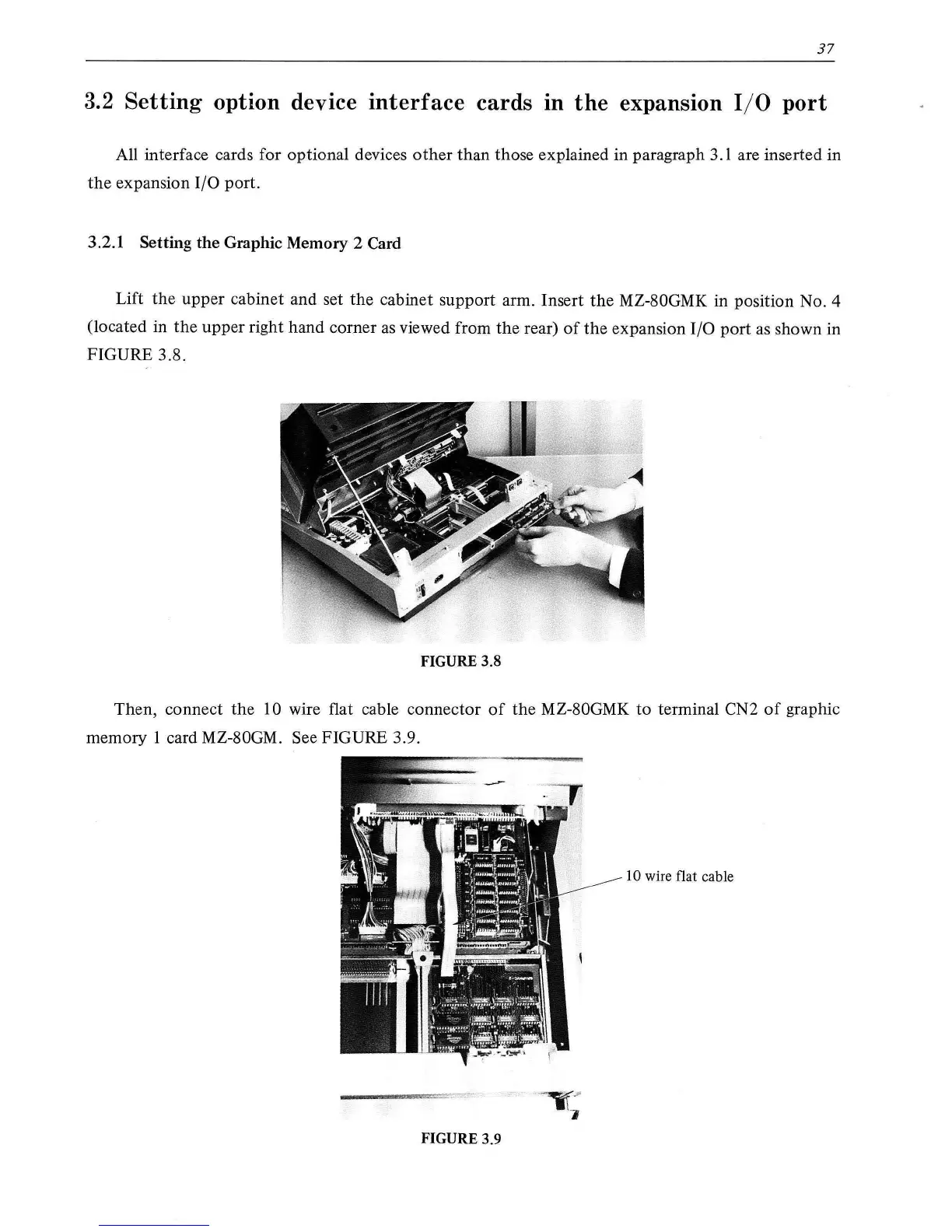

3.2 Setting option device interface cards in the expansiOn 1/ 0 port
All interface cards for optional devices other than those explained in paragraph 3.1 are inserted in
the expansion I/0 port.
3.2.1
Setting the Graphic Memory 2 Card
Lift
the upper cabinet and set the cabinet support arm. Insert the MZ-80GMK in position No. 4
(located in
the upper right hand corner as viewed from the rear) of the expansion I/0 port as shown in
FIGURE 3.8.
FIGURE 3.8
Then, connect the 10 wire flat cable connector of the MZ-80GMK to terminal CN2 of graphic
memory 1 card MZ-80GM. See FIGURE 3.9.
10 wire flat cable
FIGURE 3.9
