48

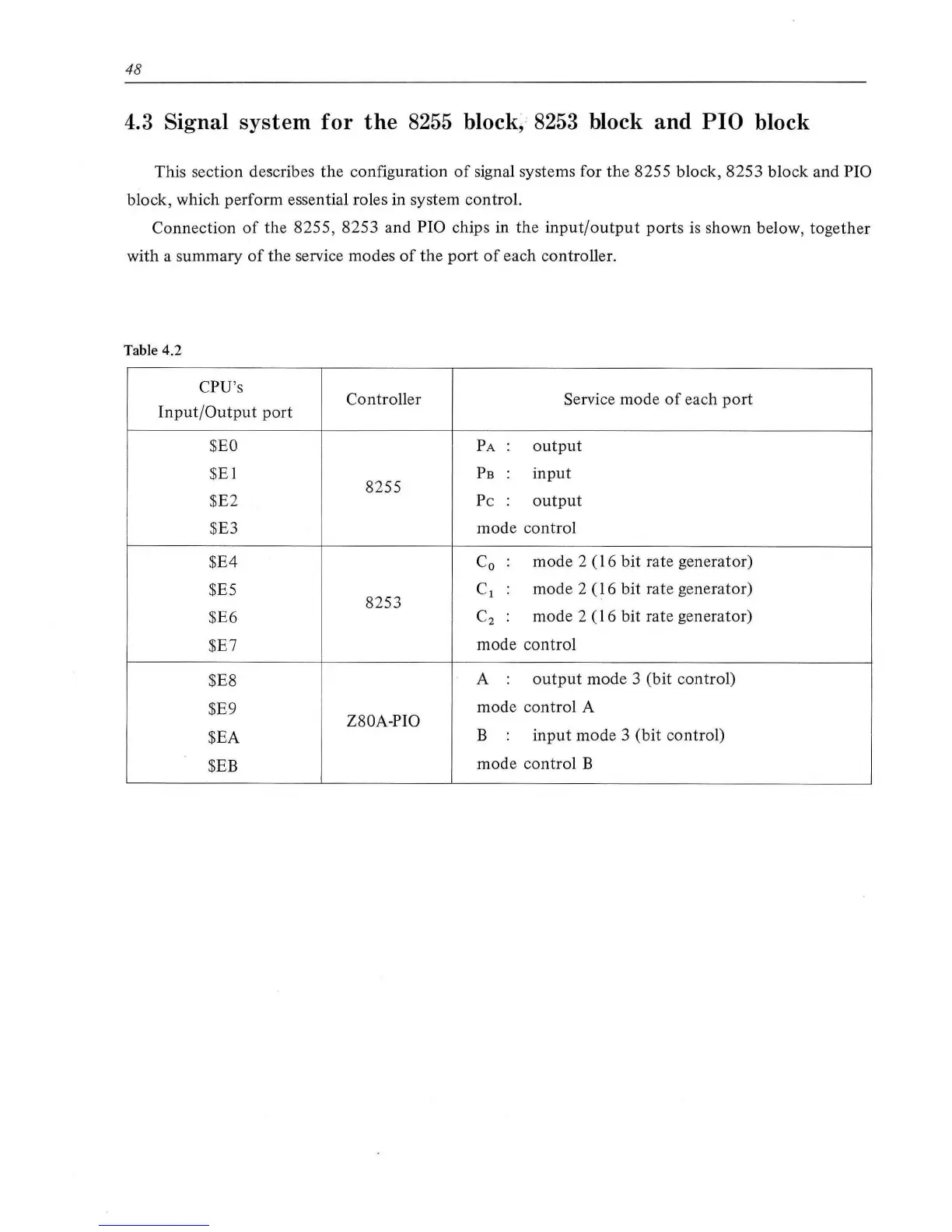

4.3 Signal
system
for the 8255 block; 8253 block and PIO block
This section describes
the
configuration
of
signal systems for
the
8255 block,
8253
block and PIO
block, which perform essential roles in system control.
Connection
of
the 8255, 8253 and PIO chips in
the
input/output
ports
is
shown below, together
with a summary
of
the
service modes
of
the
port
of
each controller.
Table 4.2
CPU's
Input
/
Output
port
Controller Service mode
of
each
port
$
EO
PA
output
$
El
PB
input
8255
$E2
Pc
output
$E3
mode control
$E4
Co
mode 2 (16 bit rate generator)
$E5
8253
cl
mode 2 (16 bit rate generator)
$E6
Cz
mode 2 ( 16 bit rate generator)
$E7
mode control
$E8
A
output
mode 3 (bit control)
$E9
mode control A
Z80A-PIO
$EA
B
input
mode 3 (bit control)
$EB
mode control B
