Part Names and Functions
Numbers in Z refer to the main pages in this operation manual where the
topic is explained.
2
45 6
3
7 8
9
1
11
12
13
15
14
10
16
17
18
19
2
45 6
3
7 8
9
1
11
12
13
15
14
10
16
17
18
19

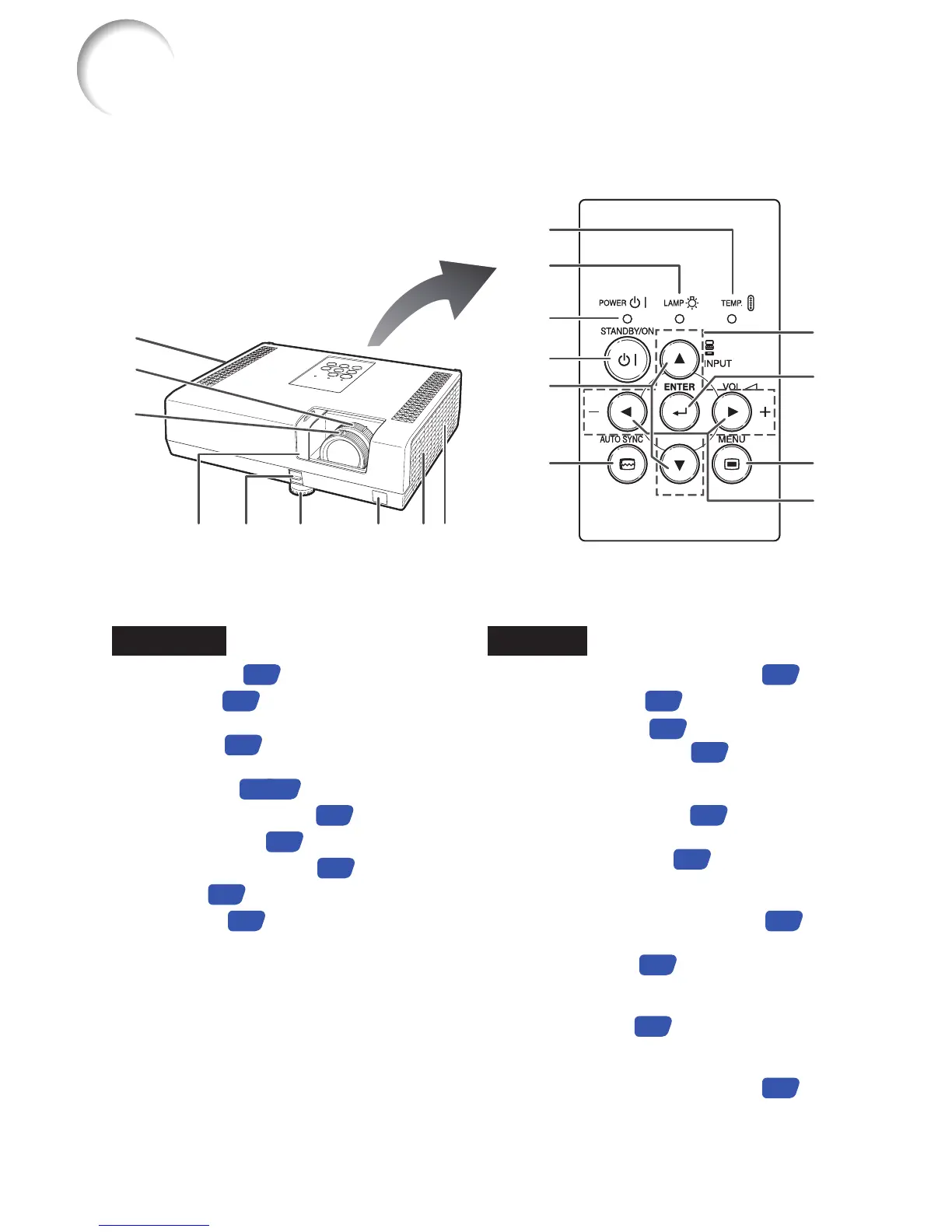

Front View
1 Exhaust vent
53
2 Zoom ring
27
For enlarging/reducing the picture.
3 Focus ring
26
For adjusting the focus.
4 Lens shutter
25, 29
5 HEIGHT ADJUST lever
27
6 Adjustment foot
27
7 Remote control sensor
15
8 Speaker
49
9 Intake vent
53
Top View
10 Temperature warning indicator
54
11 Lamp indicator
54
12 Power indicator
54
13 STANDBY/ON button
25
For turning the power on and putting the
projector into Standby mode.
14 INPUT buttons (P/R)
29
For switching Input mode.
15 AUTO SYNC button
33
For automatically adjusting images when
connected to a computer.
16 Adjustment buttons (P/R/O/Q)
38
For selecting menu items.
17 ENTER button
38
For setting items selected or adjusted on
the menu.
18 MENU button
38
For displaying adjustment and setting
screens.
19 VOL (Volume) buttons (–O/Q+)
29
For adjusting the speaker sound level.
