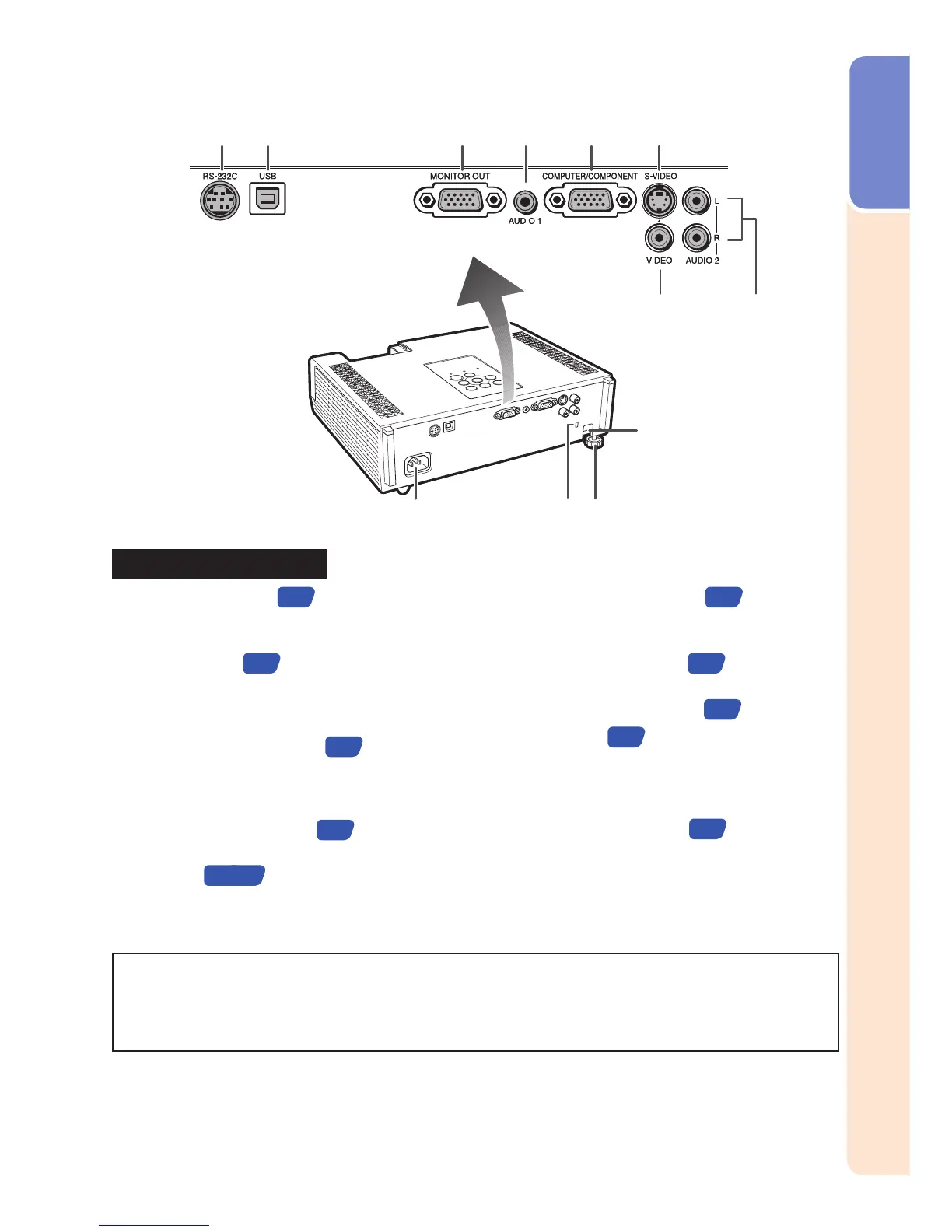

Rear View (Terminals)
1 RS-232C terminal
24
Terminal for controlling the projector using a
computer.
2 USB terminal
34
Terminal connecting with the USB terminal
on the computer for using the supplied
remote control as the computer mouse.
3 MONITOR OUT terminal
23
(Output terminal for computer RGB and
component signals)
Terminal for connecting a monitor.
4 AUDIO 1 input terminal
23
5 COMPUTER/COMPONENT input
terminal
21, 22
Terminal for computer RGB and component
signals.
6 S-VIDEO input terminal
22
Terminal for connecting video equipment
with an S-video terminal.
7 VIDEO input terminal
22
Terminal for connecting video equipment.
8 AUDIO 2 input terminal
23
9 AC socket
24
Connect the supplied power cord.
10 Kensington Security Standard
connector
11 Rear adjustment foot
27
12 Security bar
Using the Kensington Lock
This projector has a Kensington Security Standard connector for use with a Kensington
MicroSaver Security System. Refer to the information that came with the system for
instructions on how to use it to secure the projector.
•
