9
21
/32 (245)
3
45
/64 (94)
5
/8
(15.5)
1
7
/8 (47.6)
12
3
/32 (307)
3
25
/64 (86)
4
3
/64 (102.5)
4
1
/16 (103)
5
3
/32 (129) 4
31
/32 (126)
M4
M4 M4
2
5
/32
(54.5)
1
61
/64
(49.5)
3
5
/32 (80)
1
23
/32 (43.5)
1
1
/4
(31.5)
13
/64 (5)

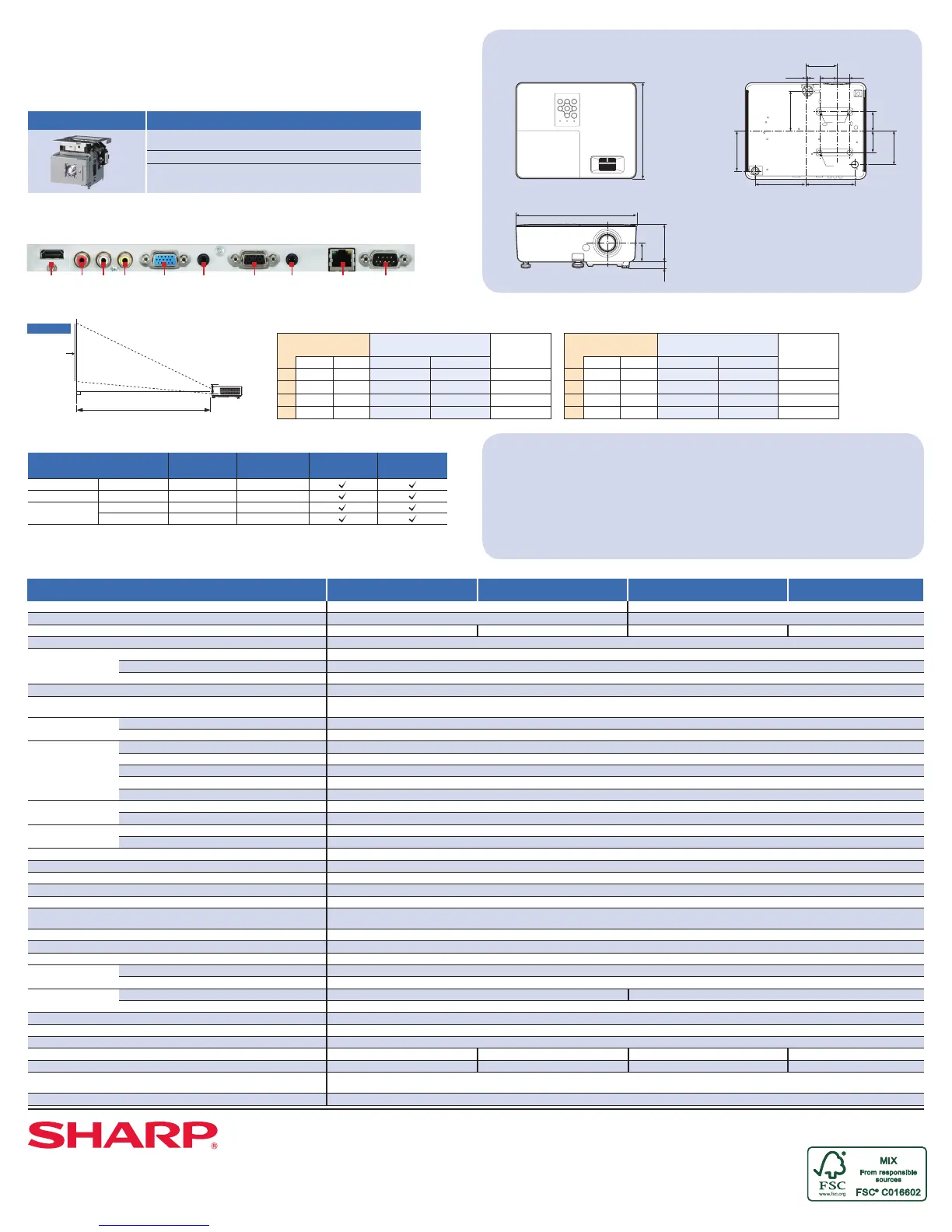

Dimensions
Top Back
Front
Rear Terminals
HDMI Right Left
Audio 2
Video Audio 1 Audio
Out
LAN RS-232CComputer
Component 1
Computer
Component 2
Monitor Out
PG-LW3500/PG-LW3000
PG-LX3500/PG-LX3000
Models PG-LW3500 PG-LW3000 PG-LX3500 PG-LX3000
Display devices 0.65" DLP
®
chip x 1 0.55" DLP chip x 1
Resolution WXGA (1,280 x 800) XGA (1,024 x 768)
Brightness 3,500 lumens 3,000 lumens 3,500 lumens 3,000 lumens
Contrast ratio 2,000:1
Lens F number F 2.5 to 2.7
Zoom Manual, x1.2 (f = 21.8 to 25.6 mm)
Focus Manual
Picture size 40" (102 cm) to 300" (762 cm)
Projection distance 40": 1.3 to 1.6 m, 100": 3.3 to 4.0 m, 300": 10.0 to 12.0m 40": 1.6 to 1.9 m,
100": 3.9 to 4.7 m, 300": 11.8 to 14.2m
Input signals Computer RGB UXGA*, WSXGA+*, SXGA+, SXGA, WXGA+*, WXGA, XGA, SVGA, VGA Mac 21", Mac 19", Mac 16", Mac 13" [* Analog only ]
DTV 1080P, 1080I, 1035I, 720P, 576P, 576I, 540P, 480P, 480I
Input terminals HDMI x1
Computer / Component (mini D-sub 15-pin) x2
Composite Video (RCA) x1
Audio (ø3.5-mm stereo minijack) x1
Audio (RCA) x1 (L/R)
Output terminals Computer / Component (mini D-sub 15-pin) 1 (Shared with computer / component input 2, switchable)
Audio (ø3.5-mm stereo minijack) 1 (variable audio output)
Control terminal LAN (RJ-45) x1
RS-232C (D-sub 9-pin) x1
Horizontal frequency 15 to 110 kHz
Vertical frequency 45 to 85 Hz
Audio system 2W (Mono)
Fan noise Eco+Quiet off / Eco+Quiet On 39 dB / 31 dB
Projection lamp 250 W
On-screen display lnguages English, German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Russian, Polish,
Hungarian, Turkish, Arabic, Persian, Vietnamese, simplifi ed Chinese, Korean, Japanese
Rated voltage AC100 to 240 V
Rated frequency 50 / 60 Hz
Input current 3.1 A
Power consumption Eco+Quiet Off 312W with AC 100V, 306W with AC 240V
Eco+Quiet On 218W with AC 100V, 218W with AC 240V
Standby mode Quick Start 4.85W with AC 100V, 5.34W with AC 240V 4.47W with AC 100V, 4.99W with AC 240V
Eco 0.35W with AC 100V, 0.78W with AC 240V
Operation temperature 41°F to 95°F (5°C to 35°C)
Cabinet Plastic
Dimensions (main body only) W x H x D 12-3/32" × 3-45/64" × 9-21/32" (307 × 94 × 245 mm)
Weight (approx.) 5.7 lbs. (2.6kg) 5.5 lbs. (2.5kg) 5.7 lbs. (2.6kg) 5.5 lbs. (2.5kg)
UPC 074000374324 074000374317 074000374300 074000374294
Supplied accessories Remote control, two LR03 (AAA) batteries, power cord (6' (1.8 m)),
RGB cable (6' (1.8m)), Initial setup guide, CD-ROM
Limited warranty 3 Years Parts and Labor including 3 Years “ER” 24-hour Turnaround Express Repair support. (90 day warranty on user-replaceable projection lamp.)
Specifi cations
Optional Accessories
Lamp
Ceiling Mounts
AN-XRCM30 Ceiling Mount Bracket
AN-EP101B Extension Tube
AN-JT200 Angle Mount Joint
(for use with ceiling mount)
NOTE: Some of the optional accessories may not be available depending on the region. Please check with your
nearest Sharp Authorized Projector Dealer or Service Center.
Screen Size and Projection Distance
Side View
90°
Lens centre
L
Screen
38' 9''
25' 10''
12' 11''
5' 2''
180''
120''
60''
24''
240''
160''
80''
32''
46' 5''
30' 11''
15' 6''
6' 2''
Distance from
the lens center
to the bottom
of the image [H]
Projection distance [L]Picture size
Diag. Width Height Minimum [L1] Maximum [L2]
6 23/32''
4 31/64'
2 15/64'
57/64''
300''
200''
100''
40''
32' 9''
21' 10''
10' 11''
4' 4''
159''
106''
53''
21''
254''
170''
85''
34''
39' 6''
26' 4''
13' 2''
5' 3''
Distance from
the lens center
to the bottom
of the image [H]
Projection distance [L]Picture size
Diag. Width Height Minimum [L1] Maximum [L2]
2 37/64''
1 23/32''
55/64''
11/32''
300''
200''
100''
40''
PG-LX3000/PG-LX3500 4:3 Signal Input (Normal Mode)PG-LW3000/PG-LW3500 16:10 Signal Input (Normal Mode)
H
3D Supported Signals
*1 Only the field sequential signal is supported. HDMI 3D is not supported.
*2 PG-LW3000 and PG-LW3500 only. *3 Reduced blanking.
Signal
Vertical frequency
[Hz]
Horizontal
frequency
[kHz]
Digital Support*
1
Analog Support
77.1
98.6
92.6
101.6
120
120
120
120*
3
800 x 600
1,024 x 768
1,280 x 720
1,280 x 800
SVGA
XGA
WXGA*
2
Precautions on Viewing Stereoscopic 3D
• The sense of three-dimensionality may vary between individuals.
• Viewing stereoscopic 3D may cause discomfort or eye strain.
• For protection of proper eye development, children should avoid viewing stereoscopic 3D.
• Avoid viewing stereoscopic 3D if you have a pre-existing oversensitivity to light, sleep
disorder, heart disease or are pregnant, in poor health, feeling unwell or inebriated.
• Read the operation manual carefully to ensure viewing stereoscopic 3D with safety
and comfort.
