PN-465U OUTLINE OF THE PRODUCT, NOMENCLATURE AND FUNCTION
1 – 2
*1 Displays a reduced image.
* All are compliant only with non-interlaced.
* Depending on the connected PC, images may not be displayed
properly even if the compatible signal described above is input.
* The frequency values for the Sun Ultra Series are reference values.
A separate conversion adapter (commercially available) may be
required for connecting the monitor to the Sun Ultra Series.

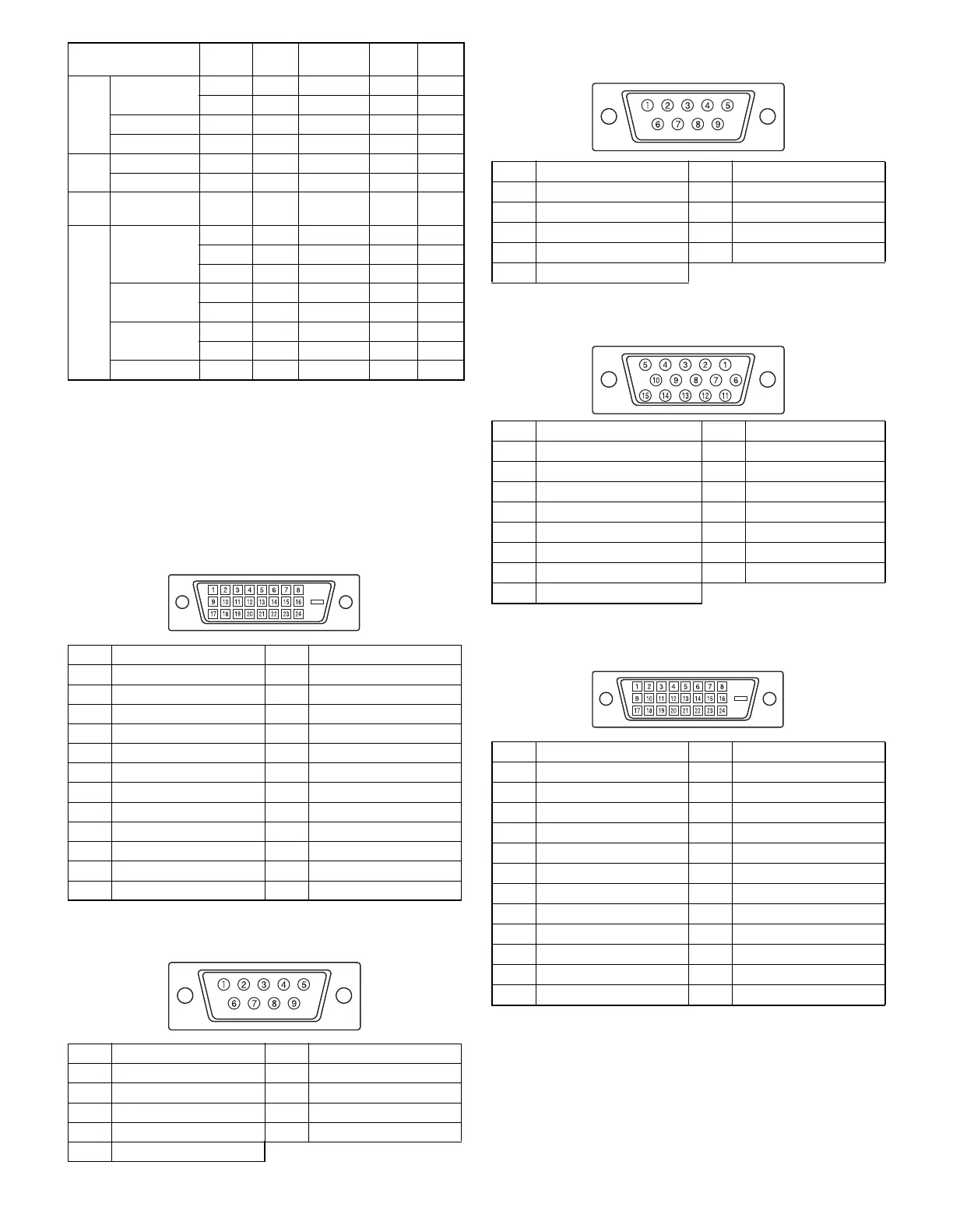

■ PC1/AV1 INPUT TERMINAL PINS
■ RS-232C INPUT TERMINAL PINS
■ RS-232C OUTPUT TERMINAL PINS
■ PC2 RGB INPUT TERMINAL PINS
■ PC/AV OUTPUT TERMINAL PINS
VESA
1280
× 1024 64.0kHz 60Hz 108.0MHz oo
80.0kHz 75Hz 135.0MHz oo
1360
× 768 47.7kHz 60Hz 85.5MHz oo
1600 × 1200
* 1
75.0kHz 60Hz 162.0MHz oo
Wide 1280
× 720 44.7kHz 60Hz 74.4MHz oo
1920
× 1080 66.3kHz 60Hz 148.5MHz oo
US
TEXT
720
× 400 31.5kHz 70Hz 28.3MHz oo
Sun
Ultra
Series
1024
× 768 48.3kHz 60Hz 64.13MHz o -
53.6kHz 66Hz 70.4MHz o -
56.6kHz 70Hz 74.25MHz o -
1152 × 900 61.8kHz 66Hz 94.88MHz o -
71.8kHz 76.2Hz 108.23MHz o -
1280 × 1024 71.7kHz 67.2Hz 117.01MHz o -
81.1kHz 76Hz 134.99MHz o -
1600 × 1000 68.6kHz 66Hz 135.76MHz o -
No. Function No. Function
1 TMDS data 2- 13 N.C.
2TMDS data 2
+ 14 +5V
3 TMDS data 2/4 shield 15 GND
4 N.C. 16 Hot-plug detection
5 N.C. 17 TMDS data 0
−
6 DDC clock 18 TMDS data 0+
7 DDC data 19 TMDS data 0/5 shield
8N.C. 20N.C.
9TMDS data 1
− 21 N.C.
10 TMDS data 1
+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDS clock
+
12 N.C. 24 TMDS clock−
No. Function No. Function
1N.C. 6N.C.
2 Transmitted data 7 N.C.
3 Received data 8 N.C.
4N.C. 9N.C.
5GND
Screen resolution Hsync Vsync
Dot
frequency
Analog
signal
Digital
signal
(DVI-D 24 Pin)
(D-sub 9 Pin)
No. Function No. Function
1N.C. 6N.C.
2 Received data 7 N.C.
3 Transmitted data 8 N.C.
4N.C. 9N.C.
5GND
No. Function No. Function
1 Red video signal input 9
+5V
2 Green video signal input 10 GND
3 Blue video signal input 11 N.C.
4 N.C. 12 DDC data
5 GND 13 Hsync signal input
6 GND for red video signal 14 Vsync signal input
7 GND for green video signal 15 DDC clock
8 GND for blue video signal
No. Function No. Function
1 TMDS data 2
− 13 N.C.
2 TMDS data 2
+ 14 +5V
3 TMDS data 2/4 shield 15 GND
4 N.C. 16 Hot-plug detection
5 N.C. 17 TMDS data 0
−
6 DDC clock 18 TMDS data 0+
7 DDC data 19 TMDS data 0/5 shield
8 N.C. 20 N.C.
9 TMDS data 1
− 21 N.C.
10 TMDS data 1
+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDS clock
+
12 N.C. 24 TMDS clock−
(D-sub 9 Pin)
(Mini D-sub 15 Pin)
(DVI-D 24 Pin)
