PN-465U DISASSEMBLY AND ASSEMBLY
3 – 1
CHAPTER 3. DISASSEMBLY AND ASSEMBLY

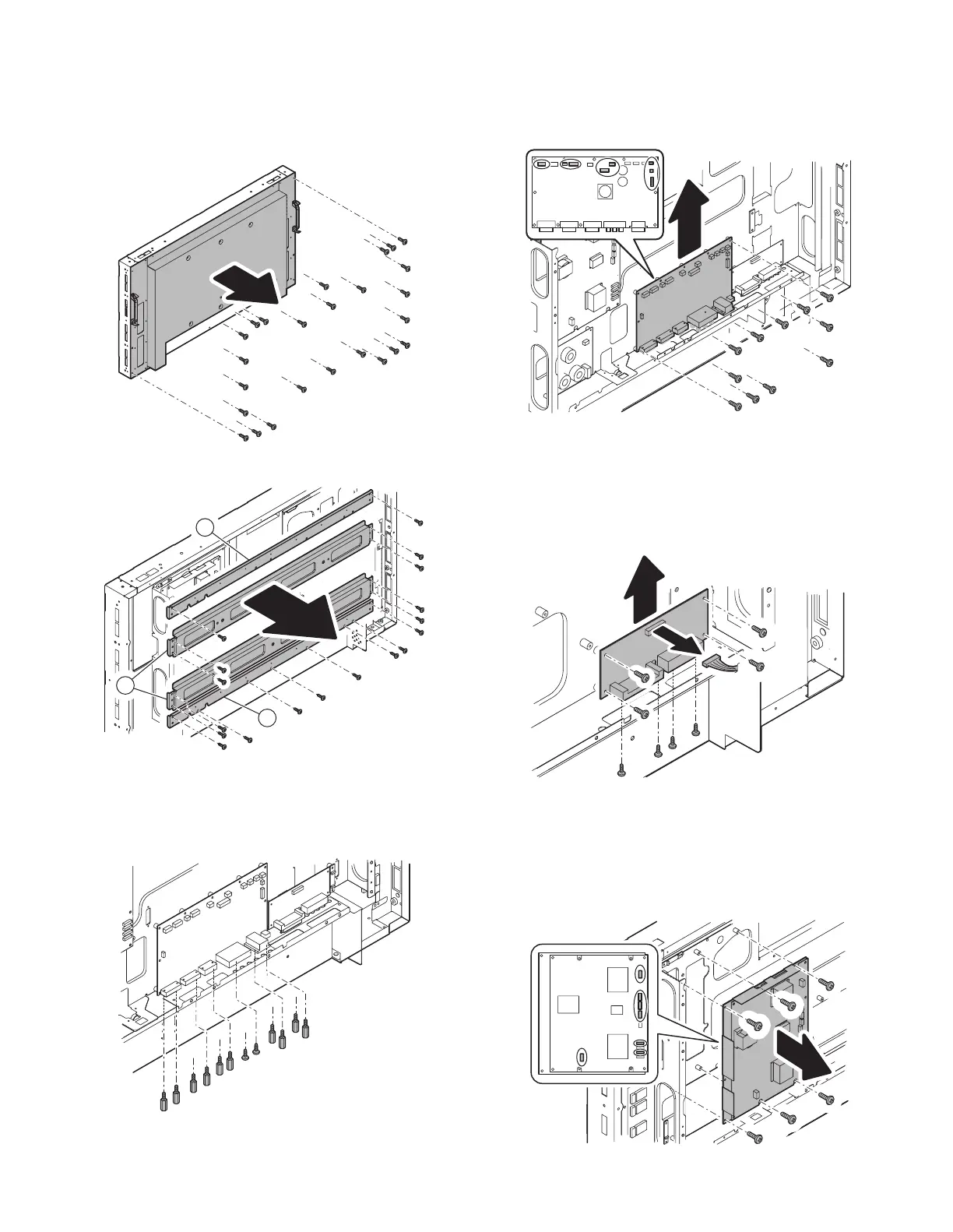

1. REAR COVER AND BRIDGE REMOVAL
1) Remove 25 screws , and remove the rear cover.
2) Remove 18 screws , and remove 2 bridge A and 2 bridge B.
2. IF 1 PWB REMOVAL
1) Remove 10 hexagon screw and 2 screws.
2) Disconnect the connector at 8 positions. Remove 11 screws , and
remove the IF1 PWB.
3. IF 2 PWB REMOVAL
1) Disconnect the connector at the position. Remove 8 screws , and
remove the IF2 PWB.
4. POWER PWB REMOVAL
1) Disconnect the connector at 7 positions. Remove 6 screws , and
remove the power PWB.
A
A
B
