Drawing shapes
You can draw shapes such as circles, rectangles and triangles.
1. Touch
“Drawing Object” in the menu.
The gure or line / arrow settings menu appears.
When a gure is selected, the gure settings menu appears.
2. Drag on the board to draw the shape.
The line shape is drawn in the area specied by dragging.
n
Figure settings menu
You can change the gure settings.
TIPS
• When Color Universal Design (page 56) is “Enable”, the line colors and widths that can be set change to colors and widths
that are clearly visible.
When “Disable”, you can select “Custom” to set the line color and ll color as desired.

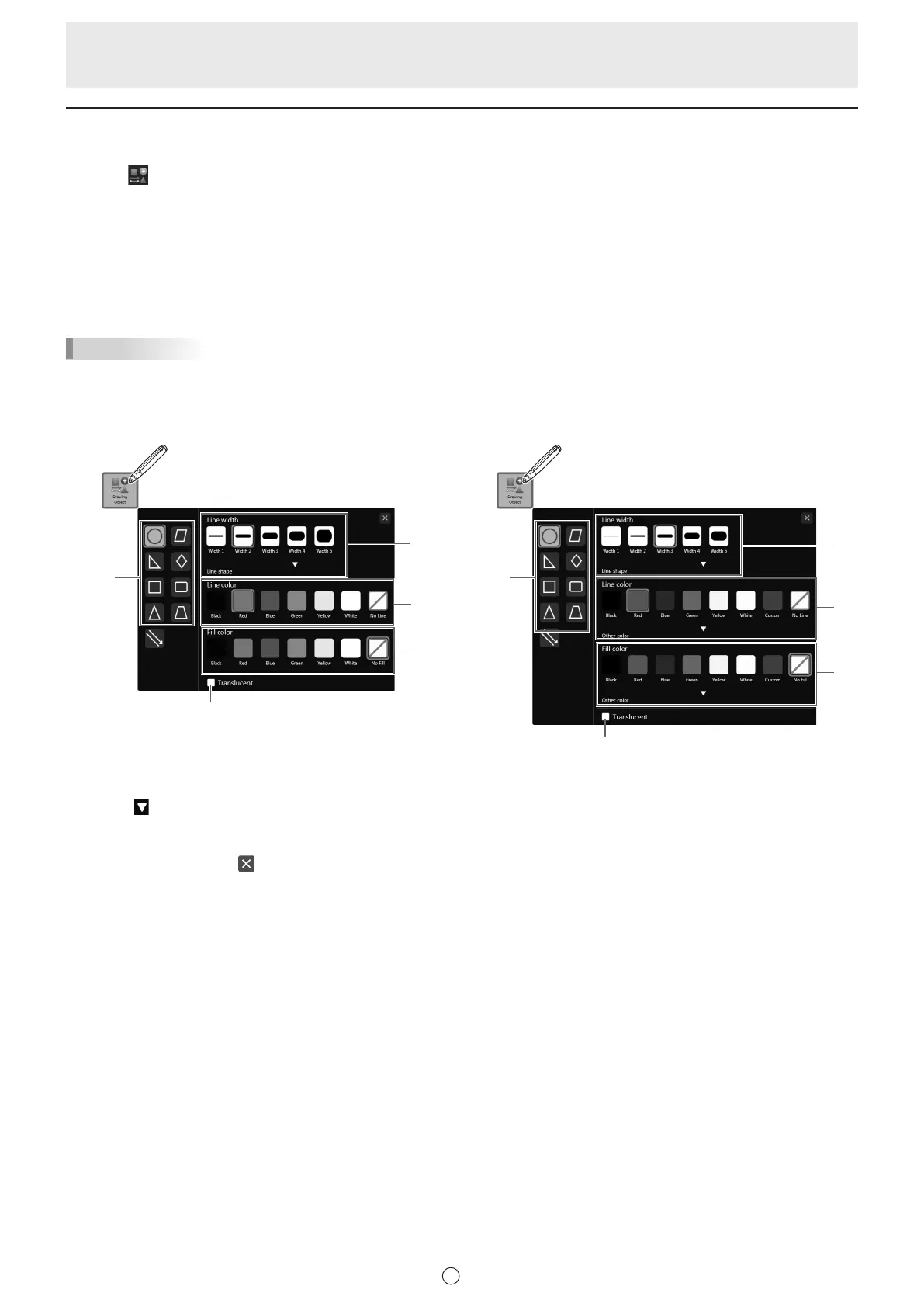

When Color Universal Design is “Enable” When Color Universal Design is “Disable”
(1)
(2)
(3)
(4)
(5)
(1)
(2)
(3)
(4)
(5)
(1) Select an object.
(2) Set the width and shape of the line.
Touch
to set the shape.
(3) Set the line color.
(4) Set the color to ll in.
(5) Check this box to make the shape translucent.
To close the settings, touch
or a point outside the settings menu.

Sharp PN-L802B Specifications

General

Pixel pitch	0.923 x 0.923 mm
Aspect ratio	16:9
Screen shape	Flat
LED backlight	Yes
Response time	6 ms
Display diagonal	80 \
Display brightness	300 cd/m²
Display technology	LCD
Touchscreen technology	Optical imaging
Contrast ratio (typical)	3000:1
Display number of colors	1.073 billion colors
Display diagonal (metric)	203.2 cm
Product color	Gray
Display viewable area (HxV)	1771.2 x 996.3 mm
Audio input	1
RS-232 ports	2
AC input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	260 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
NVIDIA G-SYNC	No

Weight and Dimensions

Depth (without stand)	135 mm
Width (without stand)	1880 mm
Height (without stand)	1157 mm
Weight (without stand)	102000 g
