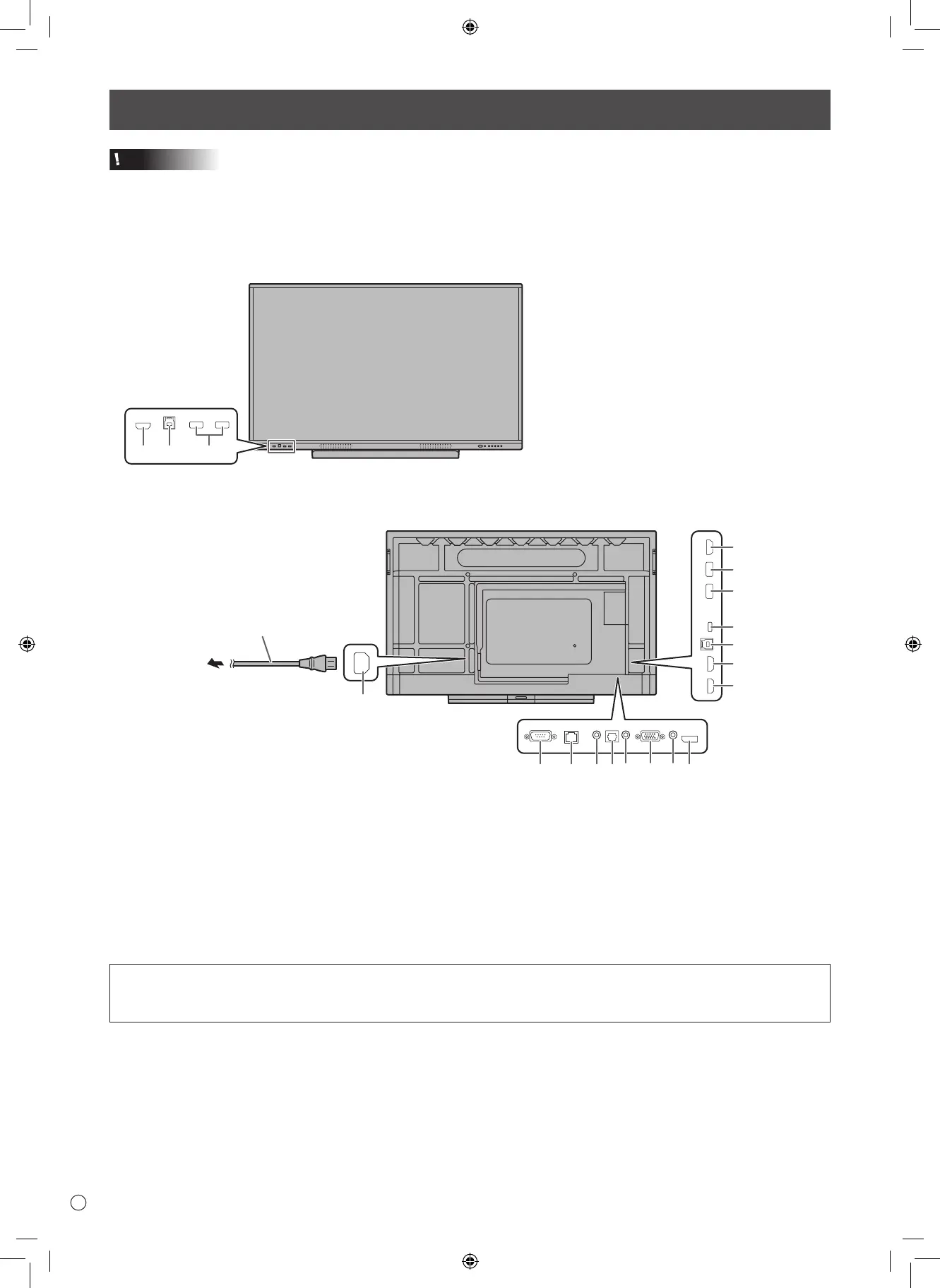

Connections
Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
1 2 3
1. HDMI1 input terminal
2. TOUCH PANEL1 terminal
(for HDMI1)
3. USB port (USB 3.0 compliant)
4. HDMI output terminal
5. USB port for APPLICATION mode (USB 3.0 compliant)
6. USB Type C port
7. TOUCH PANEL2 terminal
(for HDMI2/HDMI3/DisplayPort/D-SUB)
8. HDMI2 input terminal
9. HDMI3 input terminal
10. RS-232C input terminal
The TOUCH PANEL terminal is USB3.0 Type B.
Although the connector shape is different, the supplied USB cable (USB 2.0 Type B) can be connected to the TOUCH PANEL
terminal.
n
Rear view
Power cord (Supplied)
6
5
4
3
7
8
9
10 11 12
13 14 15 16 17
18
n
Front view
11. LAN terminal
12. Audio output terminal
13. Digital audio output (optical) terminal
14. Audio input terminal
15. D-sub input terminal
16. Mini AV input terminal
17. DisplayPort input terminal
18. AC input terminal
