Sharp PN-V600A - Page 59

59
E

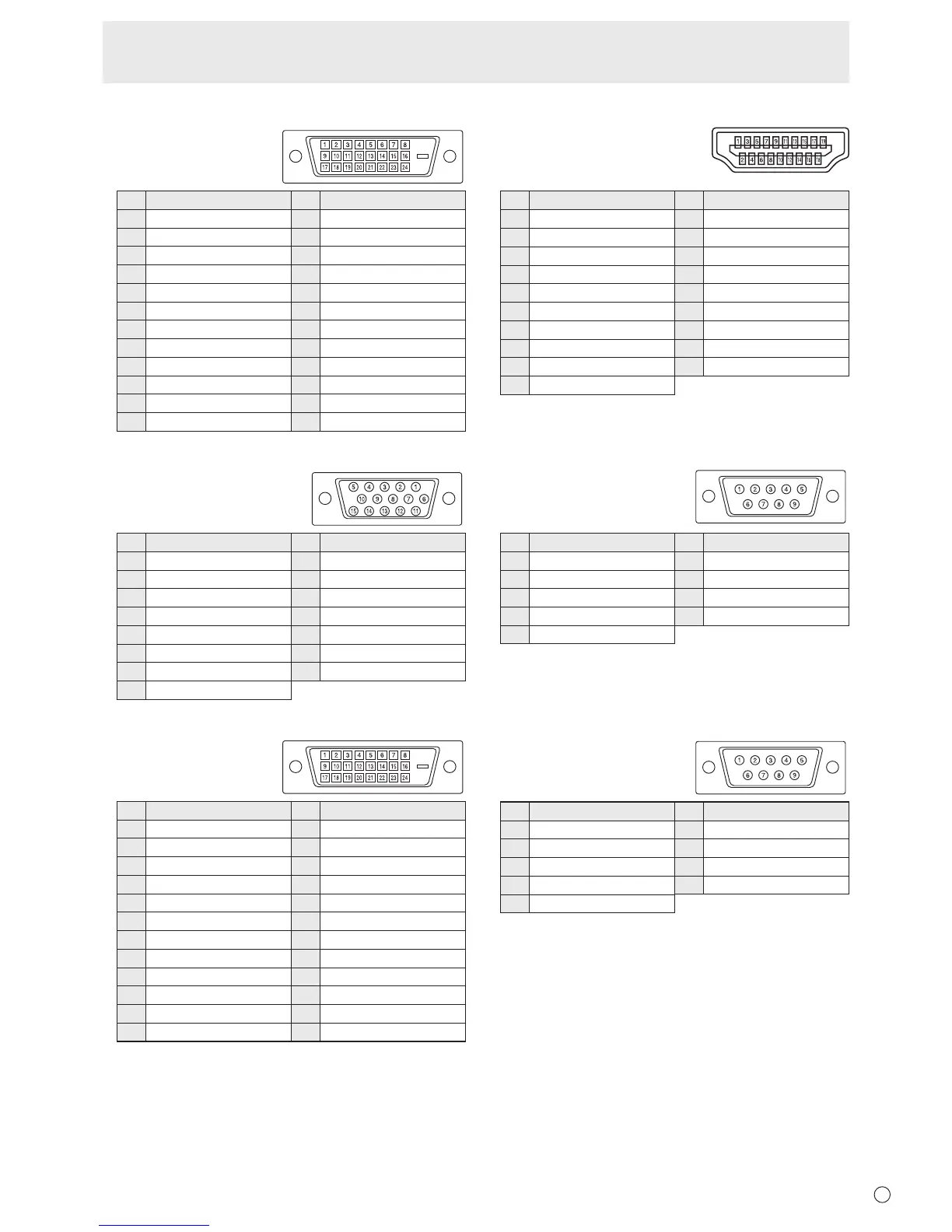

Specications
n
PC/AV DVI-D input terminal pins
(DVI-D 24 pin)
No. Function No. Function
1 TMDSdata2- 13 N.C.
2 TMDSdata2+ 14 +5V
3 TMDSdata2/4shield 15 GND
4 N.C. 16 Hot-plugdetection
5 N.C. 17 TMDSdata0-
6 DDCclock 18 TMDSdata0+
7 DDCdata 19 TMDSdata0/5shield
8 N.C. 20 N.C.
9 TMDSdata1- 21 N.C.
10 TMDSdata1+ 22 TMDSclockshield
11 TMDSdata1/3shield 23 TMDSclock+
12 N.C. 24 TMDSclock-
n
PC D-sub input terminal pins
(Mini D-sub 15 pin)
No. Function No. Function
1 Red video signal input 9 +5V
2 Greenvideosignalinput 10 GND
3 Bluevideosignalinput 11 N.C.
4 N.C. 12 DDCdata
5 GND 13 Hsyncsignalinput
6 GNDforredvideosignal 14 Vsyncsignalinput
7 GNDforgreenvideosignal 15 DDCclock
8 GNDforbluevideosignal
n
PC/AV DVI-D output terminal pins
(DVI-D 24 pin)
No. Function No. Function
1 TMDSdata2- 13 N.C.
2 TMDSdata2+ 14 +5V
3 TMDSdata2/4shield 15 GND
4 N.C. 16 Hot-plugdetection
5 N.C. 17 TMDSdata0-
6 DDCclock 18 TMDSdata0+
7 DDCdata 19 TMDSdata0/5shield
8 N.C. 20 N.C.
9 TMDSdata1- 21 N.C.
10 TMDSdata1+ 22 TMDSclockshield
11 TMDSdata1/3shield 23 TMDSclock+
12 N.C. 24 TMDSclock-
n
PC/AV HDMI input terminal pins
(HDMI
TM
Connector)
No. Function No. Function
1 TMDSdata2+ 11 TMDSclockshield
2 TMDSdata2shield 12 TMDSclock-
3 TMDSdata2- 13 CEC
4 TMDSdata1+ 14 N.C.
5 TMDSdata1shield 15 SCL
6 TMDSdata1- 16 SDA
7 TMDSdata0+ 17 DDC/CECGND
8 TMDSdata0shield 18 +5V
9 TMDSdata0- 19 Hot-plugdetection
10 TMDSclock+
n
RS-232C input terminal pins
(D-sub 9 pin)
No. Function No. Function
1 N.C. 6 N.C.
2 Transmitted data 7 N.C.
3 Received data 8 N.C.
4 N.C. 9 N.C.
5 GND
n
RS-232C output terminal pins
(D-sub 9 pin)
No. Function No. Function
1 N.C. 6 N.C.
2 Received data 7 N.C.
3 Transmitted data 8 N.C.
4 N.C. 9 N.C.
5 GND
