Sharp PRO-60X5FD - Removing of MAIN Unit, LCD CONTROL Unit, POWER Unit and LD DRIVE Unit.

PRO-60/70X5FD
4 – 4

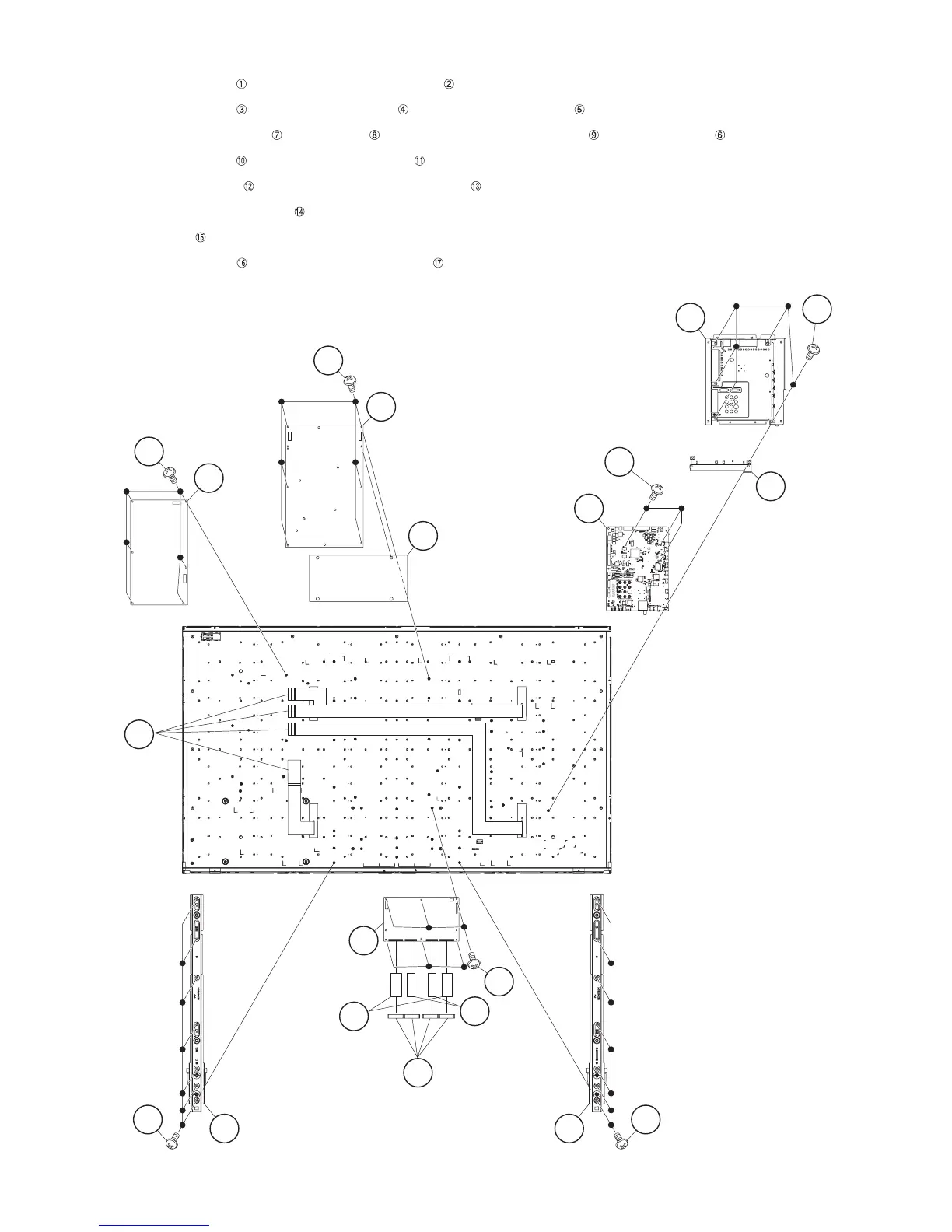

4. Removing of MAIN Unit, LCD CONTROL Unit, POWER Unit and LD DRIVE Unit.
1. Remove the 5 lock screws and detach the Shield (MAIN Unit) .
2. Remove the 3 lock screws and detach the MAIN Unit and Terminal Angle (Bottom) .
3. Remove the 4 Connecting Cords , 6 lock screws and detach the LCD CONTROL Unit and 4 Ferrite Cores .
4. Remove the 6 lock screws and detach the POWER Unit .
5. Remove the 14 lock screws and detach the 2 Center Angle Ass’ys .
6. Detach the POWER Insulation Sheet .
7. Detach the 4 FFCs .
8. Remove the 6 lock screws and detach the LED DRIVE Unit .
11
14
13
12
POWER Unit
POWER
Insulation
Sheet
FFC
Center Angle
Ass'y
13
12
Center Angle
Ass'y
16
10
17
15
LED
DRIVE
Unit
9
8
LCD
CONTROL
Unit
6
7
7
Ferrite Core
FFC
(80Pin)
FFC
(64Pin)
1
2
5
3
4
Terminal
Angle
(Bottom)
Shield (MAIN Unit)
MAIN Unit
