Sharp PRO-60X5FD - Removing of KEY Unit, Speaker (Woofer) and 70 LCD Panel Module Unit.

PRO-60/70X5FD
4 – 7

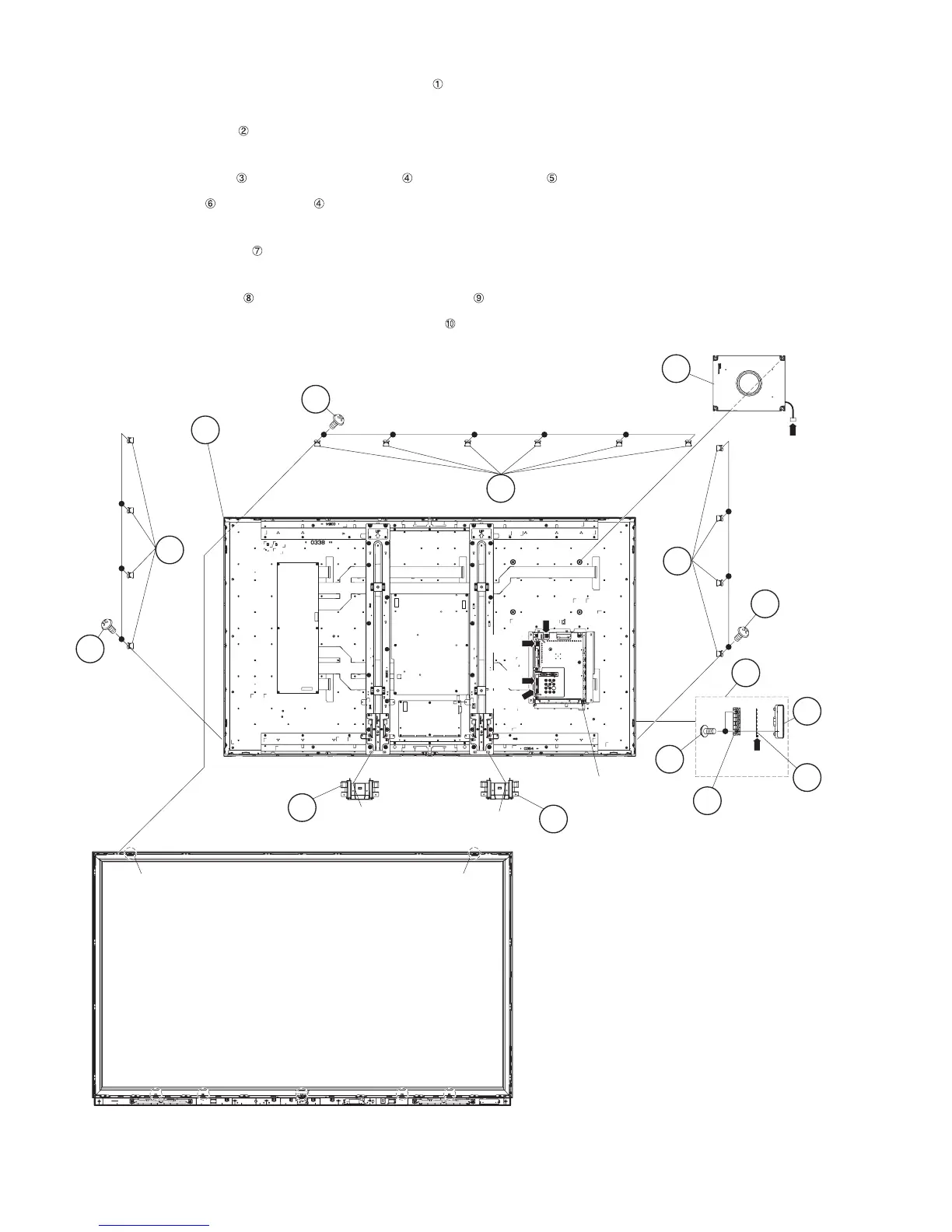

2. Removing of KEY Unit, Speaker (Woofer) and 70” LCD Panel Module Unit.
1. Remove the slide on 2 hooks and detach the 2 Bottom Covers .
2. Disconnect the RC wire.
3. Detach the KEY Unit Ass’y .
4. Disconnect the KM wire.
5. Remove the 2 lock screws and detach the Key Button from Key Button Cover .
6. Detach the KEY Unit from Key Button .
7. Disconnect the SB wire.
8. Detach the Speaker (Woofer) .
9. Disconnect the following connectors from the MAIN Unit. (SP, UB)
10.Remove the 14 lock screws and detach the 14 Fixing Metal Angles .
11.Remove the 2 hooks and detach the 70” LCD Panel Module Unit .
1
1
Hook
Hook
Bottom
Cover
Bottom
Cover
[KM]
6
3
2
8
5
4 Key
Button
KEY
Unit
KEY Unit Ass'y
10
70" LCD Panel
Module Unit
Key
Button
Cover
9
9
8
8
7
Speaker (Woofer)
9
Fixing
Metal
Angle
Fixing Metal Angle
Fixing
Metal
Angle
[SB]
MAIN Unit
Hook Hook
[SP]
[RC]
[UB]
[SB]
