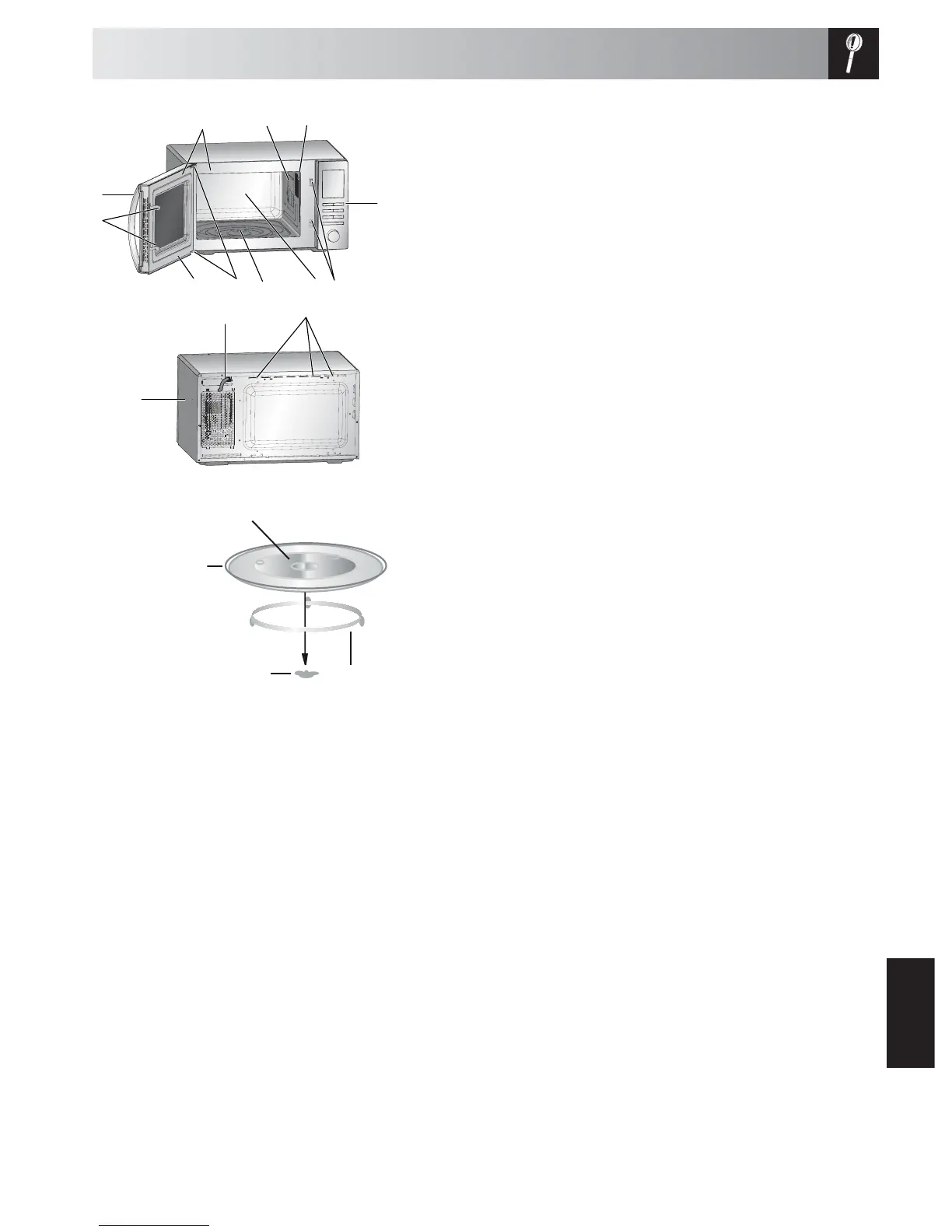

OVEN AND ACCESSORIES
OVEN
1. Door handle
2. Oven lamp
3. Door hinges
4. Door safety latches
5. Door
6. Door seals and sealing surfaces
7. Turntable motor shaft
8. Oven cavity
9. Control panel
10. Waveguide cover (DO NOT REMOVE)
11. Power supply cord
12. Ventilation openings
13. Outer cabinet
ACCESSORIES:
Check to make sure the following accessories are
provided:
(14) Turntable (15) Turntable support (16) Coupling
• Place the coupling into the turntable motor shaft and then place
the turntable support in the centre of the oven floor so that it can
freely rotate around the coupling. Place the turntable onto the
turntable support so that it locates firmly into the coupling.
• To avoid turntable damage, ensure dishes and containers are
lifted clear of the turntable rim when removing them from the
oven.
NOTE: When you order accessories, please mention two items: part
name and model name to your dealer or SHARP authorised service
agent.
NOTES:
• The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it is not damaged.
• Always operate the oven with the turntable and turntable support fitted correctly. This promotes thorough, even cooking. A badly fitted
turntable may rattle, may not rotate properly and could cause damage to the oven.
• All food and containers of food are always placed on the turntable for cooking.
• The turntable rotates clockwise or anti-clockwise. The rotary direction may change each time you start the oven. This does not affect
cooking performance.
Hub (inside)
14. Turntable
(glass)
16. Coupling
15. Turntable
support
