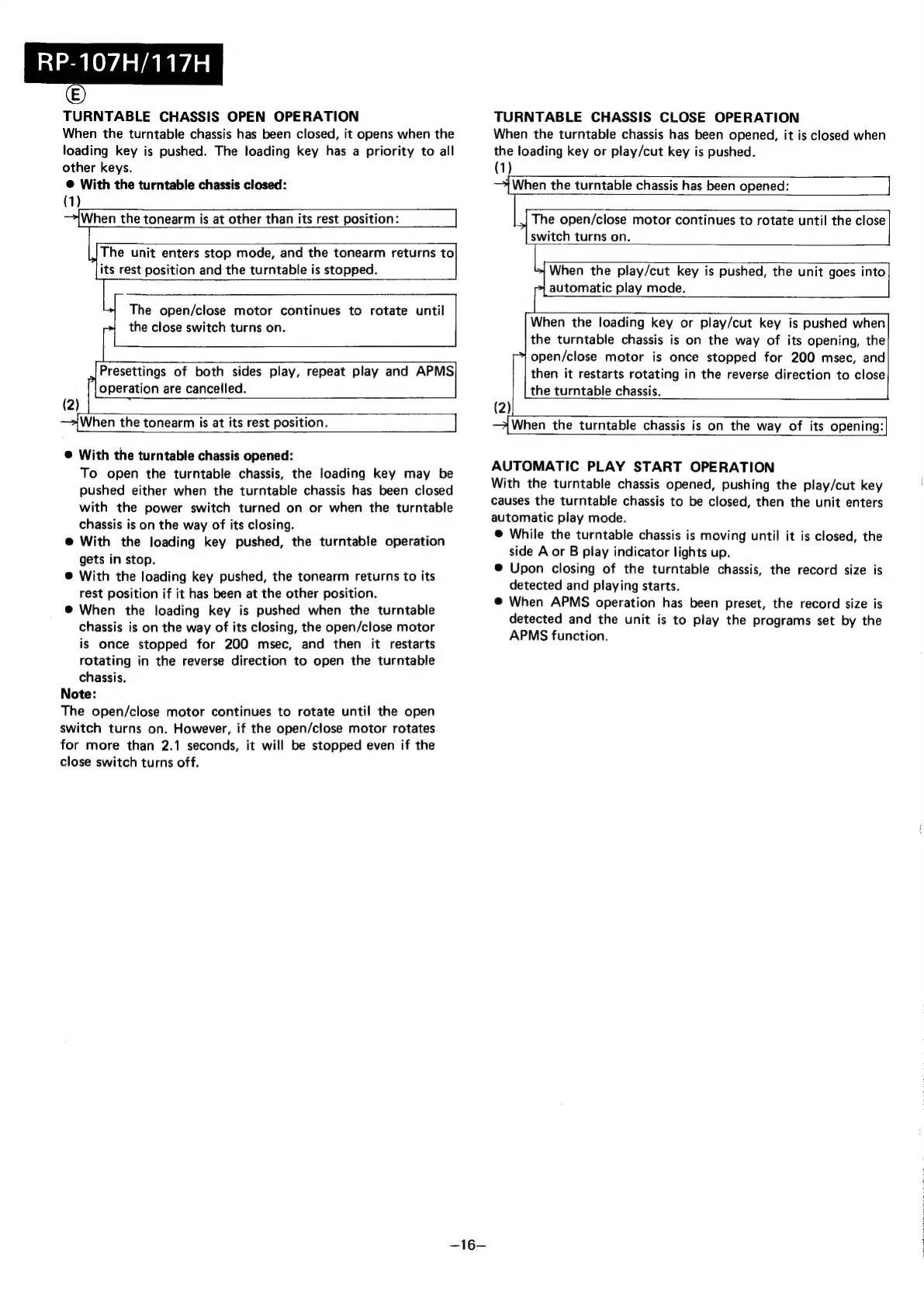

RP-107H/117H
©
TURNTABLE CHASSIS OPEN OPERATION
When the turntable chassis has been closed, it opens when the
loading key is pushed. The loading key has a priority to all
other keys.
@ With the turntable chassis closed:
(1)
When the tonearm is at other than its rest position: |
The unit enters stop mode, and the tonearm returns to
its rest position and the turntable is stopped.
The open/close motor continues to rotate until
the close switch turns on.
Presettings of both sides play, repeat play and APMS
operation are cancelled.
(2)
—>[When the tonearm is at its rest position. ‘|
@ With the turntable chassis opened:
To open the turntable chassis, the loading key may be
pushed either when the turntable chassis has been closed
with the power switch turned on or when the turntable
chassis is on the way of its closing.
@ With the loading key pushed, the turntable operation
gets in stop.
@ With the loading key pushed, the tonearm returns to its
rest position if it has been at the other position.
@ When the loading key is pushed when the turntable
chassis is on the way of its closing, the open/close motor
is once stopped for 200 msec, and then it restarts
rotating in the reverse direction to open the turntable
chassis.
Note:
The open/close motor continues to rotate until the open
switch turns on. However, if the open/close motor rotates
for more than 2.1 seconds, it will be stopped even if the
close switch turns off.
TURNTABLE CHASSIS CLOSE OPERATION
When the turntable chassis has been opened, it is closed when
the loading key or play/cut key is pushed.
(1)
When the turntable chassis has been opened: |
The open/close motor continues to rotate until the close
switch turns on.
When the play/cut key is pushed, the unit goes into
automatic play mode.
When the loading key or play/cut key is pushed when
the turntable chassis is on the way of its opening, the
open/close motor is once stopped for 200 msec, and
then it restarts rotating in the reverse direction to close
the turntable chassis.
(2)
When the turntable chassis is on the way of its opening: |
AUTOMATIC PLAY START OPERATION
With the turntable chassis opened, pushing the play/cut key
causes the turntable chassis to be closed, then the unit enters
automatic play mode.
®@ While the turntable chassis is moving until it is closed, the
side A or B play indicator lights up.
@ Upon closing of the turntable chassis, the record size is
detected and playing starts.
@ When APMS operation has been preset, the record size is
detected and the unit is to play the programs set by the
APMS function.
~16—
