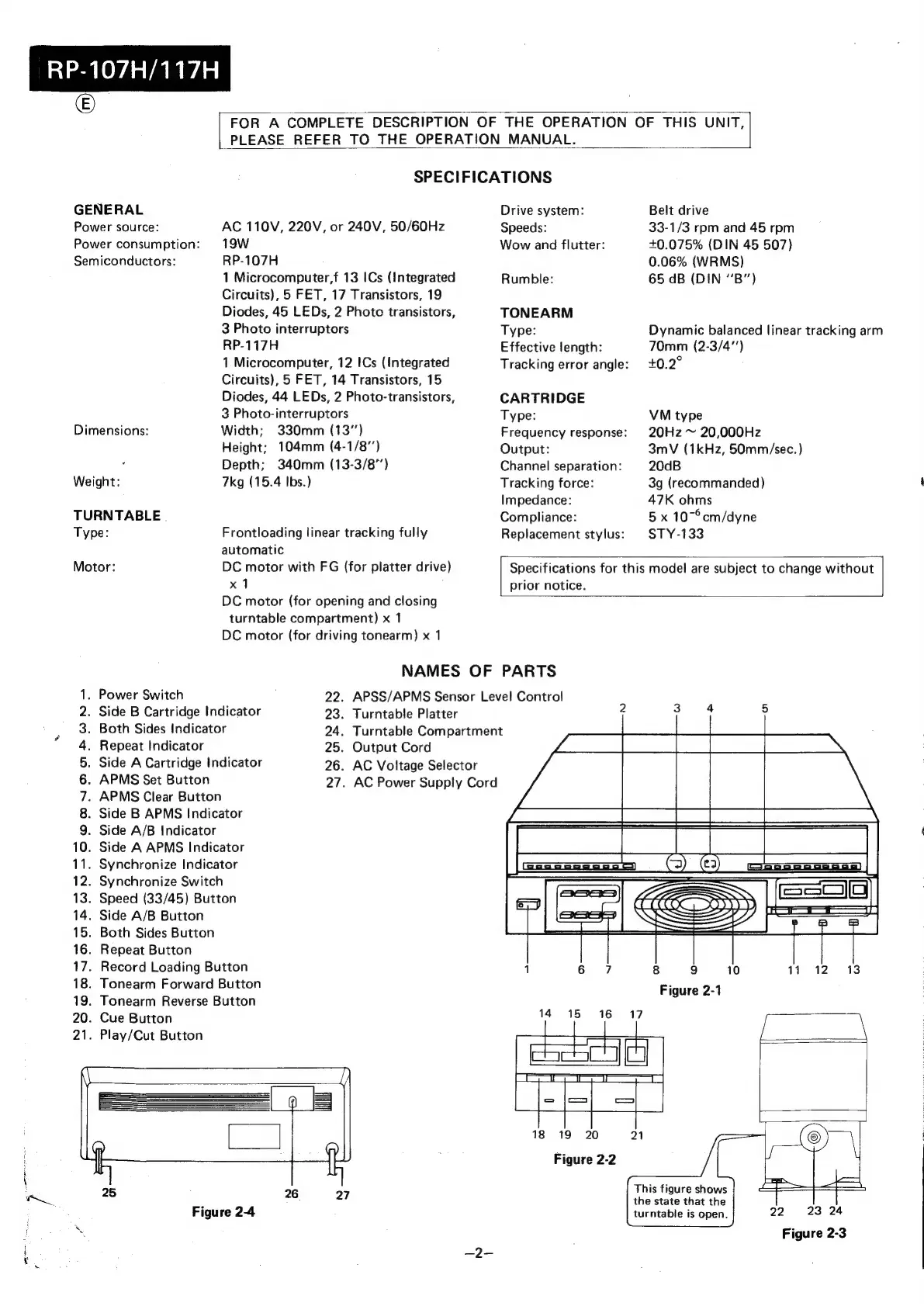

Sharp RP-117H User Manual

RP-107H/117H
©
GENERAL
Power source:
Power consumption:
Semiconductors:
| FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT,
PLEASE REFER TO THE OPERATION MANUAL.
SPECIFICATIONS
AC 110V, 220V, or 240V, 50/60Hz
19W
RP-107H
1 Microcomputer,f 13 ICs (Integrated
Circuits), 5 FET, 17 Transistors, 19
Diodes, 45 LEDs, 2 Photce transistors,
3 Photo interruptors
RP-117H
Drive system:
Speeds:
Wow and flutter:
Rumble:
TONEARM
Type:
Effective length:
Belt drive
33-1/3 rpm and 45 rpm
+0.075% (DIN 45 507)
0.06% (WRMS)
65 dB (DIN “B”)
Dynamic balanced linear tracking arm
70mm (2-3/4)
1 Microcomputer, 12 ICs (Integrated Tracking error angle: +0.2°
Circuits), 5 FET, 14 Transistors, 15
Diodes, 44 LEDs, 2 Photo-transistors, CARTRIDGE
3 Photo-interruptors Type: VM type
Dimensions: Width; 330mm (13”) Frequency response: 20Hz ~ 20,000Hz
Height; 104mm (4-1/8’) Output: 3mV (1kHz, 50mm/sec.)
. Depth; 340mm (13-3/8”) Channel separation: 20dB
Weight: 7kg (15.4 Ibs.) Tracking force: 3g (recommanded)
Impedance: 47K ohms
TURNTABLE Compliance: 5 x 107 cm/dyne
Type: Frontloading linear tracking fully Replacement stylus: STY-133
automatic
Motor: DC motor with FG (for platter drive) Specifications for this model are subject to change en
x1 prior notice.
DC motor (for opening and closing
turntable compartment) x 1
DC motor (for driving tonearm) x 1
NAMES OF PARTS
1. Power Switch 22. APSS/APMS Sensor Level Control
2. Side B Cartridge Indicator 23. Turntable Platter
: 3. Both Sides Indicator 24. Turntable Compartment
4. Repeat Indicator 25. Output Cord
5. Side A Cartridge Indicator 26. AC Voltage Selector
6. APMS Set Button 27. AC Power Supply Cord
7. APMS Clear Button
8. Side B APMS Indicator
9. Side A/B Indicator
10. Side A APMS Indicator
11. Synchronize Indicator
12. Synchronize Switch
13. Speed (33/45) Button
14. Side A/B Button
15. Both Sides Button
16. Repeat Button
17. Record Loading Button 1 6 7 8 9 10 11.12 «13
18. Tonearm Forward Button Figure 2-1
19. Tonearm Reverse Button
20. Cue Button Va Hees NGS 1d ~
21. Play/Cut Button aaeeaa lal eal
eee -|S| =
[|
18
19
20
Figure 2-2
25 26 27 This figure shows
Figure 2-4
the state that the
turntable is open. 23 24
22
Figure 2-3

Sharp RP-117H Specifications

General

Brand	Sharp
Model	RP-117H
Category	Turntable
Language	English
