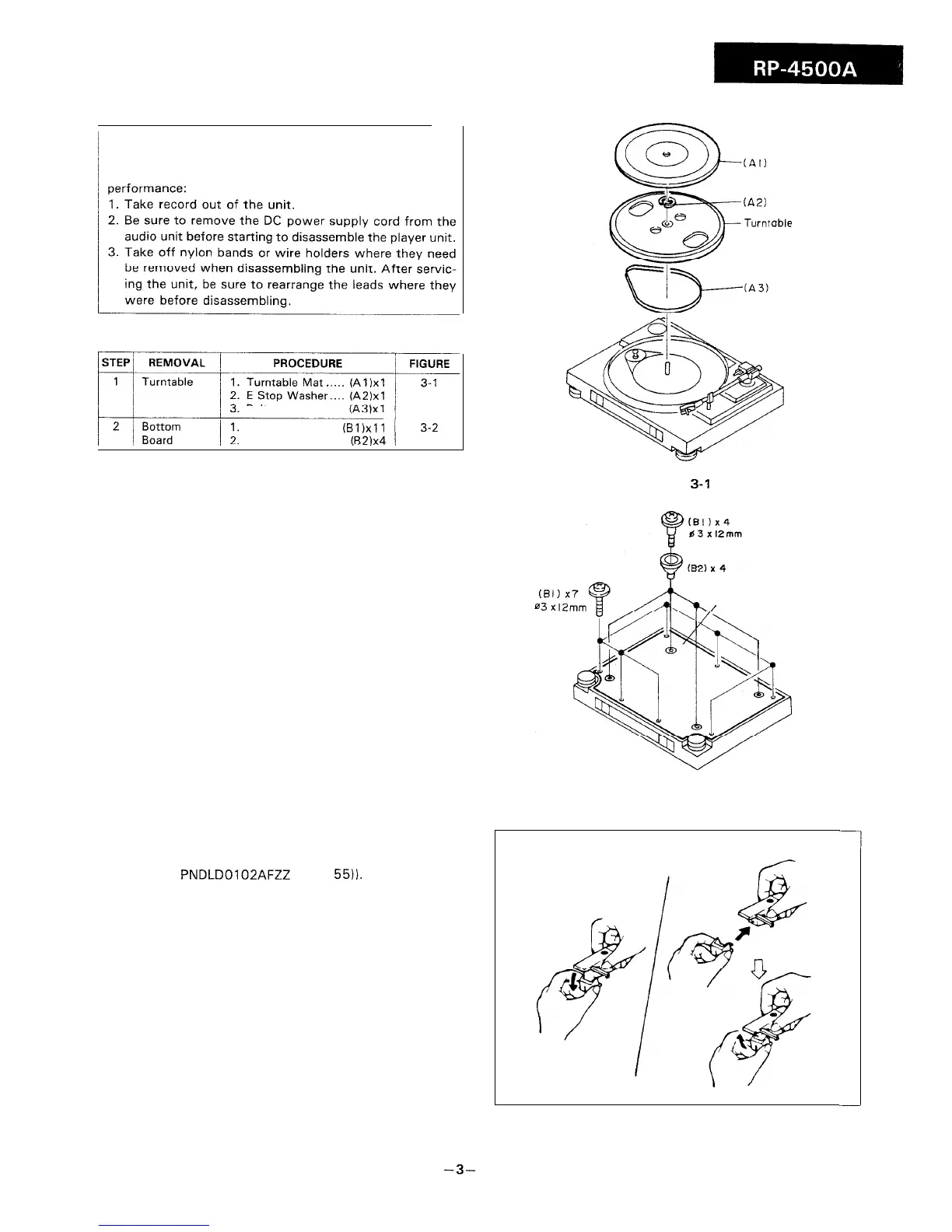

Sharp RP-4500A

DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling the
unit and reassembling it, to keep its safety and excellent
Belt ...................
Screw .............. (Bl)xll
Insulator .............
n Replacing the stylus
When the sound quality drops, replace the stylus with a new
one (part No. PNDLD0102AFZZ (STY-l 55)). Remove the old
stylus by pulling it downwards gently, and push the new sty-
lus into place as shown.
(Al)
(A2)
Turni ,able
Figure 3-1
Bottom Board
Figure 3-2
Figure 3-3
-3-
