Sharp SD-NX10 User Manual

– 13 –
SD-NX10

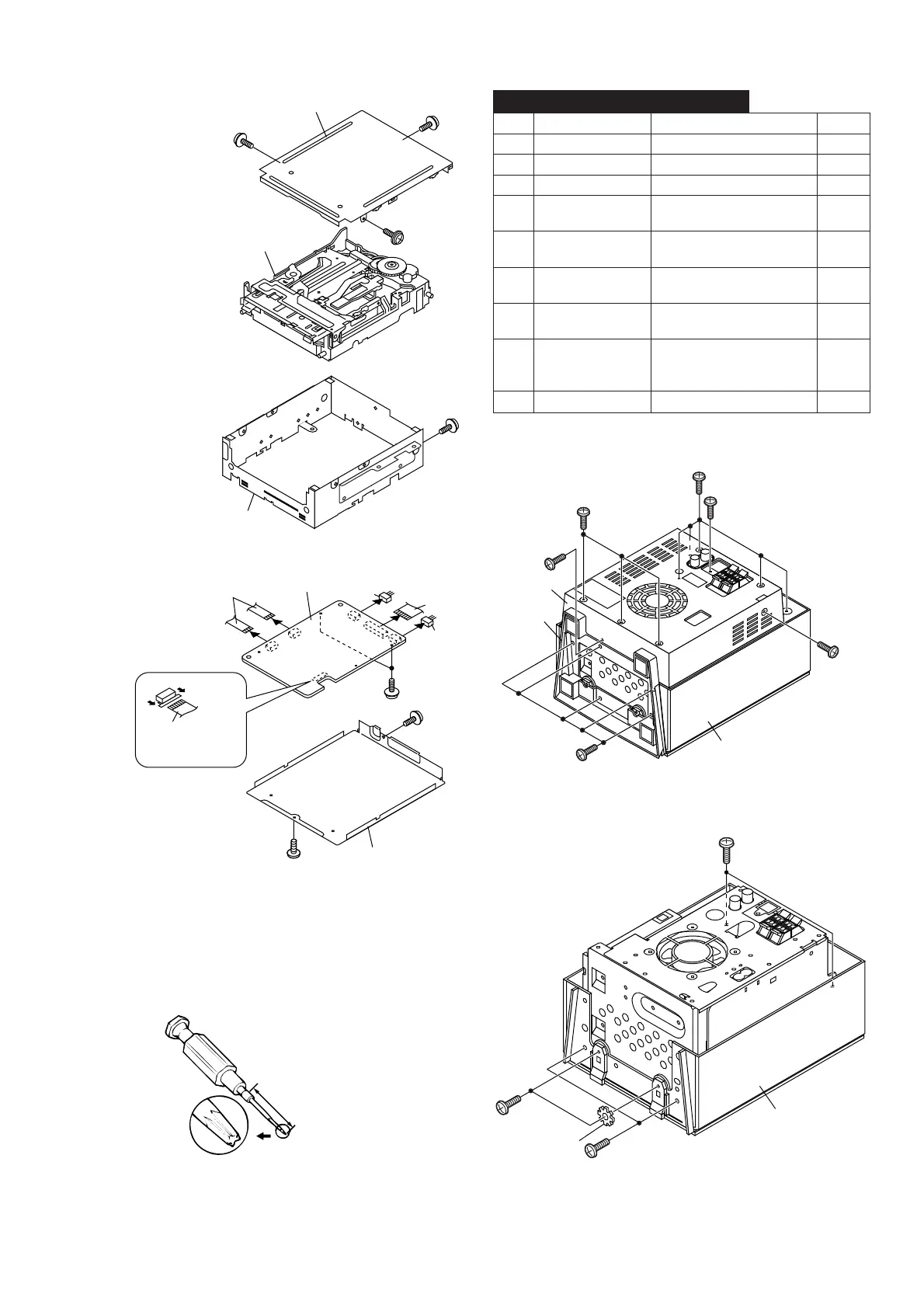

Figure 13-1
Figure 13-2
Special driver
(Amplifier unit: aluminium decorative plate)
To prohibit users' disassembling the unit, special screws are
used to fix the decorative plate. A special driver is required.
Figure 13-4
Special driver bit
(Torque head: T8 type)
1 Leg Cabinet 1. Screw.................. (A1) x5 13-3
2 Rear Cabinet 1. Screw................ (B1) x11 13-3
3 Front Cabinet 1. Screw................. (C1) x6 13-4
4 Rear Panel 1. Screw................. (D1) x6 14-1
2. Socket................ (D2) x1
5 1-Bit Amp. Unit 1. Screw.................. (E1) x2 14-1
2. Socket................. (E2) x4
6 Terminal PWB 1. Screw.................. (F1) x2 14-2
2. Socket................. (F2) x2
7 Power/Power LED 1. Screw................. (G1) x2 14-2
PWB 2. Socket................ (G2) x2
8 Shield Cover 1. Screw............... (H1) x12 14-3
2. Heat Sink ........... (H2) x1
3. 1-Bit Amp. Bracket .. (H3) x1
9 1-Bit Amp. PWB 1. Screw.................. (J1) x4 14-4
STEP
REMOVAL
PROCEDURE
FIGURE
SD-NX10 (AMPLIFIER UNIT)
Figure 13-3
(T2)x2
(T1)x1
ø 2x2mm
(T1)x1
ø 2x3mm
(T1)x1
ø 2x3mm
(T1)x1
ø 2x3mm
(T1)x1
ø 2x3mm
(T2)x1
(T4)x1
(T4)x1
(T1)x1
ø 2x3mm
(T1)x2
ø 1.7x3mm
Shield Case, Bottom
(T3)x1
Optical pickup
Flexible PWB (*1)
Pull
Pull
MD Main PWB
MD Mechanism
Shield Case, Side
Shield Case, Top
(*1) After pulling out the flexible
PWB for the optical pickup,
wrap its tip with conductive
aluminium foil or the like to
protect the optical pickup from
the static electricity.
(A1)x5
ø3x10mm
Front Cabinet
Rear Cabinet
Leg Cabinet
(B1)x1
ø3x10mm
(B1)x3
ø3x10mm
(B1)x5
ø3x10mm
(B1)x1
ø3x8mm
(B1)x1
ø3x10mm
(C1)x2
ø3x8mm
(C1)x2
ø3x8mm
Front Cabinet
(C1)x2
ø3x10mm
Washer
