SJ-48G/D48G
SJ-51G/D51G
SJ-55G/D55G
ASSEMBLING PROCEDURES OF MAIN PARTS AND CAUTIONS
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY REPAIRING.

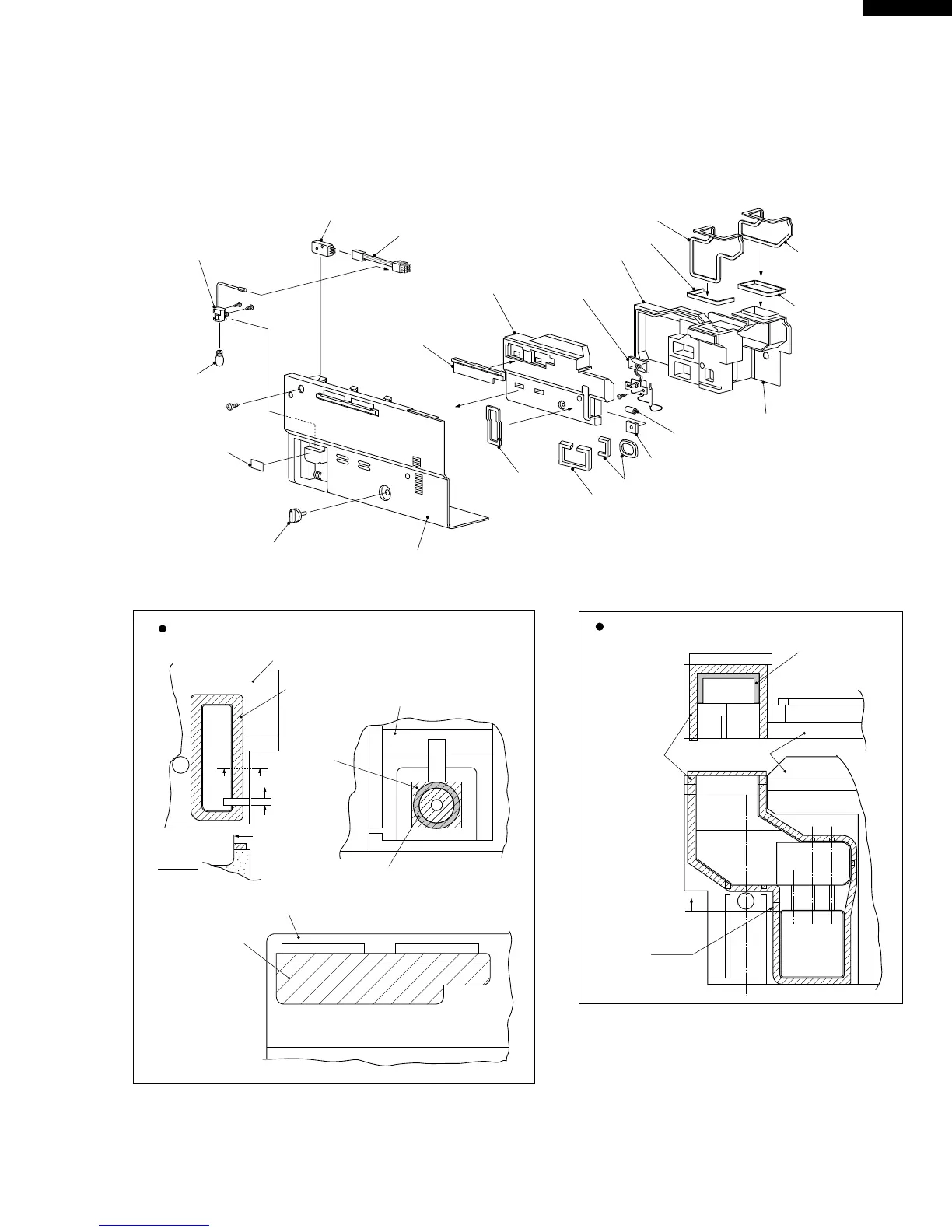

1. R-CONTROL COV. ASSEMBLY
(1) Sticking of SEALER
Lamp socket
Lamp
Warning label
R-temp. control knob
R-Cbox cover
Defrost timer
D timer lead ass'y
R-air guider A
RA-insulation
Damper
thermostat
A-sealer thermo. cap
Dial sealer
C-box base
Thermo. cap sealer
R-air guider B
A-sealer air guid. B
A-sealer
RC-box
A-sealer
RC-duct
A-sealer air guid. C
A-sealer air guid. D
A-sealer air guid. D
R-air guider A
A-sealer
thermo. cap
Dial
sealer
Start
Finish
datum
(all round)
RA-insulation
R-air guider A
R-air guider A
AA
SEC. AA
Insert RA-insulation
R-air guider A
A- sealer air guid. C
Start
A-sealer
air guid. B
Overlap
R-air guider B
R-air guider B
A-sealer
air guid. D
