SJ-48G/D48G
SJ-51G/D51G
SJ-55G/D55G

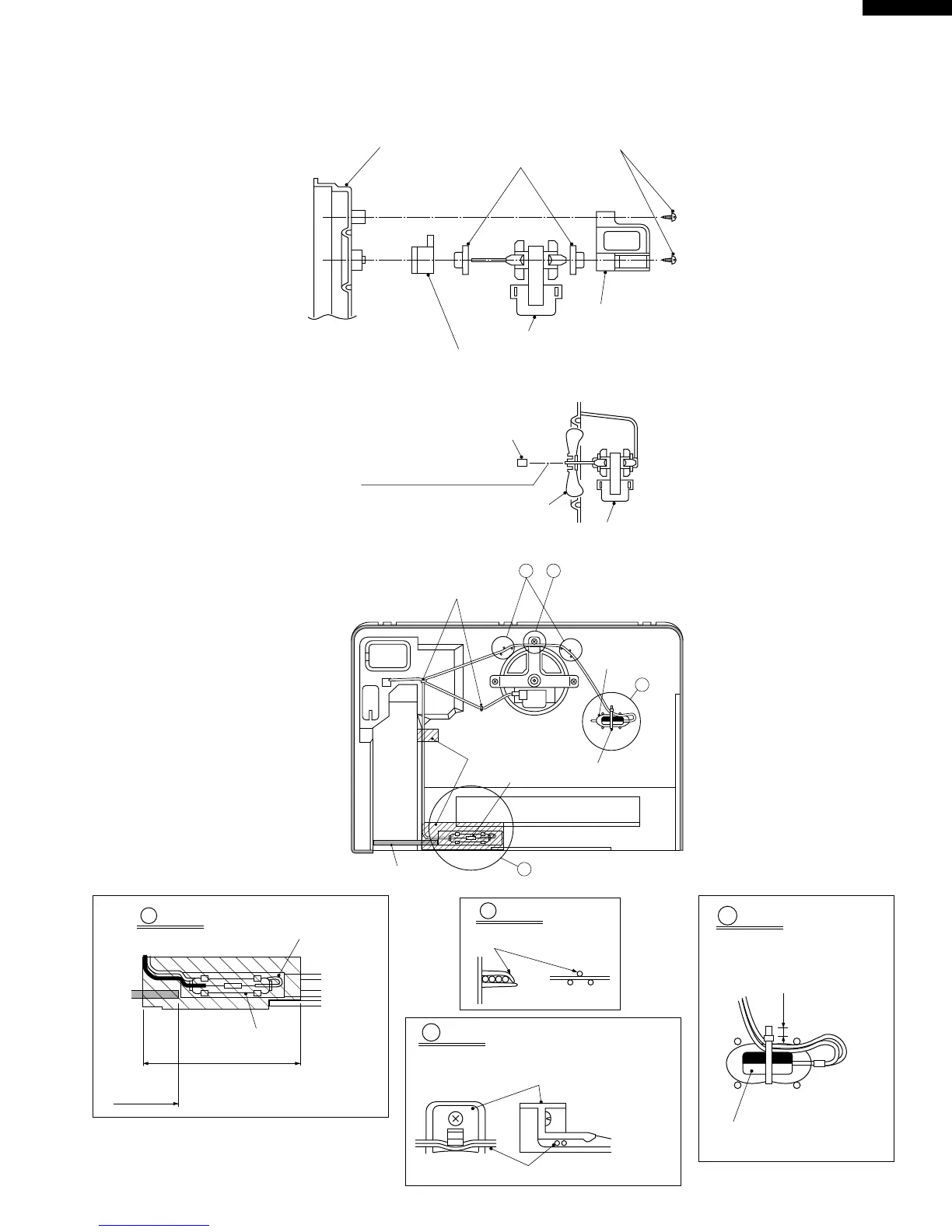

(2) Fixing of Fan motor and Fan
E.V cover
Motor cushion
Tapping screw
Fan motor cushion B
Fan motor
Fan motor cushion A
Fan clamp
Propeller fan 100
Fan motor
Motor shaft to be flush
with front surface of hub.
(3) Wiring of Lead Wire
B C
D
A
L-band C
Defrost
thermo. ass'y
L-band C
Fuse ass'y
Alminum tape
E.V cover sealer D
Lead wire “WHITE”
Fuse ass'y
Alminum tape
E.V cover
sealer D
DetailA
Bend this pin
DetailB
Fan motor cushion
Lead wires
DetailC
Set Lead wires of Defrost thermo. ass'y as shown.
Cut off to
7mm or shorter
7mm
Thermo. sensing element side
(Silver metal)
Horizontally
DetailD
Fasten Defrost thermo. ass'y's
wires as bellow.
And set it inside of the four pins.
