SJ-48G/D48G
SJ-51G/D51G
SJ-55G/D55G

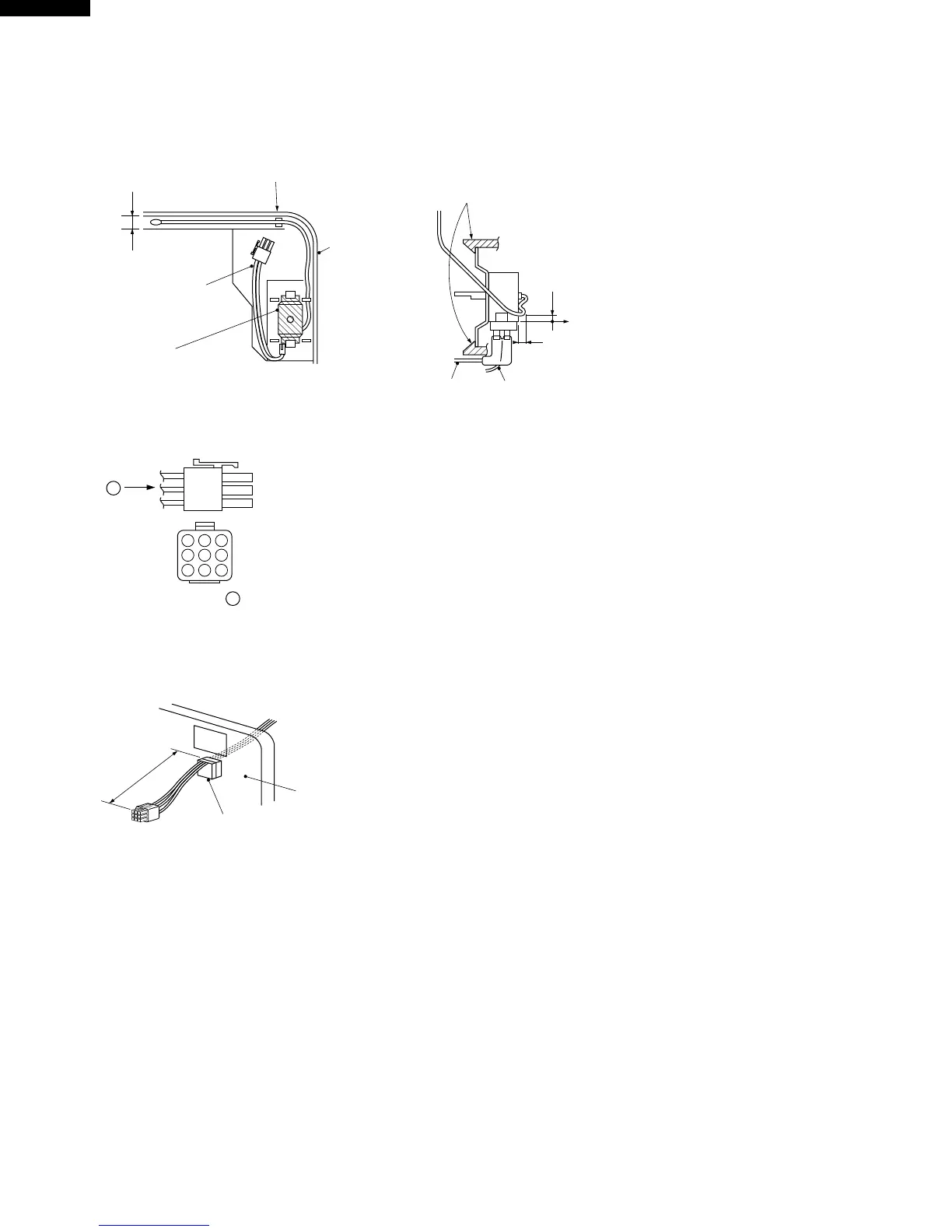

(4) Setting of Lead E.V cover ass'y and F-thermostat
Set surely edges of
these two ribs.
Color: RED Color: BROWN
Under 5mm
10mm over
Standard line
(5) Wiring of Connector
(6) Fixing of E.V cover sealer C
E.V cover
E.V cover sealer C
E.V cover
F-thermostat
Lead E.V cover
ass'y
Through between ribs
Inside of ribs
9 8 7
6 5 4
3 2 1
View from A
A
1. Lead E.V cover ass'y
2. Lead E.V cover ass'y
3. Pink lead of Defrost thermo. ass'y
4. Blue lead of Defrost thermo. ass'y
5. Lead E.V cover ass'y
6. Lead E.V cover ass'y
7. Black lead of Fuse ass'y
8. White lead of Fuse ass'y
9. No connect
