SJPT55RHS
4 – 1
SJPT55RHS
Service Manual

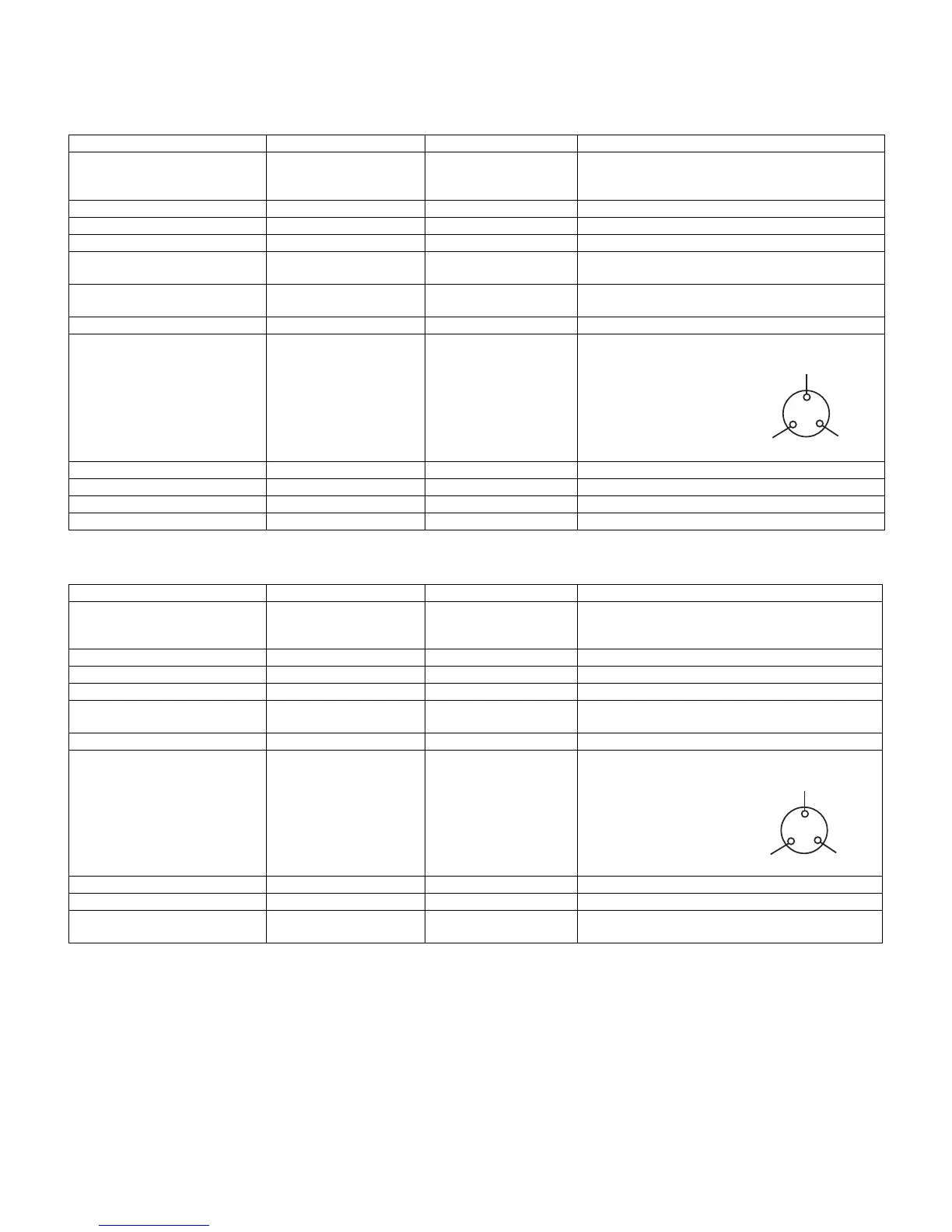

CHAPTER 4. LIST OF ELECTRICAL PARTS
[1] SJ-PT51R/PT55R
[2] SJ-T51R/T55R
ITEMS TYPE NAME RATING SPECIFICATIONS
R Thermistor
F Thermistor
Defrost Thermistor
—
—
—
DC 5V
DC 5V
DC 5V
R0 = 6.4 kΩ, B(0) = 3811
R0 = 6.4 kΩ, B(0) = 3811
R0 = 15 kΩ, B(0) = 3811
Thermo. fuse 12Y 250V 2A Working temp. : 76 °C
Defrost heater — 110-120V 77.7Ω 160W at 115V
Fan motor FBA12J15VXD DC 15V —
F Door switch
R Door switch
D3D-211
D3D-211
250V 0.5A/125V 1A
250V 0.5A/125V 1A
3 Terminals lever type
3 Terminals lever type
F Lamp (LED)
R Lamp (LED)
DPWB-A135CBKZ
DPWB-A150CBKZ
DC 14.5V
DC 14.5V
75mA, white LED Lamp
125mA, white LED Lamp
LED Operation FPWB-A499CBKZ DC 14.5V Blue LED
Compressor EG85HLP 110-127V/60Hz Cooling capacity : 248W (50Hz)
Main coil : 1.75 Ω
Aux. coil : 6.65 Ω
(at 25 °C)
Starting Relay PTH7M4R7M 50/60 Hz 4.7 ±0.94Ω (at 25 °C)
Overload Relay(Protector) 4TM771RPBZZ-53 — Open/ Close : 130±5.0 / 61±9.0 °C
Main PWB FPWB-A511CBKZ 100-127V Control by MPU
Ionizer-K(Plasmacluster unit) FTRN-A014CBKZ DC 12V —
ITEMS TYPE NAME RATING SPECIFICATIONS
R Thermistor
F Thermistor
Defrost Thermistor
—
—
—
DC 5V
DC 5V
DC 5V
R0 = 6.4 kΩ, B(0) = 3811
R0 = 6.4 kΩ, B(0) = 3811
R0 = 15 kΩ, B(0) = 3811
Thermo. fuse 12Y 250V 2A Working temp. : 76 °C
Defrost heater — 110-120V 77.7Ω 160W at 115V
Fan motor FBA12J15VXD DC 15V —
F Door switch
R Door switch
D3D-211
D3D-211
250V 0.5A/125V 1A
250V 0.5A/125V 1A
3 Terminals lever type
3 Terminals lever type
R Lamp — 120V 15W #187 Straight Terminal, Pitch 6
Compressor EG85HLP 110-127V/60Hz Cooling capacity : 248W (50Hz)
Main coil : 1.75 Ω
Aux. coil : 6.65 Ω
(at 25 °C)
Starting Relay PTH7M4R7M 50/60 Hz 4.7 ±0.94Ω (at 25 °C)
Overload Relay(Protector) 4TM771RPBZZ-53 — Open/ Close : 130±5.0 / 61±9.0 °C
Main PWB
VR PWB
FPWB-A513CBKZ
FPWB-A506CBKZ
100-127V
DC 5V
Control by MPU
—
To Next Page
