Sharp SJ-PT51R-HS Service Manual

SJPT55RHS
9 – 1
SJPT55RHS
Service Manual
CHAPTER 9. ASSEMBLING PROCEDURES OF MAIN PARTS AND CAUTIONS
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY REPAIRING.

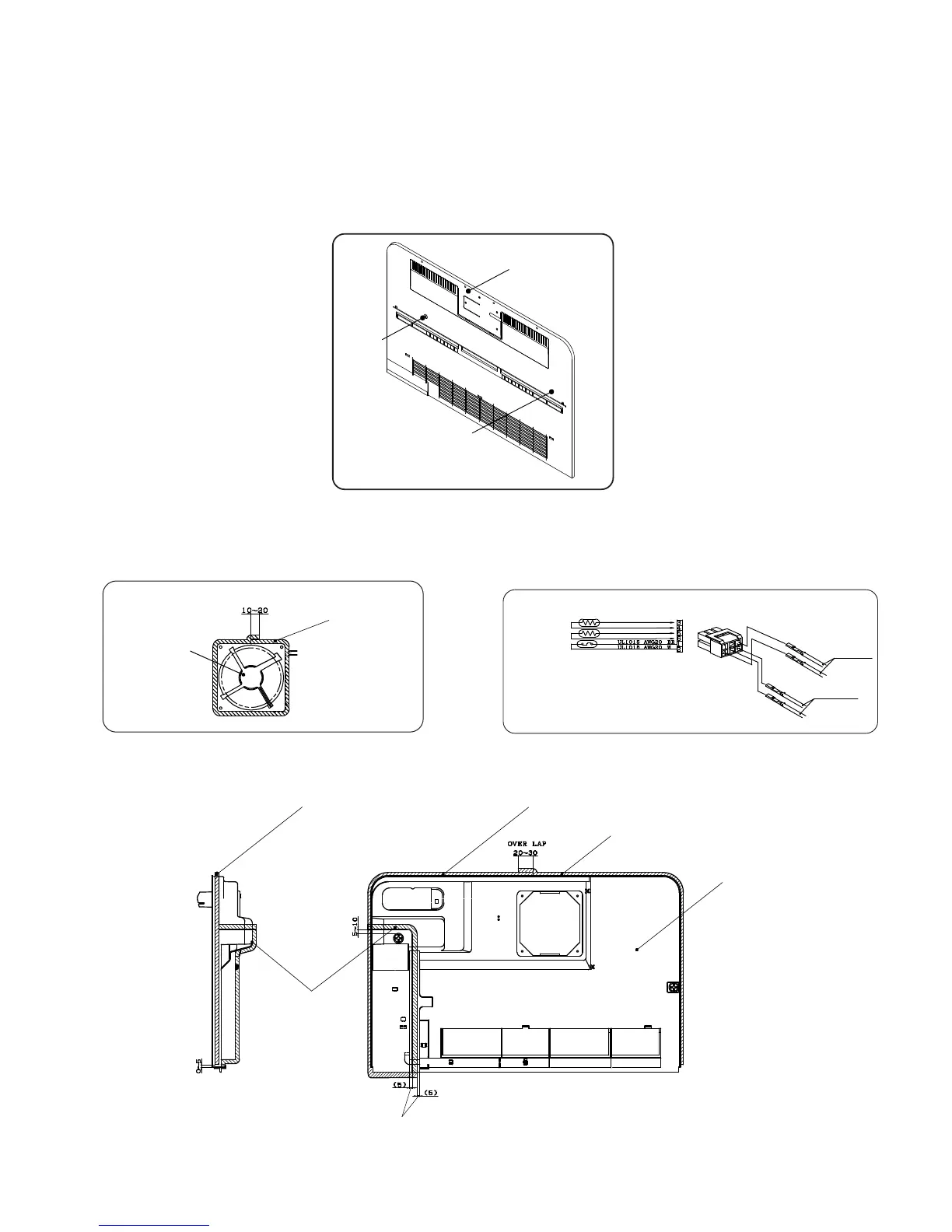

[1] FAN LOUVER AND E.V COVER ASSEMBLY
1. How to remove the Fan louver
1) Take out 2 screws with screw driver.
2) Pull the Fan louver toward yourself to take off.
Figure A-1
2. E.V cover assembly
1) Stick E.V cover sealer d to F fan motor. (Figure A-2)
Figure A-2
2) Insert terminal F-Thermistor and Def-thermistor in the housing.
(Figure A-3)
Figure A-3
3) Stick E.V cover sealer a and c to E.V cover. (Figure A-4)
Figure A-4
Screw
Screw
Fan louver
F fan motor
EV cover sealer d
OVER LAP
YLP-06V-B (VO)
F-THERMISTOR
DEF-THERMISTOR
FUSE ASS’Y
F-THERMISTOR
DEF-THERMISTOR
E.V cover sealer a
E.V cover sealer a
E.V cover sealer c
E.V cover sealer a
E.V cover
ABOUT THE SAME
