Page 8 SHARP SL-C1000/3000/3100
///TRIsoft OHG SL-C1000/3000/3100 Quickstart
Startup

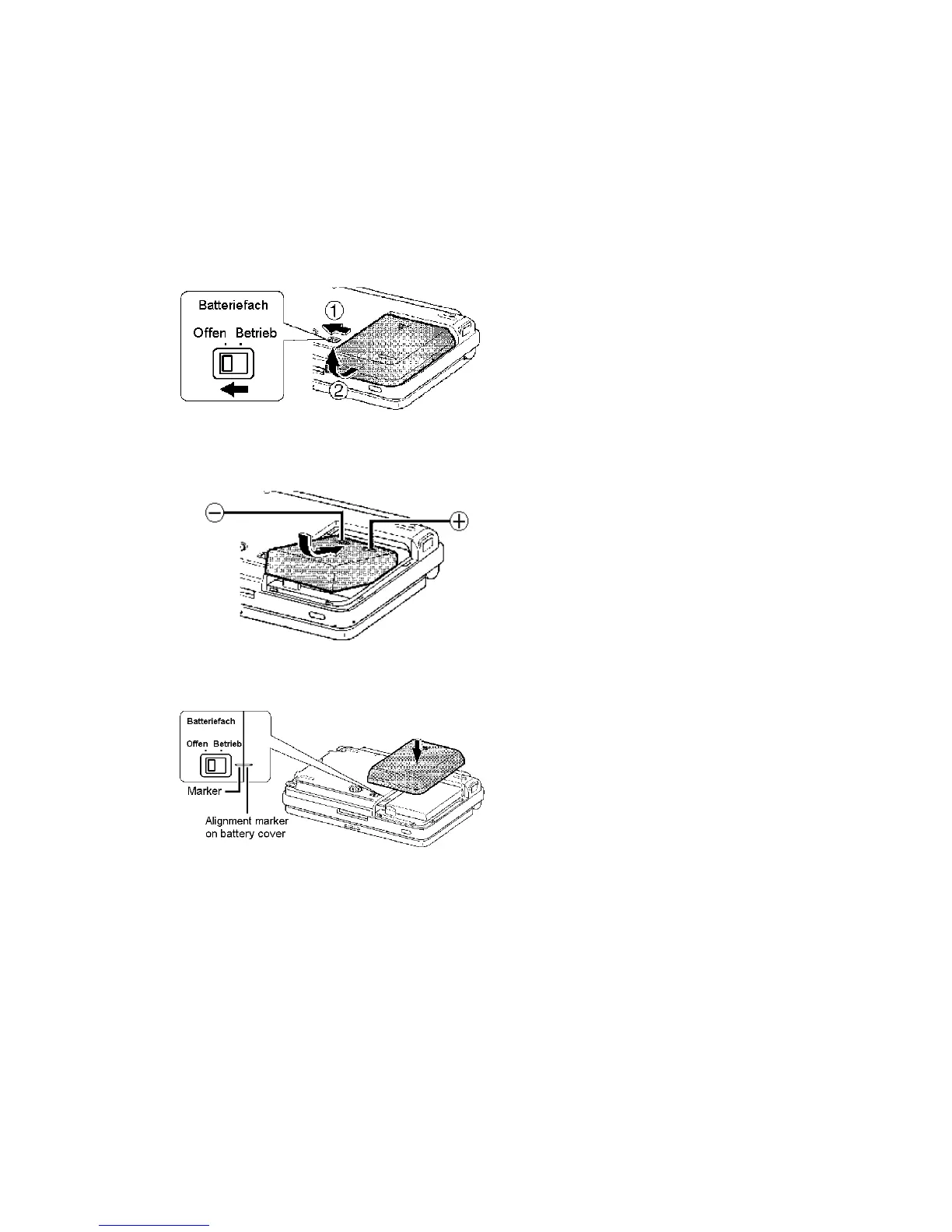

Insert the battery
Unlock the lower cover by sliding the the
switch for the interlock of the battery
compartment (1) to the left. Detach the
cover in direction (2).
Insert the battery as shown in the
picture. For the battery to fit tightly, press
in direction of the arrow on the end
leading to the border of the enclosure.
Put the cover for the battery
compartment back onto the device.
There is a marking dash at the border for
orientation which should be aligned to
the border of the compartment.
Lock the cover by sliding the switch to
the right.
Charging the battery
You should now connect the power supply with the Zaurus (the AC-in is located on the
backside of the device).
The Zaurus will be charged and in the upper left corner should glow a yellow charging
LED.
Please charge the Zaurus for some time, before turning it on.
