Sharp SMD2499FS Installation Manual

5 E

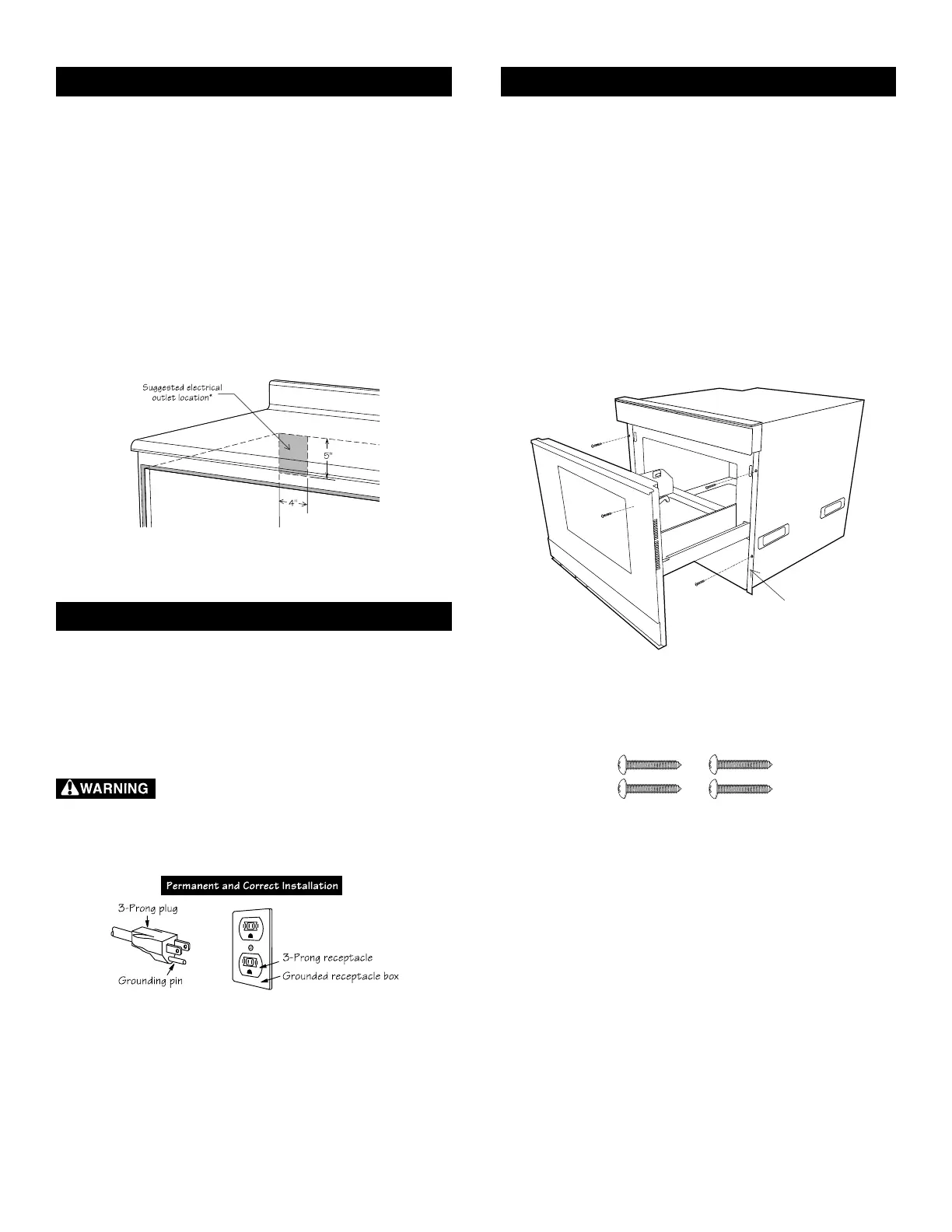

ELECTRICAL OUTLET
The electrical requirements are a 120 volt 60 Hz, AC only, 15
amp. or more protected electrical supply. It is recommended that
a separate circuit serving only this appliance be provided.
The drawer is equipped with a 3-prong grounding plug. It must
be plugged into a wall receptacle that is properly installed and
grounded. Should you only have a 2-prong outlet, have a qualied
electrician install a correct wall receptacle.
Note: If you have any questions about the grounding or electrical
instructions, consult a qualied electrician or serviceperson.
* Can also be installed using an electrical outlet in an adjacent cabinet
within the area where the provided electrical cord can reach.
Always check electrical codes for requirements.
Figure 8
GROUNDING INSTRUCTIONS
This appliance must be grounded. The Convection Microwave
Drawer is equipped with a cord having a grounding wire with a
grounding plug. It must be plugged into a wall receptacle that is
properly installed and grounded in accordance with the National
Electrical Code and local codes and ordinances. In the event of
an electrical short circuit, grounding reduces risk of electric shock
by providing an escape wire for the electric current.
– Improper use of the grounding plug can result
in a risk of electric shock. Do not use an extension cord. If the
power supply cord is too short, have a qualied electrician or
serviceperson install an outlet near the appliance.
DRAWER INSTALLATION
1. Place the Convection Microwave Drawer adjacent to the
wall or cabinet opening. Plug the power supply cord into the
electrical outlet.
2. Carefully guide the Convection Microwave Drawer into the
prepared opening. Avoid pinching the cord between the oven
and the wall.
3. Slide the Convection Microwave Drawer all the way until
the mounting ange is ush with the face of the cabinet. See
Figure 9.
4. Open the drawer. Using the 4 holes on the drawer as a template,
pre-drill the cabinet using a
1
/16" bit. See Figure 9.
5. Secure the drawer with the 4 screws supplied. See Figure 10.
Side
Rail
Figure 9
Parts supplied - 4 Screws
Figure 10

Sharp SMD2499FS Specifications

General

Style	drawer
Color	stainless steel
Total Capacity	1.4 cu. ft.
Convection	yes
Power Levels	11
Sensor Cooking	yes
Quick Start	yes
Timer	yes
Wi-Fi	yes
Remote Control	yes
Max Power Consumption	900 watts
Microwave Power	900 watts
Voltage	115 volts
Current	15

Weight and Dimensions

Depth	20-7/8"; 27"; 20 7/8 inch; 23-1/2"; 16-7/16"
Height	19 1/2 inch; 19-3/4"; 8-3/4"; 19-1/2"; 24-1/2"; 19-3/8"
Width	23-5/8"; 27-1/2"; 22-3/8"; 23 5/8 inch; 23-7/8"; 16-15/16"
