Sharp SMO1854DS Service Manual

4
1 2 3 4 5 6 7 15
12 11 10 9 8
13
14
16

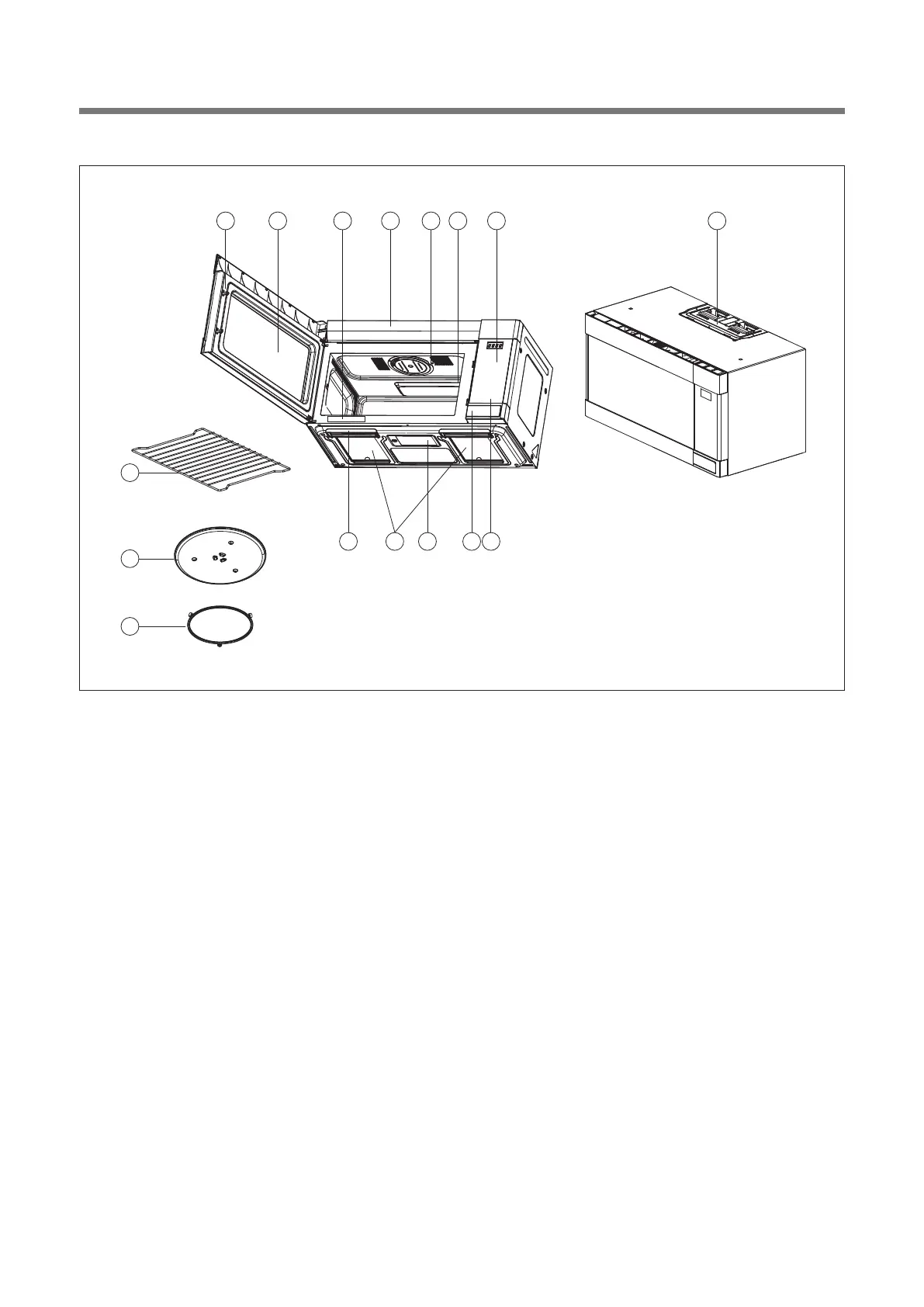

1 DOOR LATCHES
2 WINDOW with METAL SHIELD - Screen allows
cooking to be viewed while keeping microwaves
confined in oven.
3 MODEL NUMBER PLATE - Located on the front
wall of the microwave oven.
4 CHARCOAL FILTER (behind Vent Grille)
5 OVEN LIGHT
6 WAVEGUIDE COVER
Protects the microwave outlet from splashes of
cooking foods.
7 TOUCH CONTROL PANEL and DIGITAL
DISPLAY - For detailed information on each
feature, see Features Diagram section,
page 5,6.
8 HOOD CONTROLS
Vent Fan - Press Turbo, High, Low or Off.
Light - Press On or Off
9 DOOR BUTTON - To open the door push the door
open button.
0 COOKTOP LIGHT
q GREASE FILTERS
w HANDLE FILTERS - Use to insert Grease Filters.
e METAL RACK - Use for extra space when cooking
with more than one container at the same time.
r TURNTABLE / GLASS TRAY - Must be in place
on top of roller tray when using the microwave
oven.
t VENTILATION MOTOR - Your microwave oven is
designed for adaptation to the following three types
of ventilation.
(Recirculation ventilation system, Vertical
ventilation system,Horizontal ventilation system)
See installation manual to Select the type of
ventilation required for your installation.
y ROLLER GUIDE - Placed first on the bottom of the
microwave and support the glass tray.
2. FEATURES DIAGRAM

Sharp SMO1854DS Specifications

General

Style	over the range
Color	stainless steel
Total Capacity	1.8 cu. ft.
Convection	no
Power Levels	10
Fan Speeds	3
Venting Type	non ducted
Sensor Cooking	yes
Quick Start	yes (1-6 minutes)
Control Type	touch control
Child Lock	yes
Timer	yes
Interior Light	led; yes
Microwave Power	1, 100 watts

Weight and Dimensions

Depth	15 9/10 inch
Height	16 3/10 inch
Width	29 9/10 inch
