Sharp SuperSteam Plus SSC3088AS User Manual

SSC3088AS
10

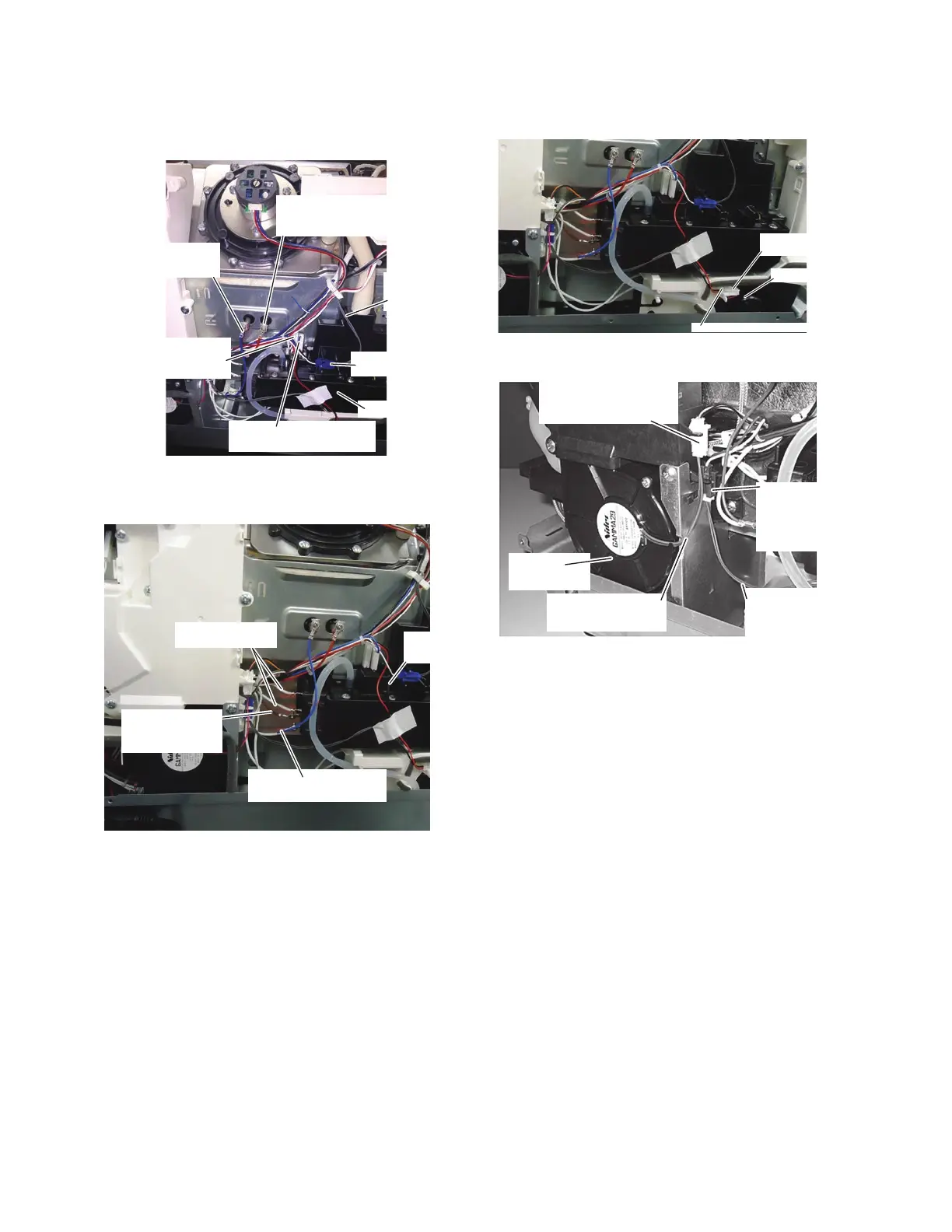

● SH Heater (lower), Engine liquid-level sensor , Thermistor
(oven)
SF heater (lower)
engine unit side:
Red (main harness)
SH heater (lower):
Blue (main harness)
Thermistor
harness
(oven)
Controlling harness
connector (blue case)
Engine unit
Engine water level sensor
(heater side): White
(controlling harness)
Engine water level sensor:
Blue (controlling harness)
●
E Heater, Engine thermo
E heater (rear plate side):
Blue/white (main harness)
Engine
unit
E heater
(oven side):
Brown (main harness)
Engine motor: White
(main harness)
●Sirocco motor (left)
Harness of the
sirocco motor (left)
Sirocco motor (left)
Controlling harness connector (white case)
●
Sirocco motor (right)
Thermistor
(engine)
harness
Connector
(blue case)
Controlling
harness
Sirocco
motor (right)
Controlling harness
Connector (white case)
Harness of sirocco
motor (right)
