Sharp SuperSteam Plus SSC3088AS User Manual

SSC3088AS
9
SUPER STEAM COMPONENTS

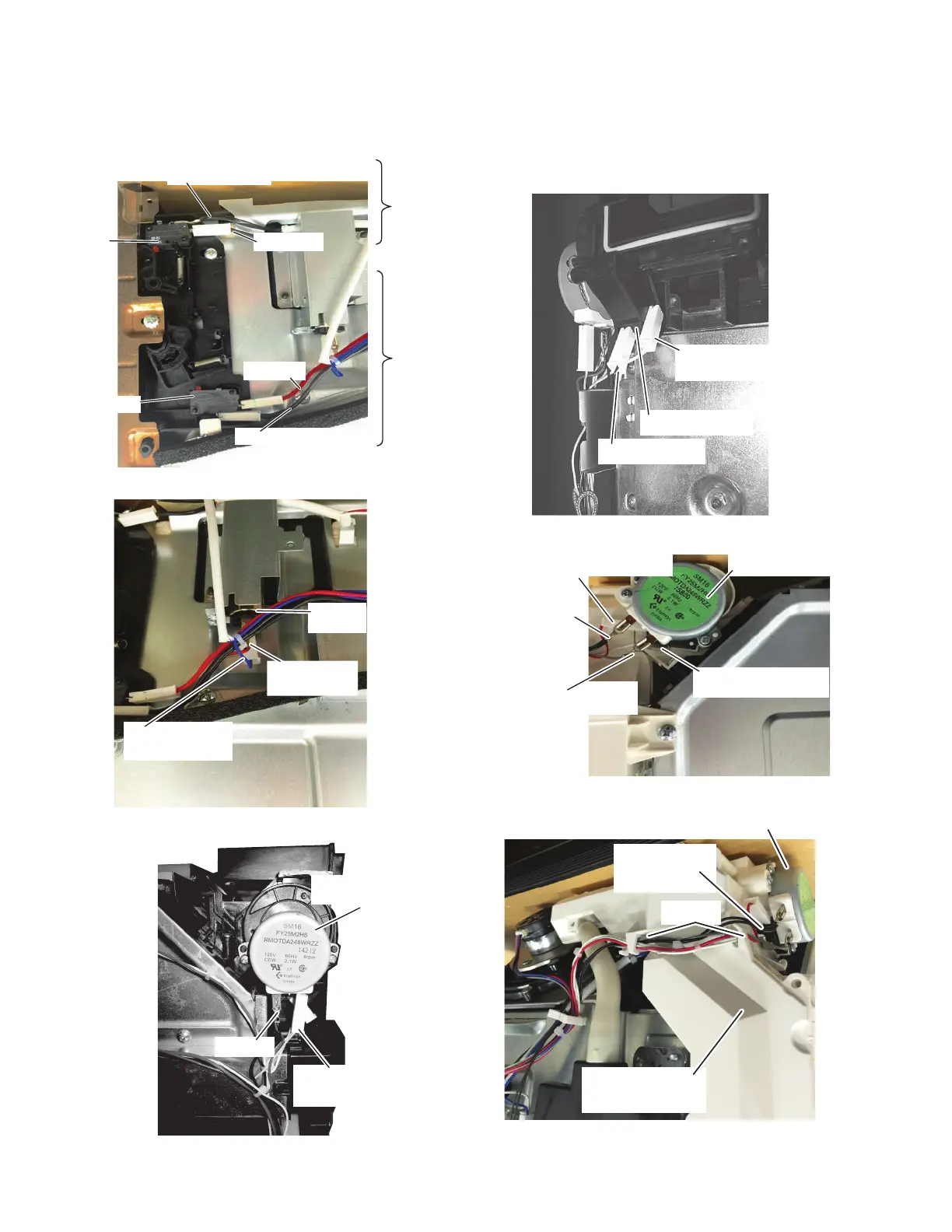

[1] Wiring method of each part
● Latch SWK
●
Oven lamp
●
D Motor (exhaust)
Red/black
Yellow
(rear plate side)
(main harness)
D motor
(exhaust)
●
Damper SW (exhaust)
White/white (COM.)
(controlling harness)
Damper SW (exhaust)
Black (N.C.) (outside)
● D Motor (Intake), Damper SW (Intake)
D motor
Damper SW (COM): White/white
(controlling harness)
Gray
(main harness)
Black (upper side)
(main harness)
Damper SW (NO.) (upper side):
Red (controlling harness)
●Harness to D Motor, Damper SW
Upper Air supply
duct cover
Damper SW
Hook
D motor (intake)
Door SW
Main latch SW
Black/Black (COM.)
Black (COM.)
Black (NO.)
Controlling
harness
Main
harness
Red (NO.)
Red/brown
(main harness)
Oven
lamp
Blue (oven side)
(main harness)
Red/brown
(main harness)
Oven
lamp
Blue (oven side)
(main harness)
Red/brown
(main harness)
Oven
lamp
Blue (oven side)
(main harness)
