・The oven is
not heated.
・Even if the tank
is filled with
water, the display
shows “water is
not enough” and
heating is not
started.
・
The tank is inserted fully into place. The tank SW is detected.
・Refer to P28 for what to check when the oven is not heated
ＹＥＳ：Confirmation of the water tank level sensor.・Confirmation of water leakage of the water pathway.
ＮＯ ：Install the tank SW lever correctly
・Water is
not discharged
・Water can be supplied to the engine
ＹＥＳ：Confirmation of the water level sensor
ＮＯ ：Confirmation of the pump motor
・Not power saving
・
The door SW is opened. A screen other than the initial screen appears. The high-temperature indicator is turned on.
ＮＯ ：Replacement of the relay board or the noise filter
・
The damper shaft of the SH damper (sub-part of oven DK, refer to the photograph on P50) is fluctuating.
ＹＥＳ：The damper SW (SH) contact is conducting electricity.
ＮＯ：It comes to about 120V between the terminals of the D motor (SH)
・Contact 08 appears
ＹＥＳ：
Check for any disconnection of the harness going to the
damper SW (SH) or replace the relay board.
ＮＯ：
Replacement of damper SW (SH).
ＹＥＳ：The D motor (SH) rotates singly.
ＮＯ：
Checking the controlling harness or replacing the relay board.
ＹＥＳ：
Checking the SH damper shaft and the damper K (SH) (refer to the figure on P50)
ＮＯ：Replacement of the D motor (SH).
ＹＥＳ：
Confirmation of water leakage of the water pathway
ＹＥＳ：Tube replacement
NO：
Confirmation of the water level sensor wiring
YES：Replacement of the engine unit
NO：Correct the water level sensor wiring
NO：Confirmation of tube bending
ＹＥＳ：Install the tube correctly.
NO：
It comes to about 120V between the pump motor terminals at the
time of water supply (black-blue) or water discharge (black-red).
YES：Replacement of the pump motor
NO：Replacement of the main harness or the relay board
Operation
When
heating
is
started
Others

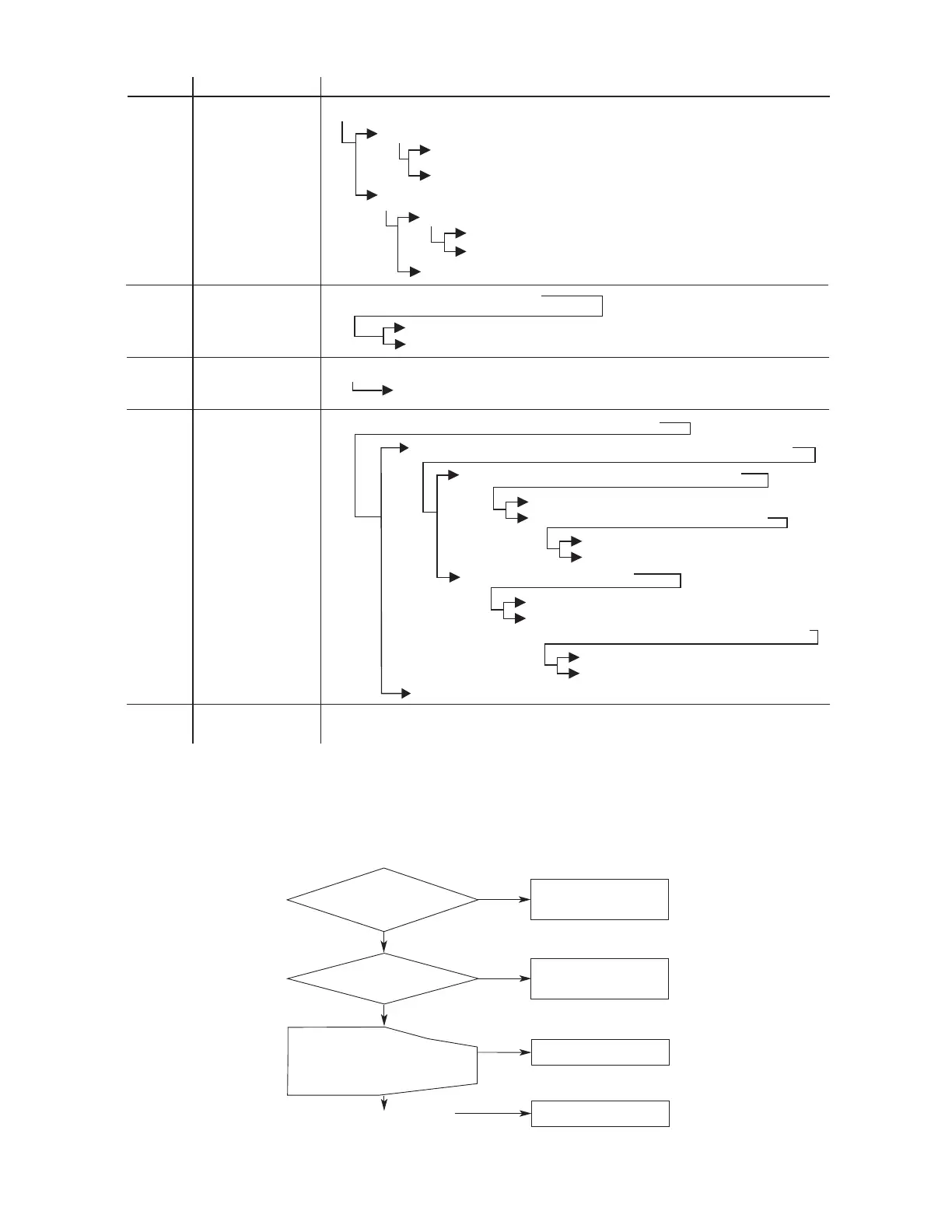

Malfunction How to check
[2] Inspection at the time of 20A fuse blow
Please check the following points if the 20A fuse blows.
Because there are many high-voltage parts in the set main body, please disconnect the power plug when conducting an inspection other than confirm-
ing the operation.
Regarding harness, please also check caulking fault and contact fault.
（Normal operation）
When the door is closed,
is there electricity conducted between
motor SW terminals?
NO
NO
Checking completed
YES
YES
(Fuse blown)
Check Noise Filter
Between N and H = 275 - 415Ω
Between terminal N and LOAD = Short Circuit
Between terminal H and LOAD = Short Circuit
Fuse = Short Circuit
If fuse is open, replace fuse
Replacement of the primary latch SW
Replacement of the primary latch SW
When the door is opened,
is there electricity conducted between
the primary latch SW COM-NOs?
To Next Page
