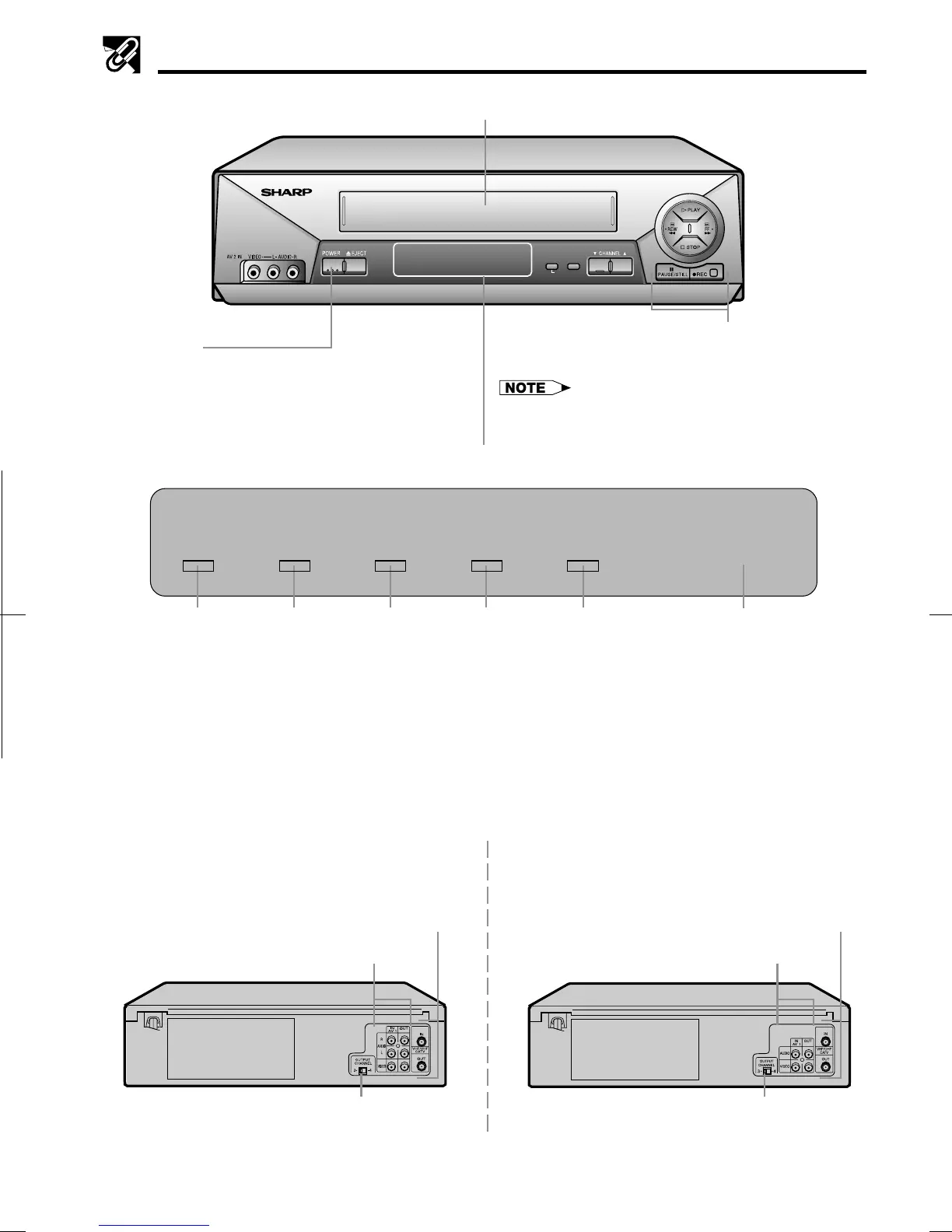

Major Components of Your VCR
[Front]
LED Indicator (explained throughout the operation instruction)
Cassette compartment (see Playback/Recording)
Basic function controls
(see Playback/Recording)
! POWER LED indicator
This indicator lights up whenever the VCR is turned on.
@ TIMER LED indicator
This indicator lights up when the VCR is set for timer
recording, Simple Recording Timer and Recording with
the Timer.
# VCR LED indicator
This indicator lights up when selecting “VCR” by using
the TV/VCR button.
$ REC LED indicator
This indicator lights up during recording. This indicator
flashes during REC-Pause.
% TAMPER PROOF (ÿ) LED indicator
This indicator lights up when the set mode is locked.
^ Remote Sensor
Point Remote Control at this window.
[Rear]
3 4 OUTPUT CHANNEL selector
(see Setting the 3 4 Output Channel Selector)
Connection terminals (see Tape Dubbing)
Connection terminals (see Connecting the VCR and
Cable TV Connections)
3 4 OUTPUT CHANNEL selector
(see Setting the 3 4 Output Channel Selector)
Connection terminals (see Tape Dubbing)
Connection terminals (see Connecting the VCR and
Cable TV Connections)
(VC-H810U, VC-H811U, VC-H820U)
(VC-A410U, VC-A411U, VC-A420U)
TAMPER
POWER TIMER VCR REC PROOF
!@#$% ^
(VC-H820U)
The design may be slightly different depending on the
model.
