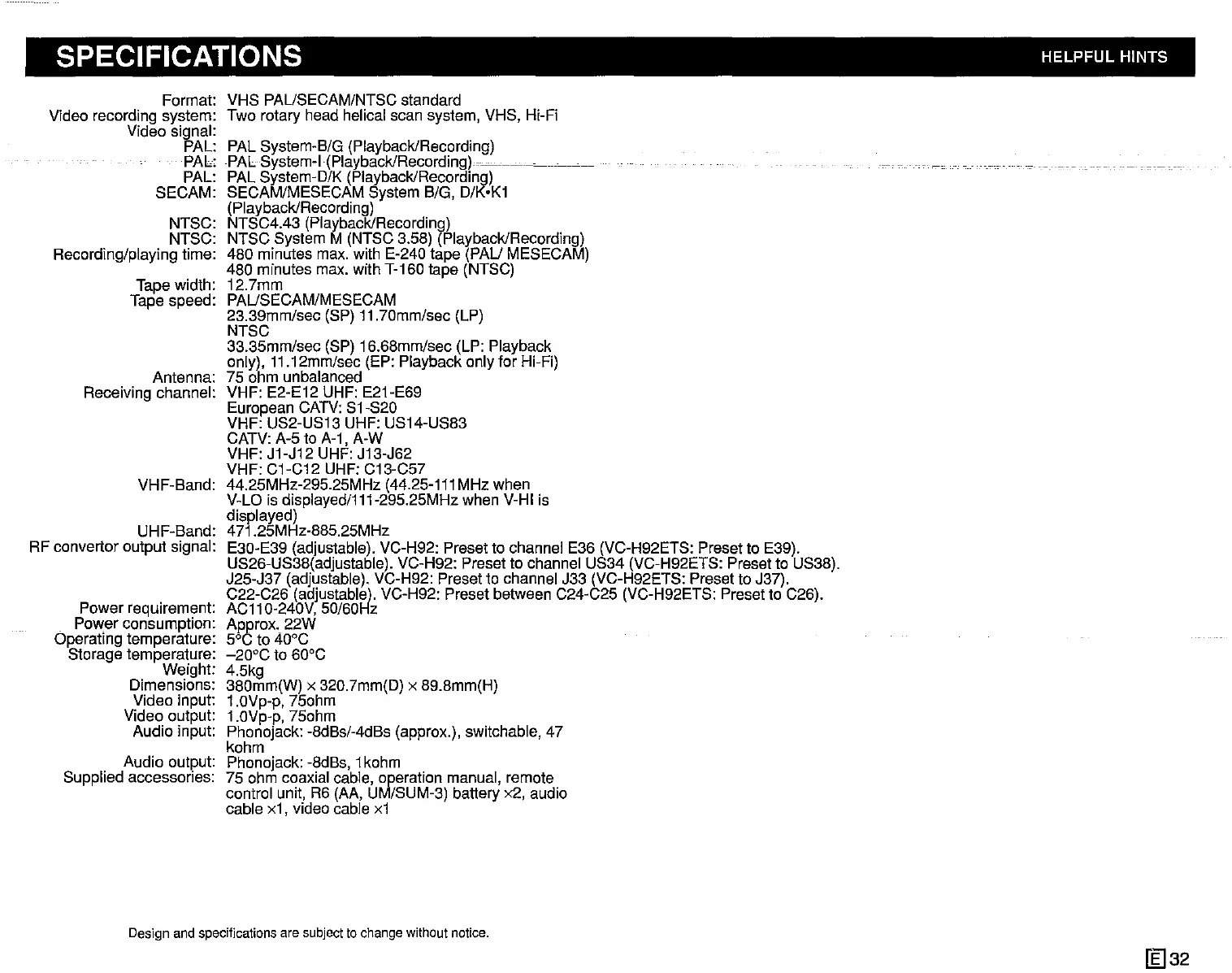

SPECIFICATIONS HELPFUL HINTS
VHF-Band:
Antenna:
Receiving channel:
UHF-Band:
RF convertor output signal:
Power requirement:
_ Power consumption:
Operating temperature:
Storage temperature:
Weight:
Dimensions:
Video input:
Video output:
Audio input:
Audio output:
Supplied accessories:
Format: VHS PAUSECAM/NTSC standard
Video recording system: Two rotary head helical scan system, VHS, Hi-Fi
Video signal:
PAL: PAL
System-BIG (Playback/Recording)
PAL: PAL System-I
(Playback/Recording)~c_~c~~_~_~ __
PAL: PAL System-D/K (Playback/Recording)
SECAM: SECAM/MESECAM System
BIG, D/K·K1
(Playback/Recording)
NTSC: NTSC4.43 (Playback/Recording)
NTSC: NTSC System M (NTSC 3.58) (Playback/Recording)
Recording/playing time: 480 minutes max. with E-240 tape (PAU MESECAM)
480 minutes max. with T-160 tape (NTSC)
Tape width: 12.7mm
Tape speed: PAUSECAM/MESECAM
23.39mm/sec (SP) 11.70mm/sec (LP)
NTSC
33.35mm/sec (SP) 16.68mm/sec (LP: Playback
only),
11.12mm/sec (EP: Playback only for Hi-Fi)
75 ohm unbalanced
VHF: E2-E12 UHF: E21-E69
European CATV: S1-S20
VHF: US2-US13 UHF: US14-US83
CATV: A-5 to A-1, A-W
VHF: J1-J12 UHF: J13-J62
VHF: C1-C12 UHF: C13-C57
44.25MHz-295.25MHz (44.25-111MHz when
V-LO is displayed/111-295.25MHz when V-HI is
displayed)
471.25MHz-885.25MHz
E30-E39 (adjustable). VC-H92: Preset to channel E36 (VC-H92ETS: Preset to E39).
US26-US38(adjustable). VC-H92: Preset to channel US34 (VC-H92ETS: Preset to US38).
J25-J37 (adjustable). VC-H92: Preset to channel J33 (VC-H92ETS: Preset to J37).
C22-C26 (adjustable). VC-H92: Preset between C24-C25 (VC-H92ETS: Preset to C26).
AC110-240V,
50/60Hz
Approx.22W
5°C to 40°C
-20°C to 60°C
4.5kg
380mm(W) x 320.7mm(D) x 89.8mm(H)
1.0Vp-p, 750hm
1.0Vp-p, 750hm
Phonojack: -8dBs/-4dBs (approx.), switchable, 47
kohm
Phonojack: -8dBs, 1kohm
75 ohm coaxial cable, operation manual, remote
control unit, R6 (AA, UM/SUM-3) battery x2, audio
cable x1, video cable x1
Design and specifications are subject to change without notice.
