3-6 Change of horizontal spindle speed
Move lever (Fig.10 (1)) to position . or depending upon the spindle
speed range required, and move lever (Fig.10 (2)) to the position of the particular speed
required. Speed changes must not be made while the main motor is running.
To facilitate changing spindle speed, stop main motor by depressing horizontal spindle
stop button (Fig.8 (5)). Turn spindle rotated direction switch (Fig.10 (3)) to position 1 or 2
and then intermittently press the inching button (Fig.10 (4)), at the same time moving lever
(Fig.10 (2)) until the required gears are engaged. It should be noted that the feed motor will
automatically stop when the inching button is operated.

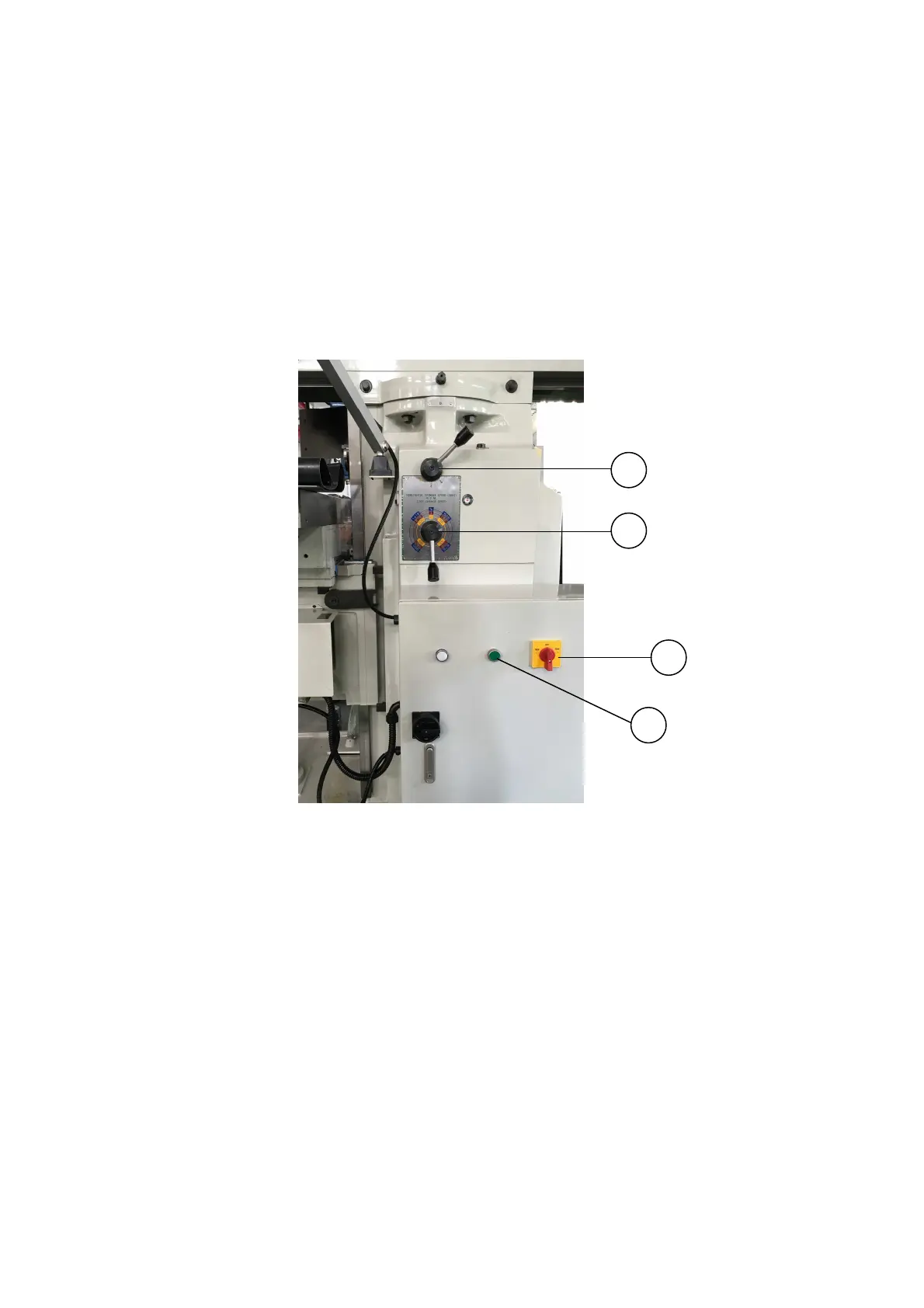

Fig 10
