3-15-8 Operation of dog

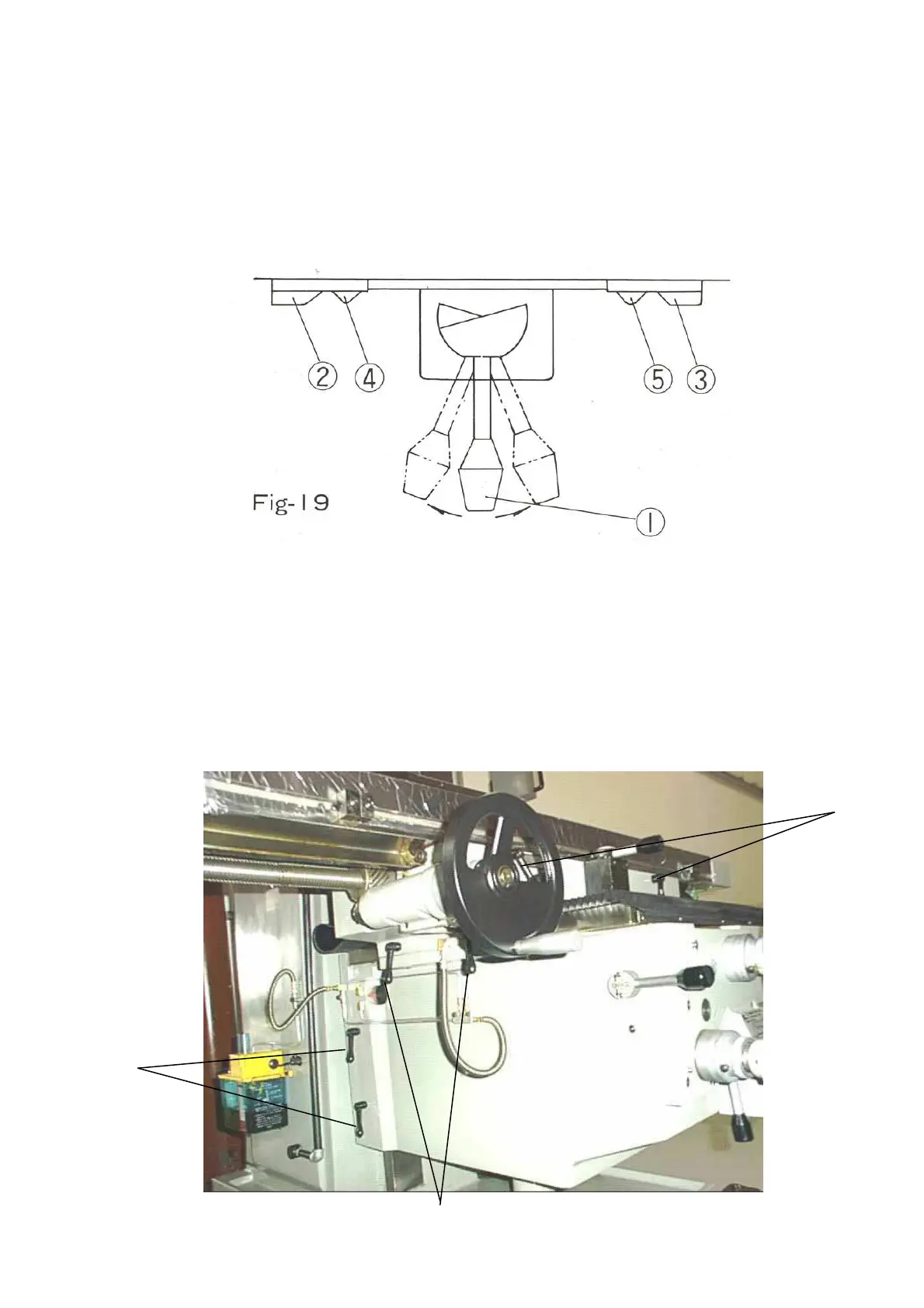

The auto-stop longitudinal feed is worked by dogs which are located in the T-slot front
of table. The two fixed dogs (Fig.19 (2) (3)) on the outsides are safety stops which prevent
over travel. These should not be moved.
The two inside dogs (Fig.19 (4) (5)) can be set at any position so that the table stops
automatically in set range.
3-15-9 Clamping of sliding surface
(1) When longitudinal feed is not need, turn two clamp lever (Fig.20 (3))
clockwise at front of saddle to tighten the table.
(2) When vertical feed is not in use, turn clamp lever (Fig.20 (2)) at rear of knee
to tighten the knee.
(3) When cross-feed is not in use, pull clamp lever (Fig.20 (1)) under the left side
of the saddle toward operator to lock the saddle.
Fig.20
②
③
