VL-PDl U

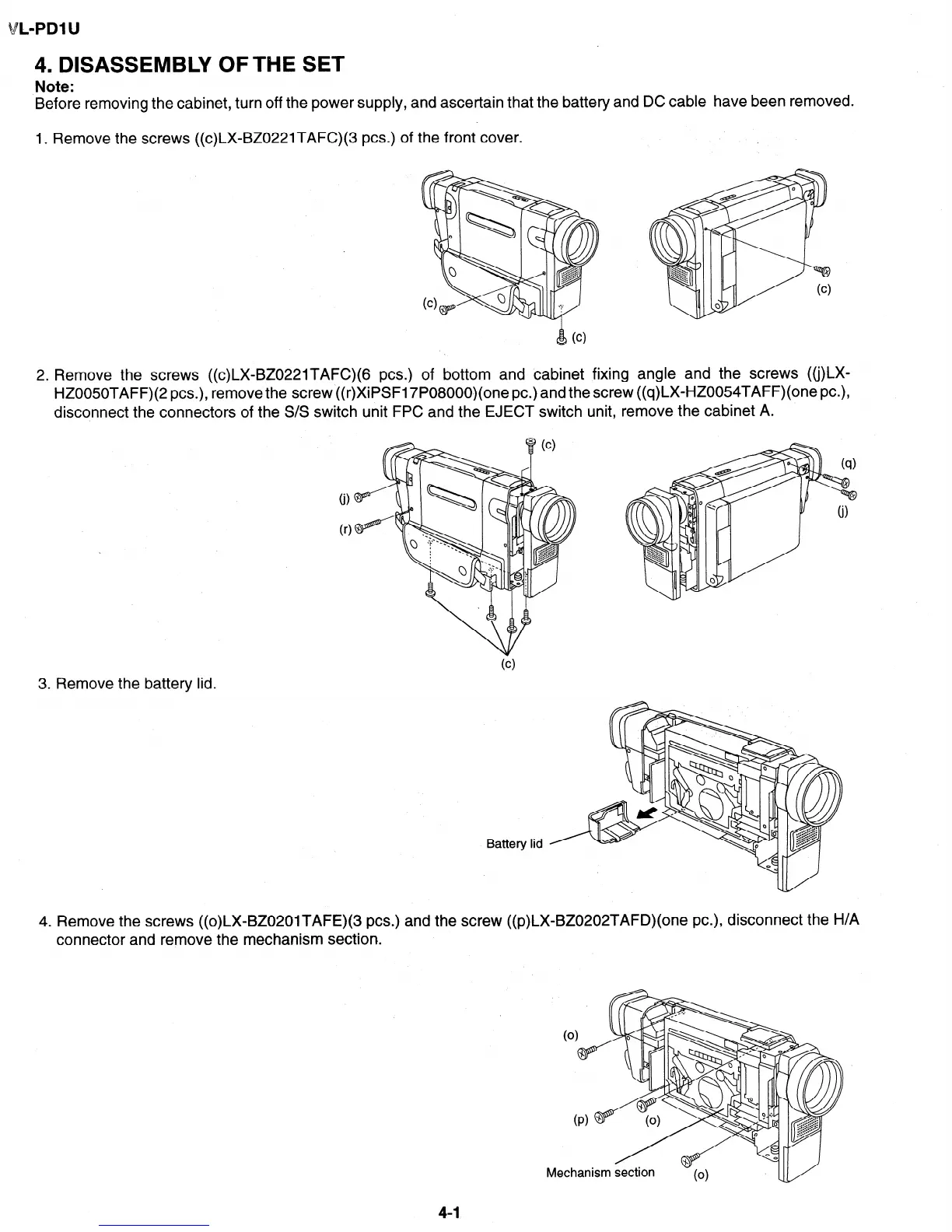

4. DISASSEMBLY OFTHE SET
Note:
Before removing the cabinet, turn off the power supply, and ascertain that the battery and DC cable have been removed.
1. Remove the screws ((c)LX-BZ0221TAFC)(3 PCS.) of the front cover.
2. Remove the screws ((c)LX-BZ0221TAFC)(G PCS.) of bottom and cabinet fixing angle and the screws ((j)LX-
HZOO50TAFF)(2 PCS.), remove the screw ((r)XiPSF17P08000)(one PC.) and the screw ((q)LX-HZOO54TAFF)(one PC.),
disconnect the connectors of the S/S switch unit FPC and the EJECT switch unit, remove the cabinet A.
.
0)
0
r
3. Remove the battery lid.
Battery lid
4. Remove the screws ((o)LXgBZ0201TAFE)(3 PCS.) and the screw ((p)LX_BZO202TAFD)(one PC.), disconnect the H/A
connector and remove the mechanism section.
4-1
