Sharp VL-PD3S User Manual

9-19
VL-PD3S/H/E VL-PD3S/H/E
Item
Adjustment method

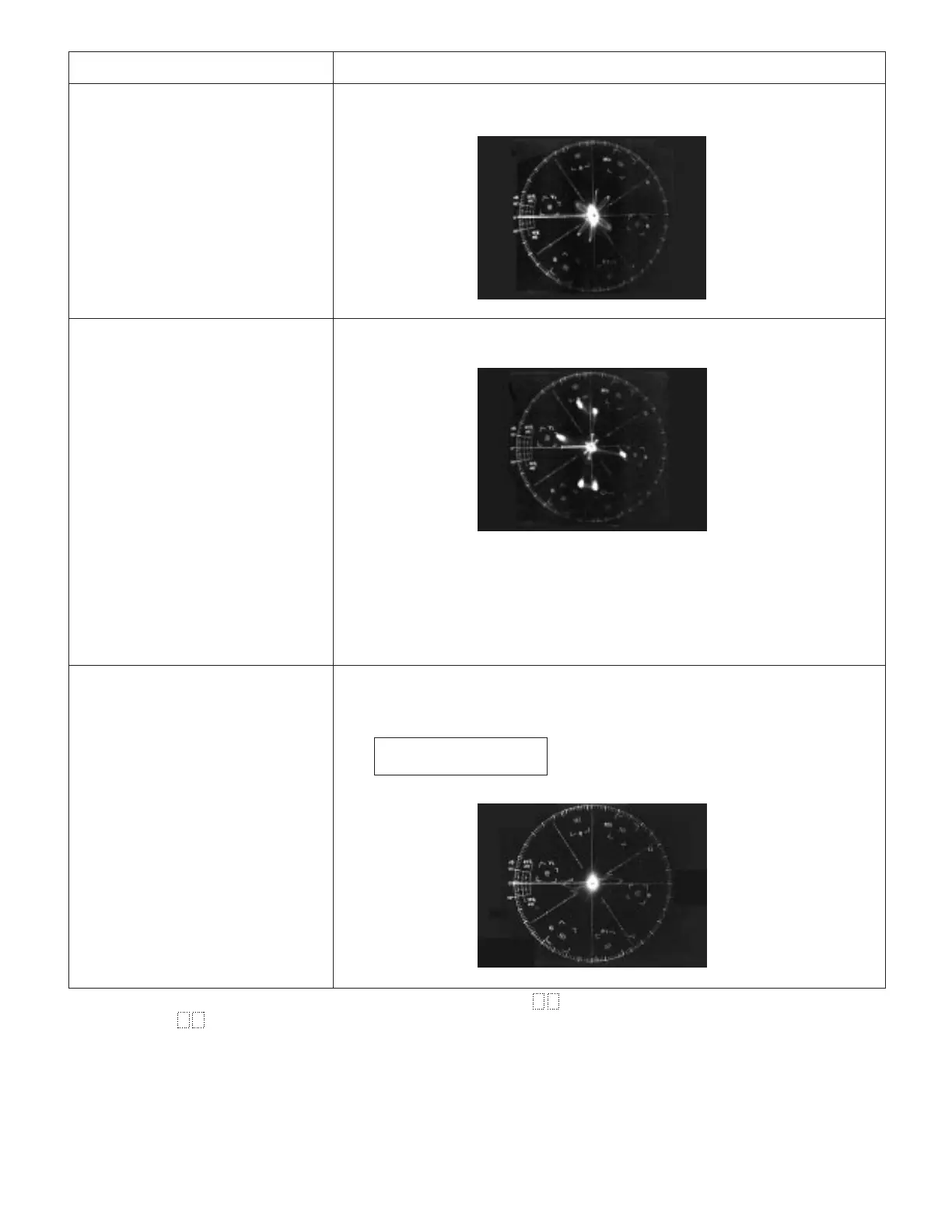

(1) White balance adjustment is performed repeatedly.
(1)The color temperature conversion filter (LB165) is mounted in front of lens.
(2)Indication of vector scope is observed in the grey scale standard record state, and
an adjustment is made so that the luminous dots are located in the following
positions:
R-Y 0 ± 5% (burst ratio)
B-Y 0 ± 5% (burst ratio)
After completion of adjustment set the regular operation mode (the data " FF" is written in the address "00B0".)
Write the data " FF" to adress "0133", and power (out of battery ø adapter) ON/OFF. Remove the case of lithium with it, put
back the lithium after that put into power ON/OFF.
(9)Auto white balance adjustment
• Measurement terminal:
EE output
• Address:
"006A" OUTDOOR R
"006C" OUTDOOR B
• Measuring instrument:
Vector scope
• Object:
Grey scale
• Data variation width:
"0000" to "03FF"
(8)Color gain adjustment
• Measurement terminal:
EE output
• Address:
"012B" CGIN RYG
"012D" CGIN BYG
"0128" CMAT RYG
"0126" CMAT BYG
• Measuring instrument:
Vector scope
• Object:
Waveform monitor colour bar
chart
• Data variation width:
"0000" to "00FF"
(7)White balance adjustment
• Measurement terminal:
EE output
• Address:
"0018" INDOOR W/BR
"001A" INDOOR W/BR
• Measuring instrument:
Vector scope
• Object:
Grey scale
• Data variation width:
"0000" to "03FF"
(1) Color gain adjustment is performed repeatedly.
Adjustment address
Red amplitude 2.16 ± 0.05 time (burst ratio) : "012B"
Blue amplitude 1.20 ± 0.05 time (burst ratio) : "012D"
Red phase 104° ± 1° : "0128"
Blue phase 335° ± 2° : "0126"
