1-4: POWER PCB
(
Refer to Fi
g
. 1-4
)
1. Remove the 6 screws
(
1
)
.
2.
Disconnect the followin
g
connector:
(
CP7001
)
.
3. Remove the Power PCB in the direction of arrow
(
A
)
.
4. Remove the 2 screws
(
2
)
.
5. Remove the An
g
le Hin
g
in the direction of arrow
(
B
)
.
DISASSEMBLY INSTRUCTIONS
(1)
Power PCB
(1)
(1)
(2)
(A)
(1)
(1)
(1)
(2)
(B)
Angle Hing

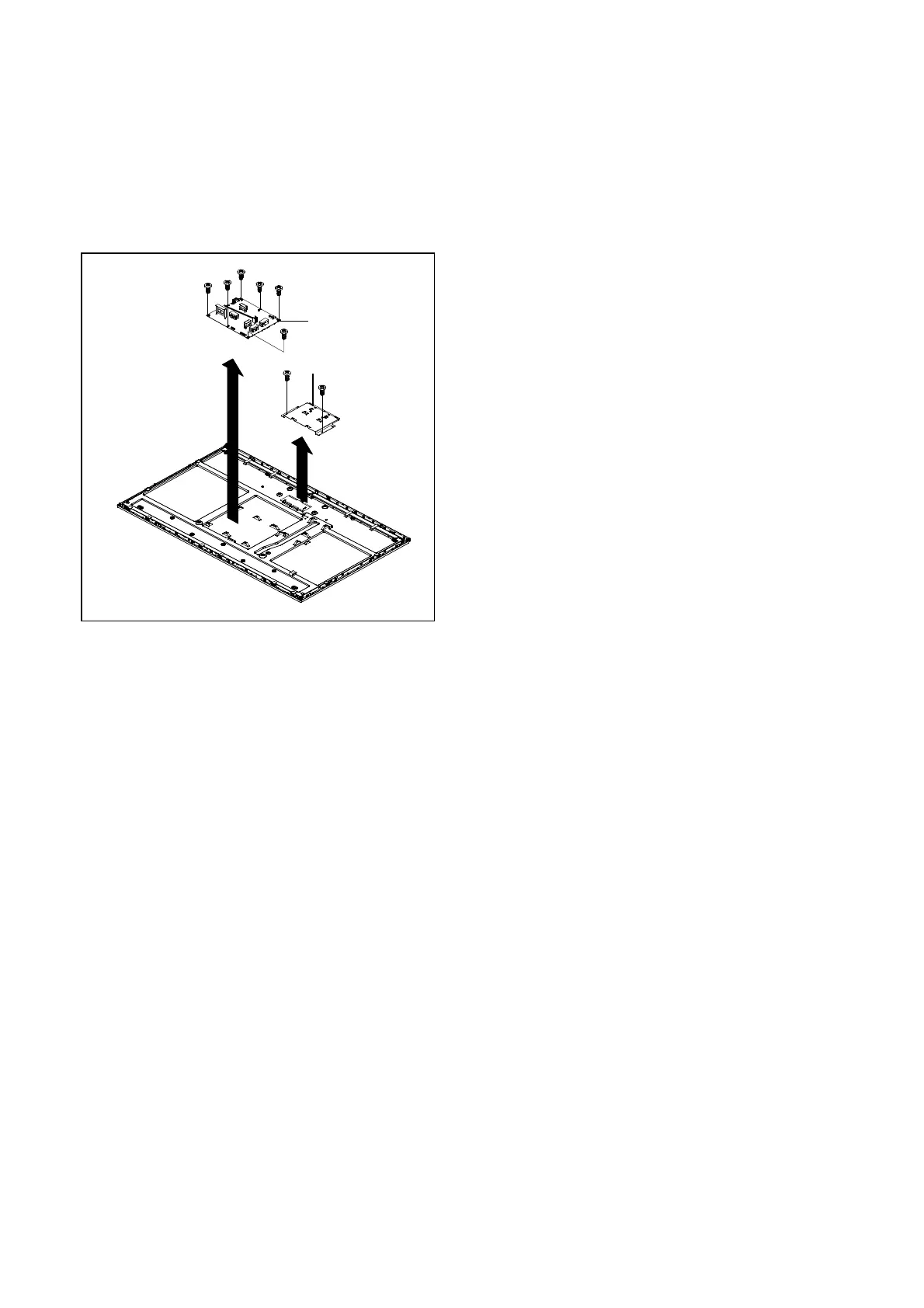

Fig. 1-4
B1-2
