Sharp W/DIVX Series - Waveforms

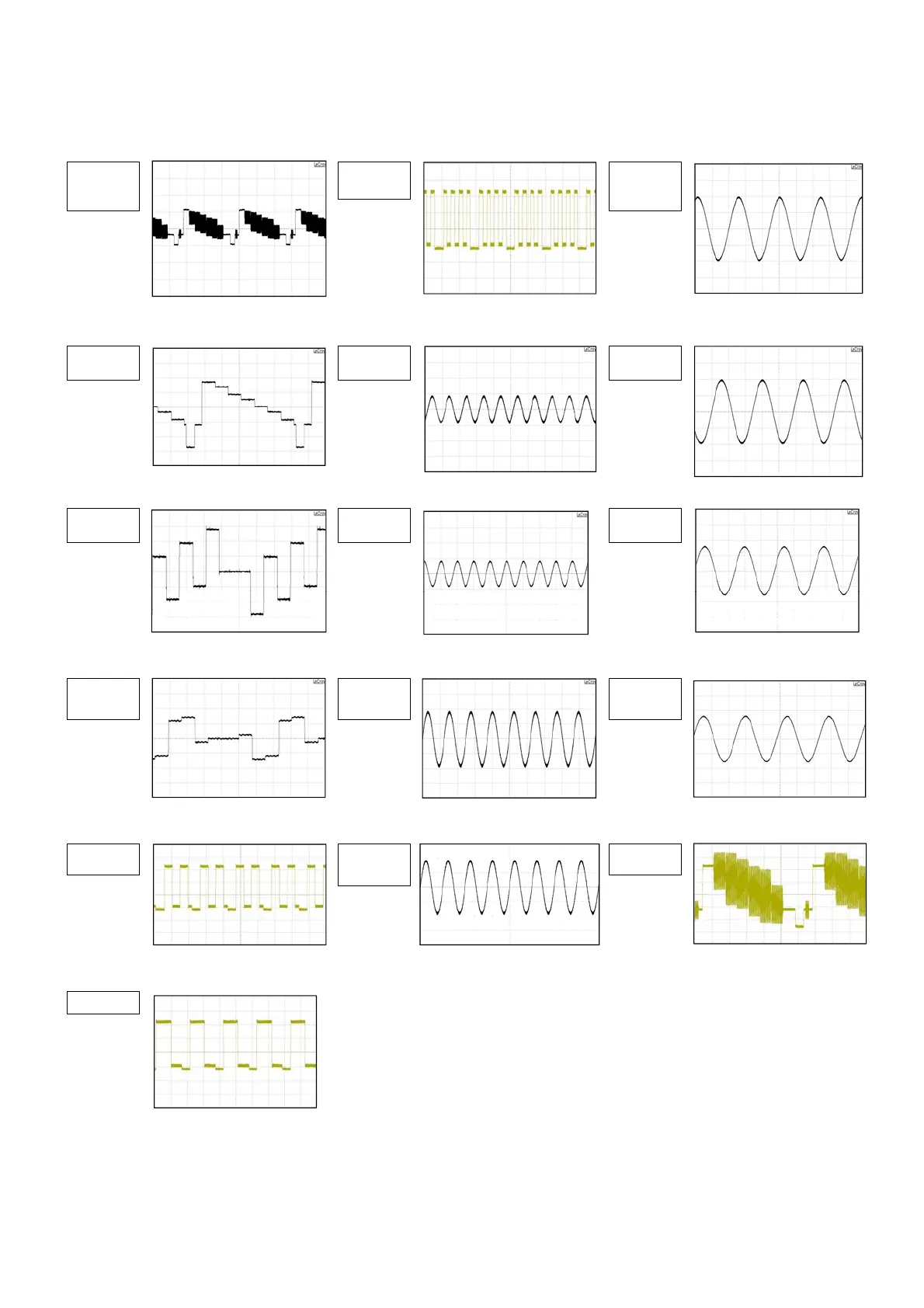

WAVEFORMS
SCALER VIDEO/AUDIO
20us 200mv 2v
500mv 10us 1ms
AV IN
PC VIDEO R
SPEAKER L
200mv 200mv 2v
10us 1ms 1ms
PY AUDIO IN L SPEAKER R
100mv 200mv 500mv
10us 1ms 1ms
PR AUDIO IN R AUDIO OUT L
200mv 200mv 500mv
10us 2ms 1ms
PB PC AUDIO L AUDIO OUT R
200mv 200mv 200mv
10us 2ms 10us
PC VIDEO R PC AUDIO R VIDEO OUT
200mv
10us
PC VIDEO G
Main Board Signal Input/Output.
