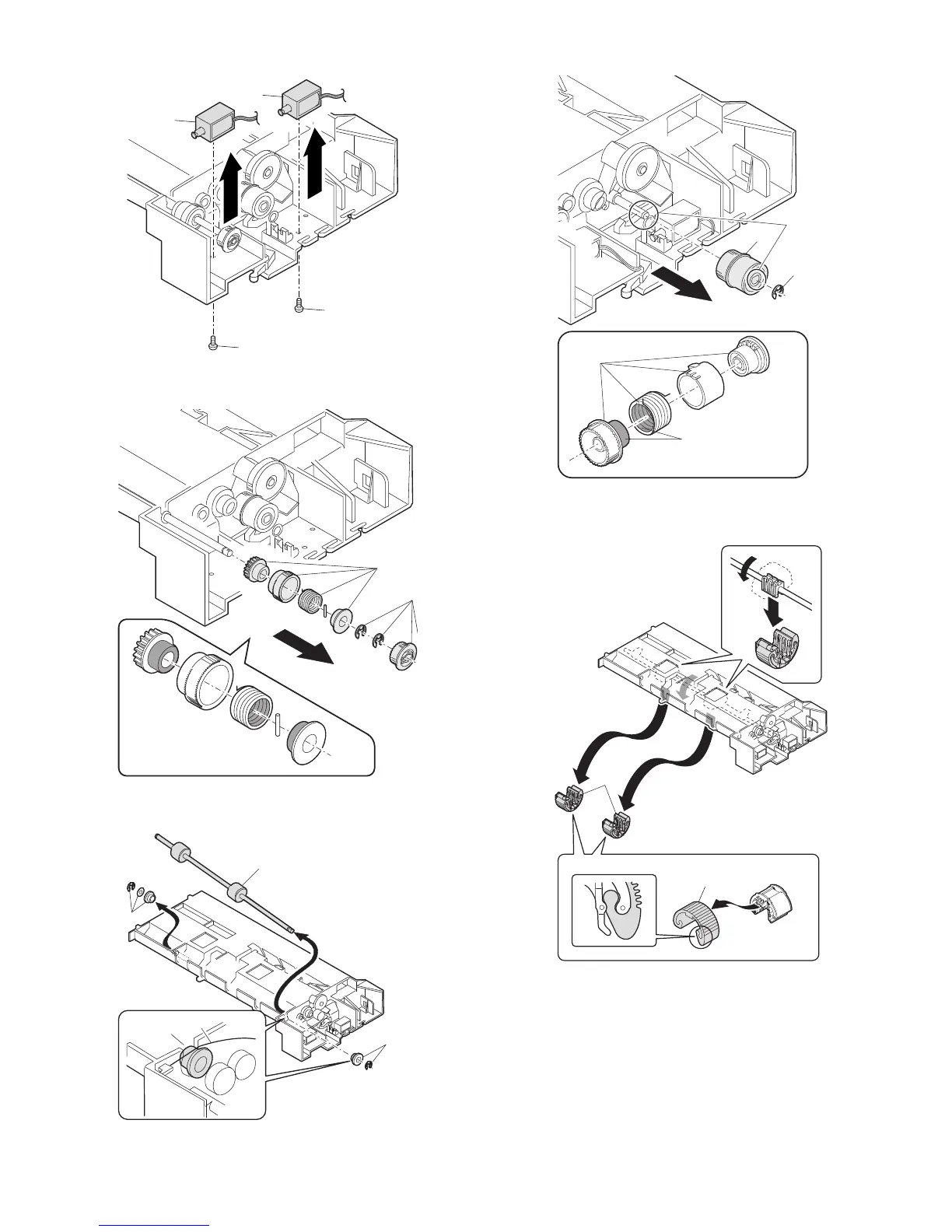

MX-M200D DISASSEMBLY AND ASSEMBLY 11-17
D. 2nd tray paper feed solenoid / Transport solenoid
E.2nd tray transport clutch
F. 2nd tray transport roller
G. 2nd tray paper feed clutch
H. 2nd tray paper feed roller
(1)
(2)
(2)
(1)
(2)
(1
Apply grease (FG-40H)
to the gray area
(UKOG-0004QSZZ).
(1)
(1)
(2)
A
B
(3)
A
(1)
(2)
Apply grease (FG-40H)
to the gray area
(UKOG-0004QSZZ).
(1)
(2)
