MX-M200D DISASSEMBLY AND ASSEMBLY 11-4
• For AB series

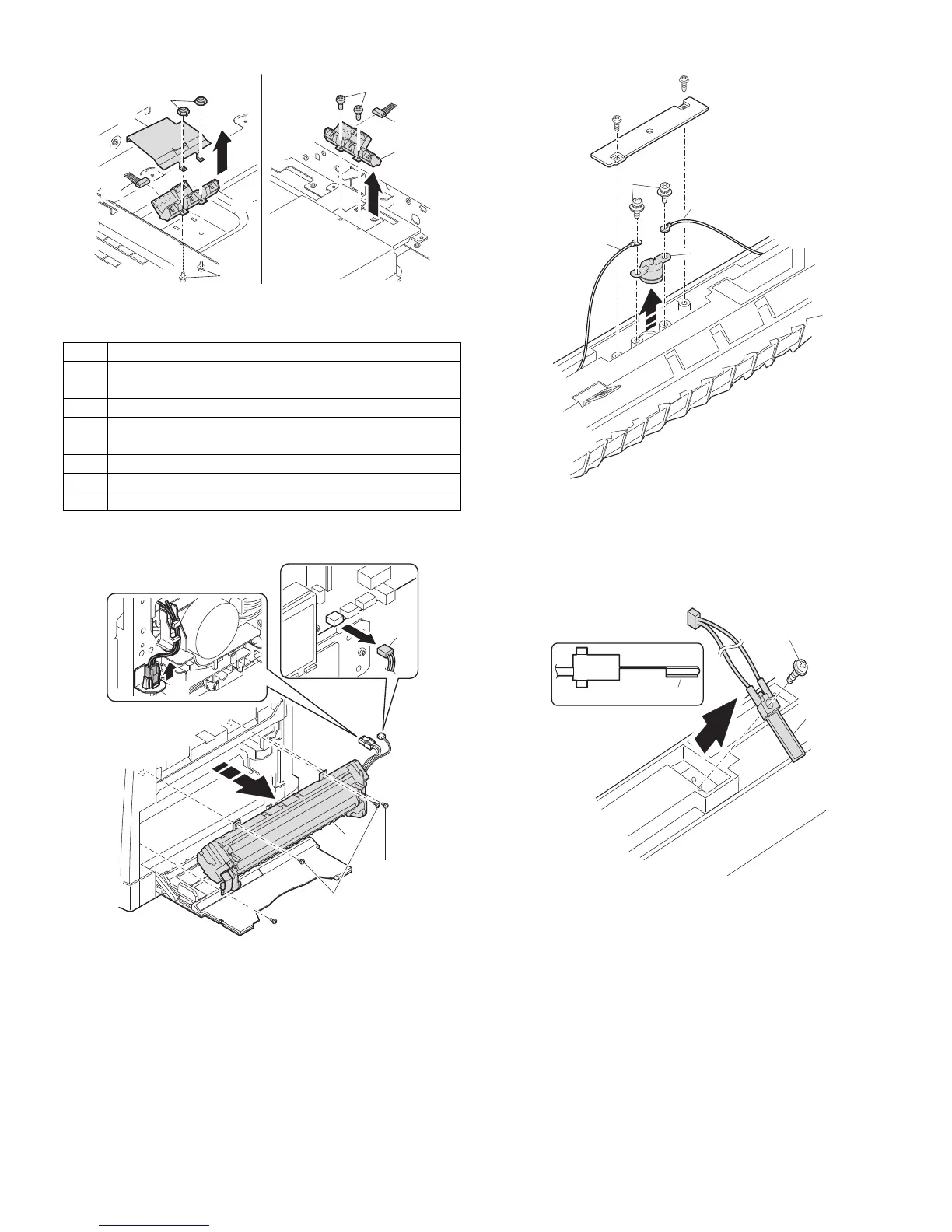

3.Fusing section
A.Fusing unit removal
B.Thermostat
C.Thermistor
Installation: Install in direction that the sponge side (A) of the thermistor
comes in contact with heat roller.
Check that the thermistor is in contact with the upper heat
roller.
No. Contents
A Fusing unit
B Thermostat
C Thermistor
D Heater lamp
E Upper heat roller
F Separation pawl
G Lower heat roller
H Separation pawl
(2)
(2)
(2)
(3)
(1)
(1)
(3)
(4)
(3)
(2)
M3×12
(2)
M3×8
(2)
M4×8
(1)
(1)
(1)
(2)
(3)
(2)
(1)
(2)
(A)
