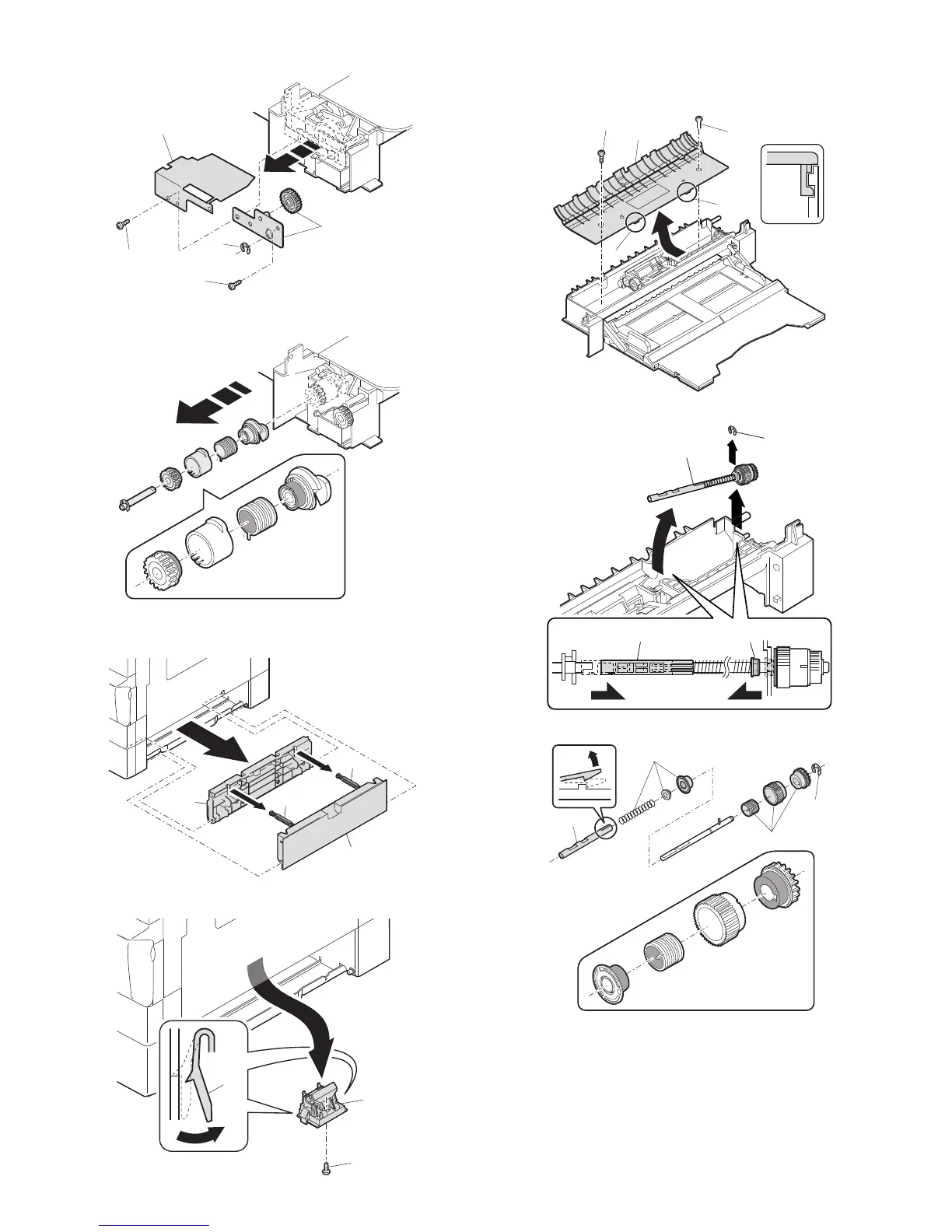

MX-M200D DISASSEMBLY AND ASSEMBLY 11-12
D. Bypass tray transport clutch
Apply grease (FG-40H) (UKOG-0004QSZZ).
E.Pressure plate unit
F. Bypass tray paper feed clutch
Note: Push the lever at the right edge of the multi frame cover to the
right upper side and remove it.
(1)
(2)
(3)
(4)
(5)
Apply grease (FG-40H)
to the gray area
(UKOG-0004QSZZ).
(1)
(2)
(2)
(3)
(2)
(1)
(3)
(1)
(1)
(2)
A
A
A
(2)
(2)
(3)
(1)
(1)
(2)
(3)
(4)
Apply grease (FG-40H)
to the gray area
(UKOG-0004QSZZ).
