XL-1700/1700C
– 2 –
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the following
safety checks.
1. Inspect all lead dress to make certain that leads are not pinched
or that hardware is not lodged between the chassis and other metal
parts in the audio product.
2. Inspect all protective devices such as insulating materials, cabinet,
terminal board, adjustment and compartment covers or shields,
mechanical insulators etc.
3. To be sure that no shock hazard exists, check for leakage current
in the following manner.
* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled
by a 0.15µF capacitor in series with all exposed metal cabinet
parts and a known earth ground, such as conduit or electrical
ground connected to earth ground.
* Use a VTVM or VOM with 1000 ohm per volt, or higher, sensitivity
to measure the AC voltage drop across the resistor (See diagram).
* Connect the resistor connection to all exposed metal parts having
a return path to the chassis (antenna, metal cabinet, screw heads,
knobs and control shafts, escutcheon, etc.) and measure the AC
voltage drop across the resistor.
All check must be repeated with the AC line cord plug connection
reversed.
Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp. AC.)
or more is excessive and indicates a potential shock hazard which
must be corrected before returning the audio product to the owner.

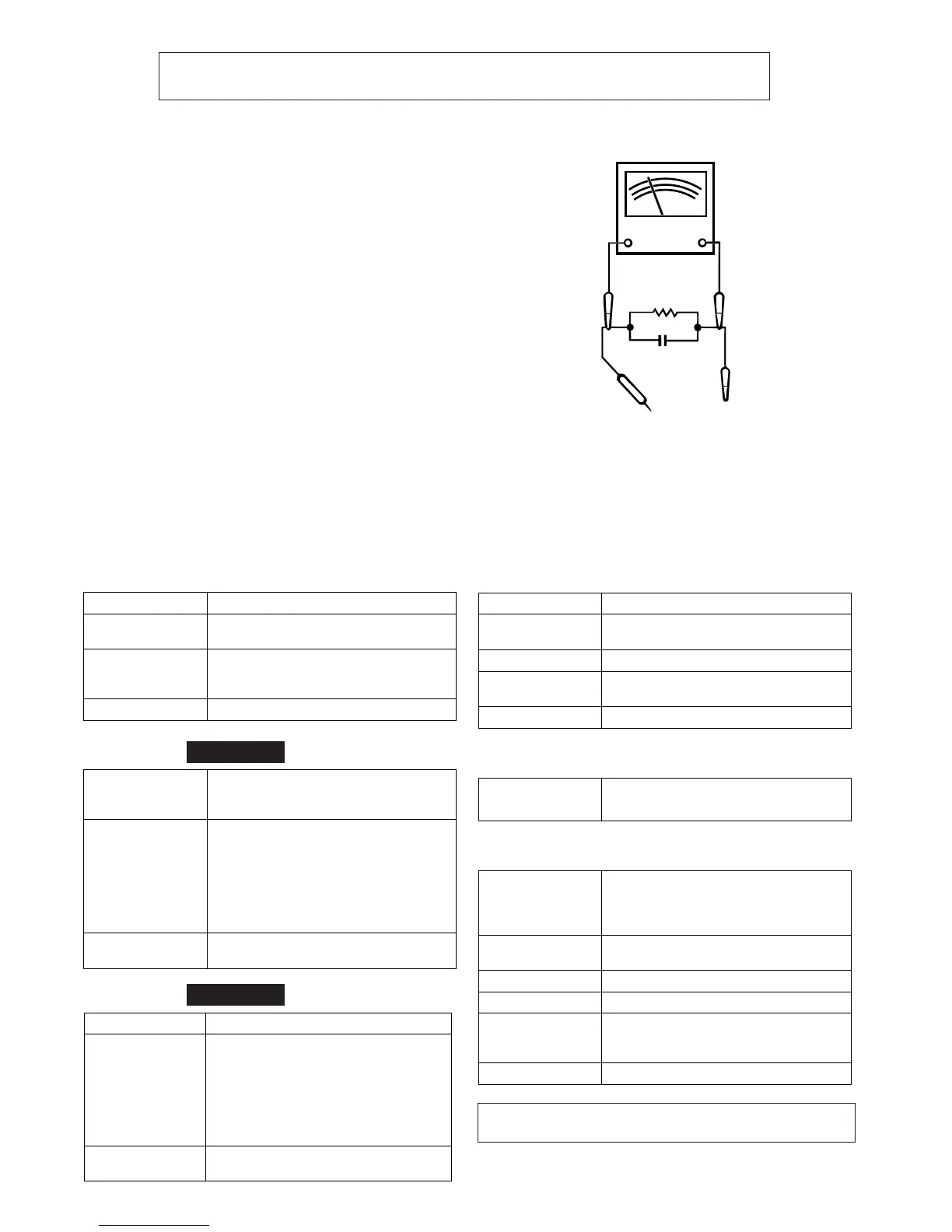

TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
TEST PROBE
0.15 µ F
1.5k ohms
10W
VTVM
AC SCALE
SPECIFICATIONS
Specifications for this model are subject to change without
prior notice.
■
General
■
Amplifier
■
CD player
■
Tuner
■
Speaker
Power source
AC 120 V, 60 Hz
Power consump-
tion
35 W
Dimensions
Width: 8-15/16" (226 mm)
Height: 5-3/4" (145 mm)
Depth: 11-1/2" (292 mm)
Weight
6.2 lbs. (2.8 kg)
Output power
8 watts minimum RMS per channel into 8
ohms from 100 Hz to 20 kHz, 10% total har-
monic distortion
Output terminals
Speakers: 8 ohms
Headphones: 16 - 50 ohms (recommended:
32 ohms)
CD digital output (optical)
Subwoofer (Audio signal): 500 mV/47 k
ohms
Input terminals
Video/Auxiliary (audio signal): 500 mV/47 k
ohms
Type
Compact disc player
Signal readout
Non-contact, 3-beam semiconductor laser
pickup
D/A converter
1-bit D/A converter
Frequency re-
sponse
20 - 20,000 Hz
Dynamic range
90 dB (1 kHz)
Frequency range
FM: 87.5 - 108 MHz
AM: 530 - 1,720 kHz
Type
2-way type speaker system
Tweeter
4" (10 cm) Woofer
Maximum input
power
20 W
Rated input power
10 W
Impedance
8 ohms
Dimensions
Width: 5-3/4" (146 mm)
Height: 10-9/16" (267 mm)
Depth: 7-3/8" (186 mm)
Weight
3.5 lbs. (1.6 kg)/each
■
Amplifier
Output power
RMS: 20 W (10 W + 10 W) (10 % T.H.D.)
Output terminals
Speakers: 8 ohms
Headphones: 16 - 50 ohms (recommended:
32 ohms)
CD digital output (optical)
Subwoofer (Audio signal): 500 mV/47 k
ohms
Input terminals
Video/Auxiliary (audio signal): 500 mV/47 k
ohms
XL-1700
XL-1700C
