XL-1700/1700C
– 8 –

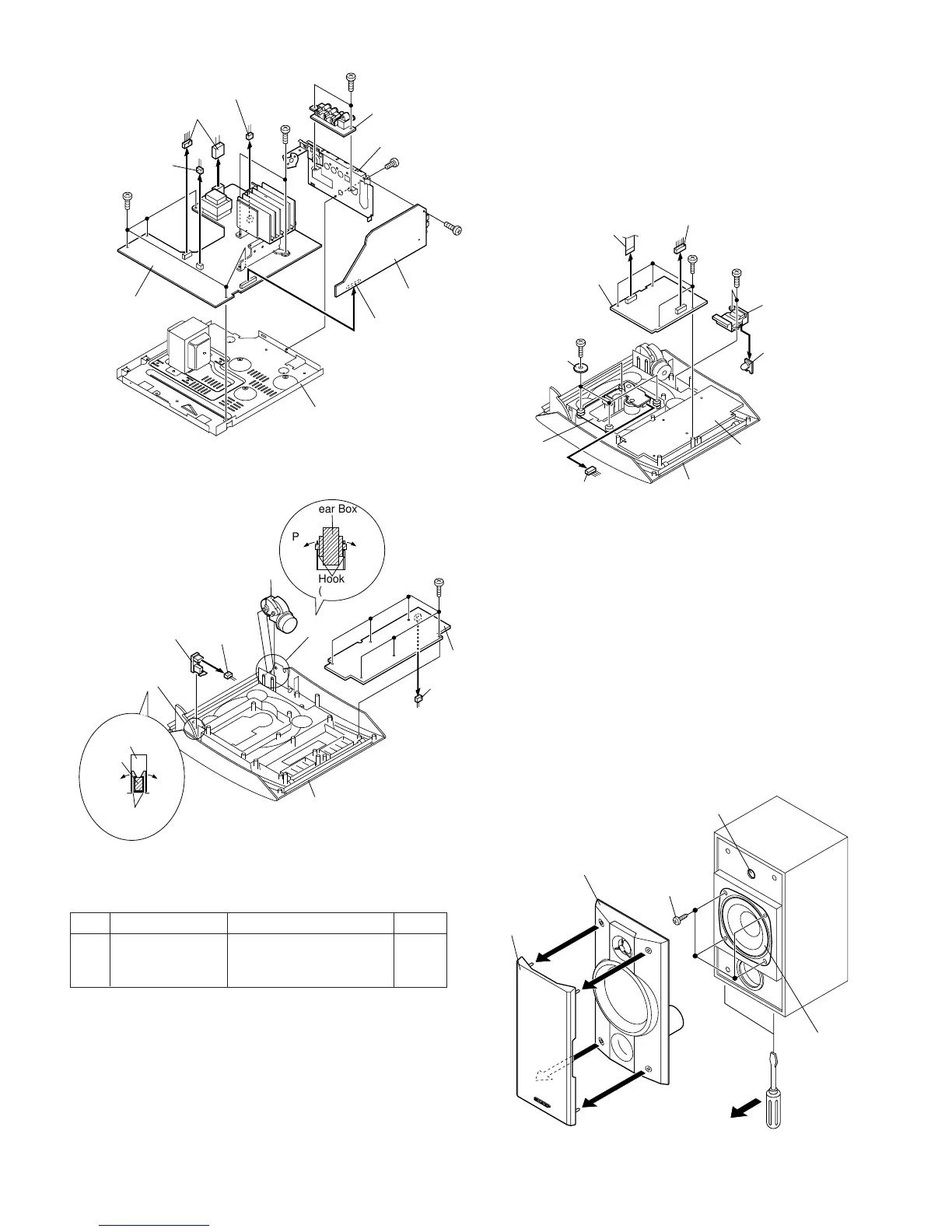

Figure 8-1
Terminal PWB
Rear Panel
Main PWB
Tuner PWB
(G1) x5
ø3 x8mm
(E1) x2
ø3 x10mm
(G2) x2
ø3 x10mm
(G3) x2
(E2) x1
(E2) x1
(D1) x1
ø3 x10mm
(D2) x1
(F1) x1
ø3 x6mm
Chassis
Figure 8-3
Display PWB
CD
Mechanism
Top Cabinet
Holder PWB
CD PWB
LED PWB
Holder,
Indicator Panel,CD
(J1) x4
ø2.5 x10mm
(H1) x1
(H2) x1
(H2) x1
(H3) x4
ø2.5 x10mm
(K1) x2
ø2.5 x10mm
Display PWB
Gear Box
Switch
PWB
Top Cabinet
(L2) x1
Hook
(L1) x2
Hook
(N1) x3
(M2) x1
(M1) x6
ø2.5 x10mm
Switch
PWB
Switch
Hook
(L1) x2
Pull
Pull

Pull
Pull


,

,

,

Gear Box
Hook
(N1) x3
( A3 ) x4
ø3.5 x12mm
Tweeter
Net Frame
( A1 ) x1
Front Panel
( A2 ) x1
Woofer
Screwdriver
Figure 8-2
1 Speaker 1. Net Frame ........... (A1) x1 8-4
2. Front Panel ......... (A2) x1
3. Screw .................. (A3) x4
STEP REMOVAL
PROCEDURE
FIGURE
Figure 8-4
